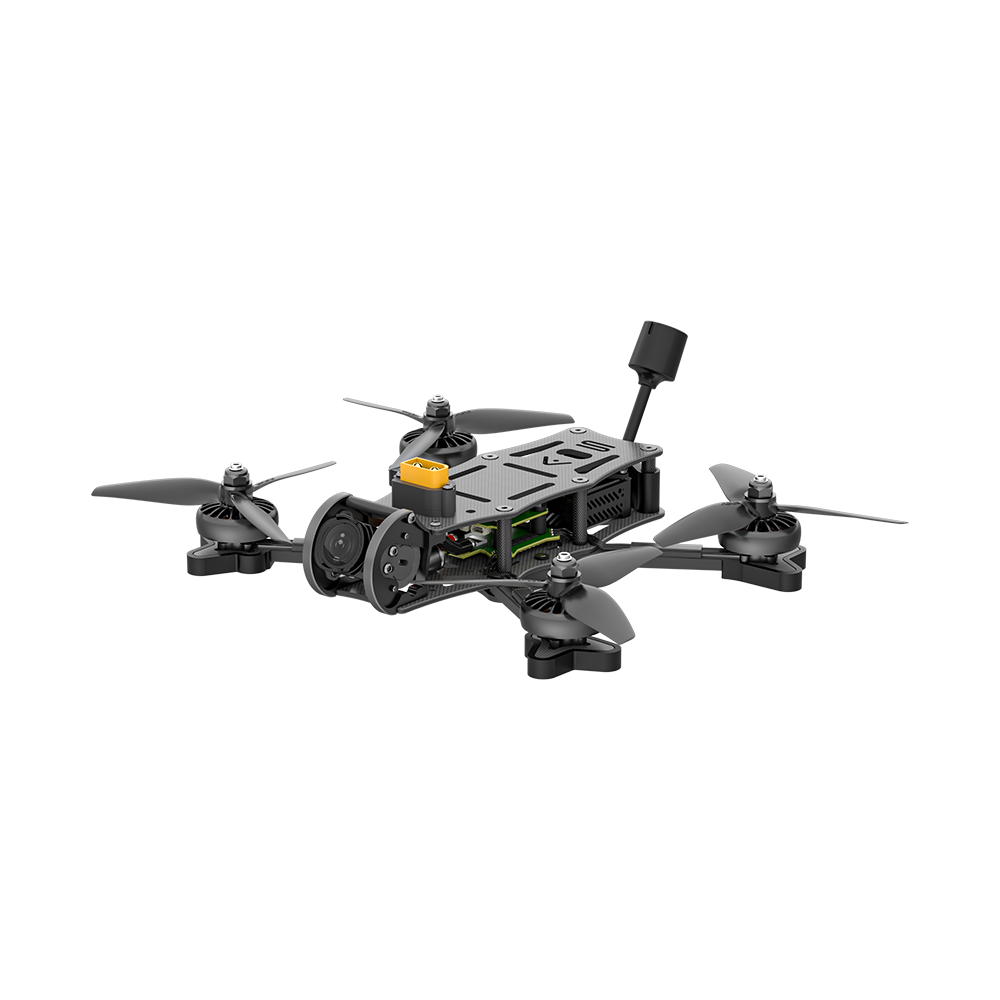

AOS 4 V5 6S HD

In the Box

• AOS 4 V5

  x 1

• DJI O3 Air Unit Antenna

  x 1

• HQ 4*3*3 Propeller

  x 2 Pairs

• Battery strap

  x 2

Description

Lose the GoPro and experience an unparalleled mix of speed. power. and agility. Designed with cutting-edge patent pending technology and premium materials. here’s why the iFlight AOS 4 V5 BNF is the ultimate choice for drone enthusiasts.

Find the ultimate combination of speed. power. and agility. Designed to deliver the ultimate in performance. durability. and customization in a smaller form factor. it’s the perfect choice for professionals. enthusiasts. and beginners alike. Upgrade to the iFlight AOS 4 V5 BNF and take your FPV experience to the next level.

Highlights

Easy to use

The iFlight AOS 4 V5 BNF is designed to be the easiest and most user-friendly 4” FPV frame. It’s perfect for beginners and experts alike with plenty of space. easy access to every stack screw and even fewer parts than the very user-friendly AOS 4 EVO!

Advanced Patent Pending Anti-Vibration Technology

Say goodbye to unwanted vibrations that can hinder your drone’s performance. The iFlight AOS 4 V5 BNF boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack. reducing vibrations without compromising filter delay. This groundbreaking feature enables you to run lower filtering. dial in higher PID gains. and achieve unparalleled flight performance.

Durable and Versatile 7075 Aluminium Camera Cage

The iFlight AOS 4 V5 BNF is equipped with an ultra-durable 7075 Aluminium Camera Cage. It includes a soft mount specifically designed for the integrated DJI O3 camera. with full support for ND filters. If you want to use a different FPV system. the frame also allows for hard mounting of all popular camera systems including Analog. WS Avatar. HDZero and DJI.

Immersive 155° FPV Experience

Immerse yourself in the action with a full 155-degree field of view (FOV) for the FPV camera with no props in view. This expansive view is perfect for DJI O3 and guarantees an immersive flight experience for both professionals and enthusiasts.

Reinforced arm and stack mounting

Say goodbye to stripping threads! The arm mounts on the iFlight AOS 4 V5 BNF are reinforced with steel press-nuts for enhanced durability.

Flexible Battery Mounting

Experiment with different battery configurations by choosing between lengthwise or toilet tank battery mounting options. This flexibility allows you to optimize your drone’s balance and performance based on your flying style and preferences.

Specificaiton

Product Name: AOS 4 V5 O3 6S HD

FC: BLITZ Mini F7 Flight Controller

ESC: BLITZ Mini E55S 4-IN-1 ESC

Video Transmission: DJI O3 Air Unit

Frame: 180mm wheelbase

Motor: XING 2205 2450KV motors

Prop: HQ 4*3*3 propellers

Weight: 299g (Without Battery)

Takeoff Weight: Approx. 482±5g (incl. 6S 1050mAh）

Dimensions (L×W×H): 145.5*106*31.5mm

Max Speed: 170km/h

Maximum Takeoff Altitude: 7000m

Max Hover Time: Approx. 8mins with 6S Lipo 1050mAh battery

Max Wind Speed Resistance: Level 5

Operating Temperature Range: -10° to 40° C

Antennas: DJI O3 Air Unit Dual-Band Antenna

GNSS: N/A

Video Transmission

Product Name: DJI O3 Air Unit

Communication Bandwidth: Max 40 MHz

Communication Frequency：2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC). 2 km (CE). 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

Packing List

1 x AOS 4 V5 6S O3 HD BNF

2 x Battery pads

2 x Prop(Pairs)

Important

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

Note

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1) Any military combat purpose or military combat related use;

(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.

If Party A has violated applicable export control or economic sanctions laws and regulations. Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.

For more specific content. please check: https://shop.iflight.com/Export-Policy-info
