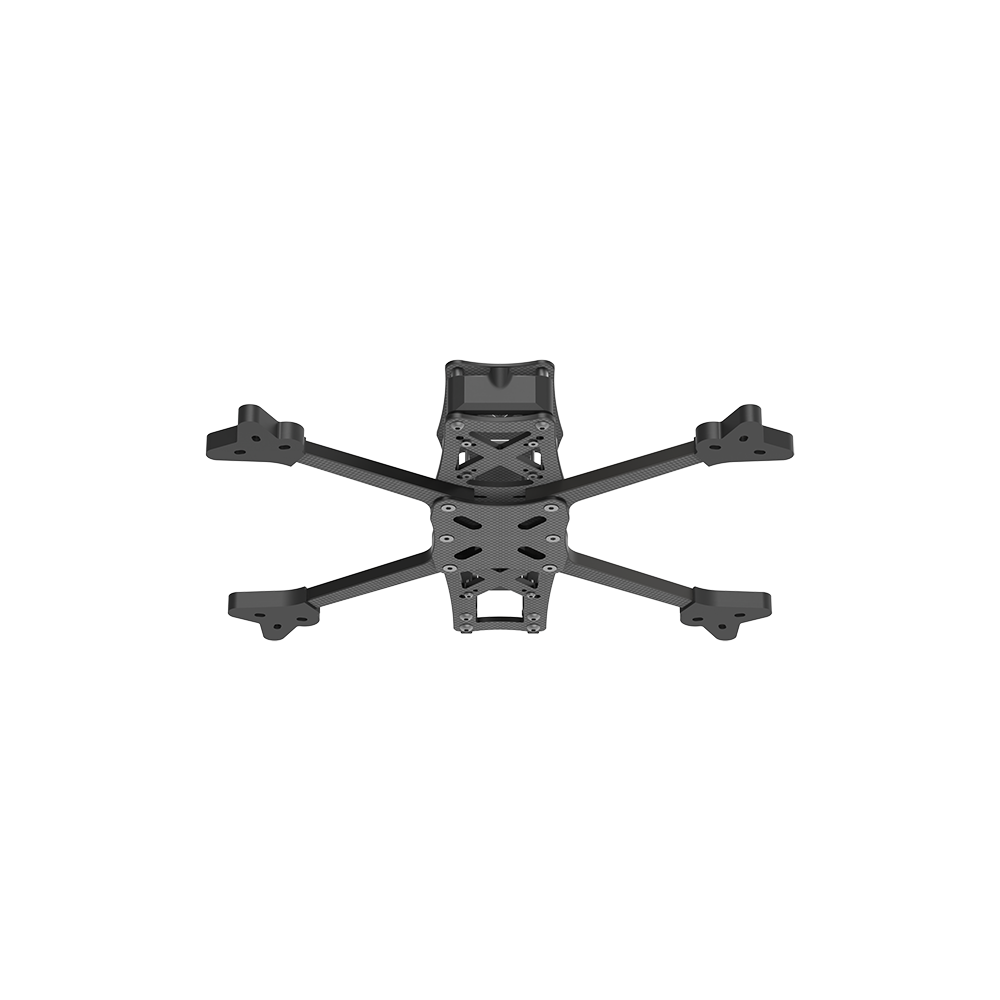

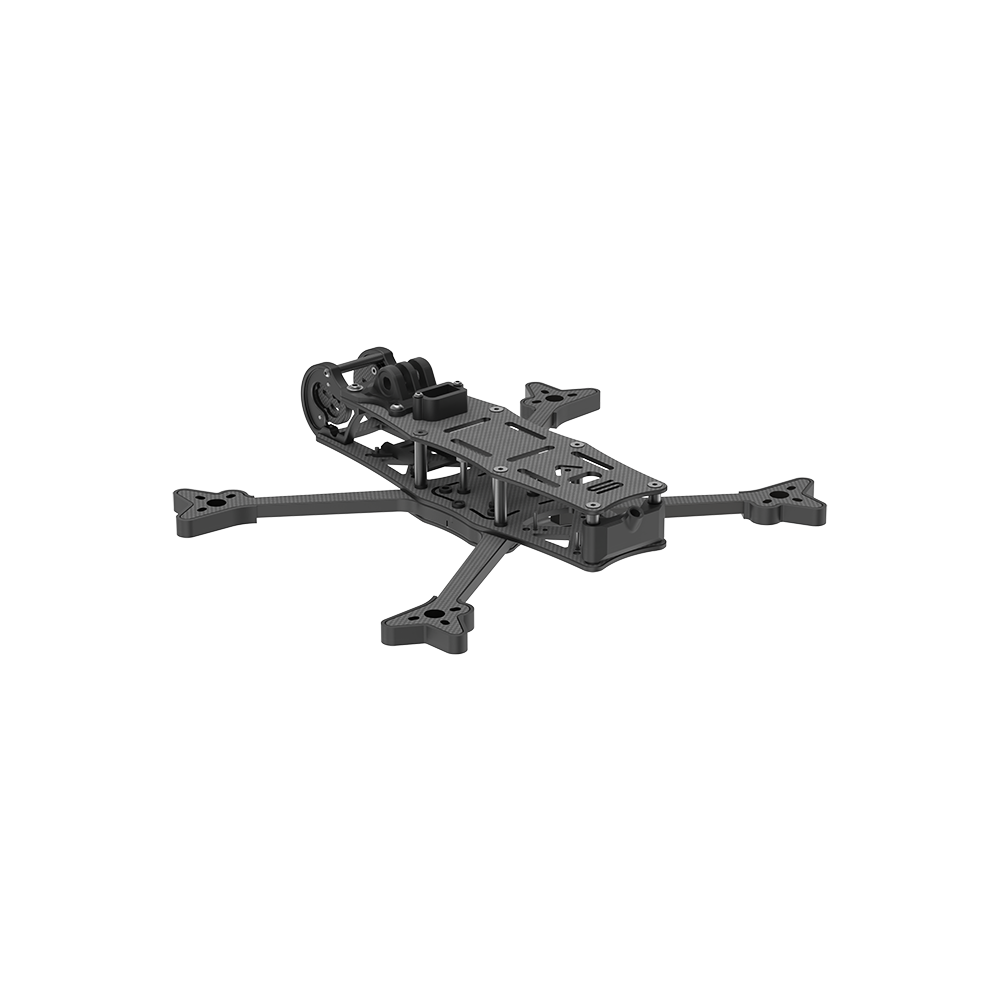

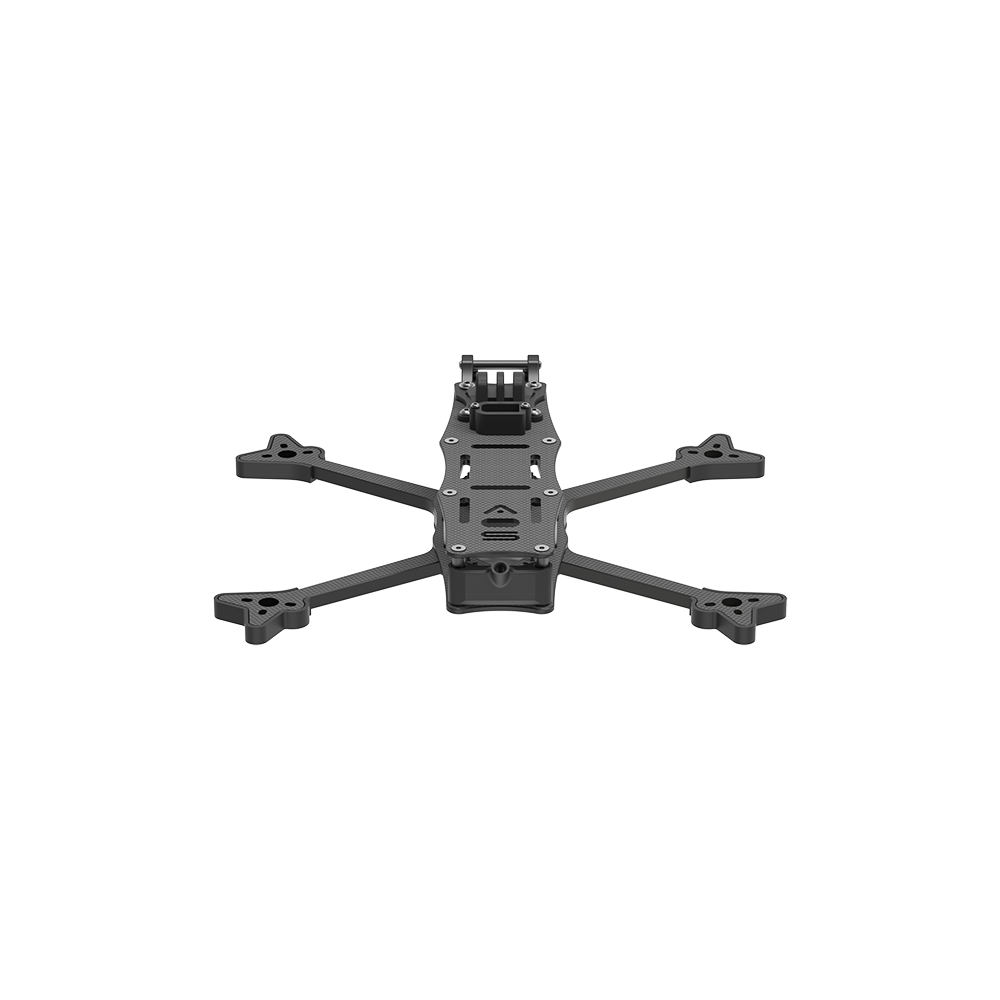

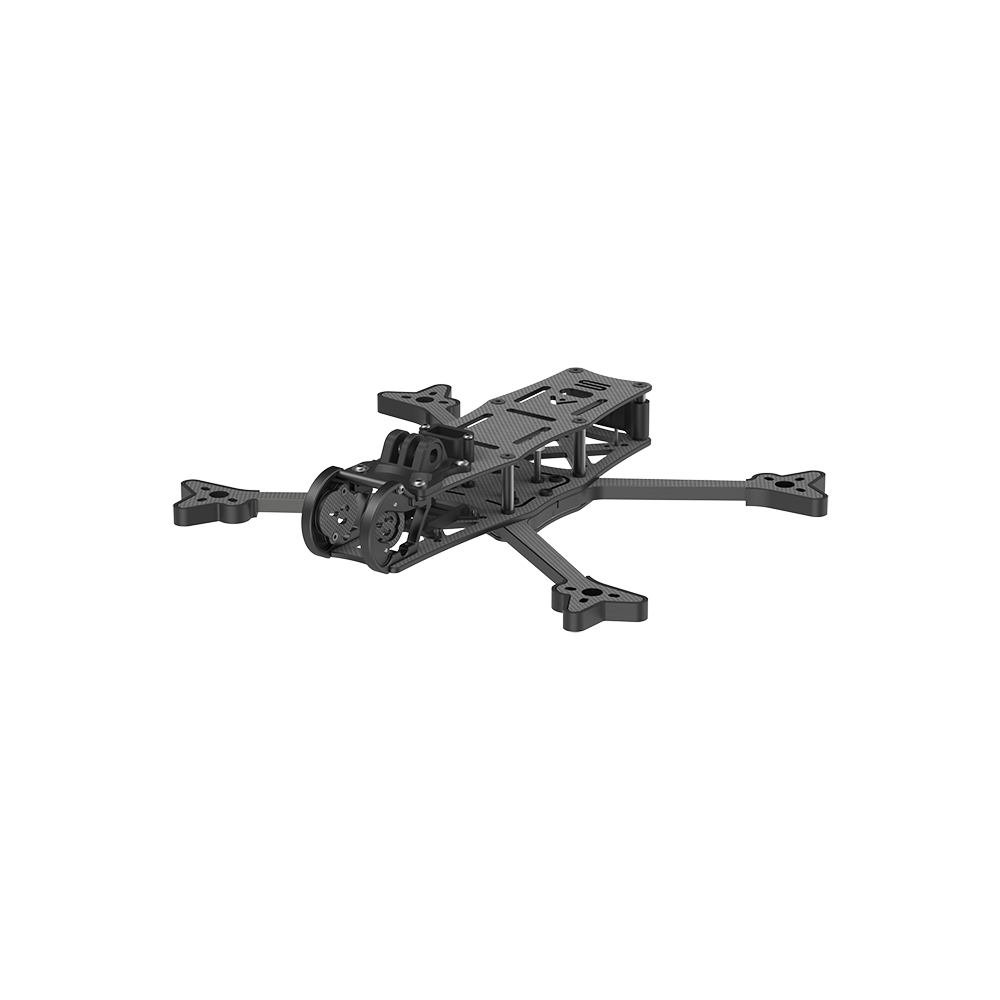

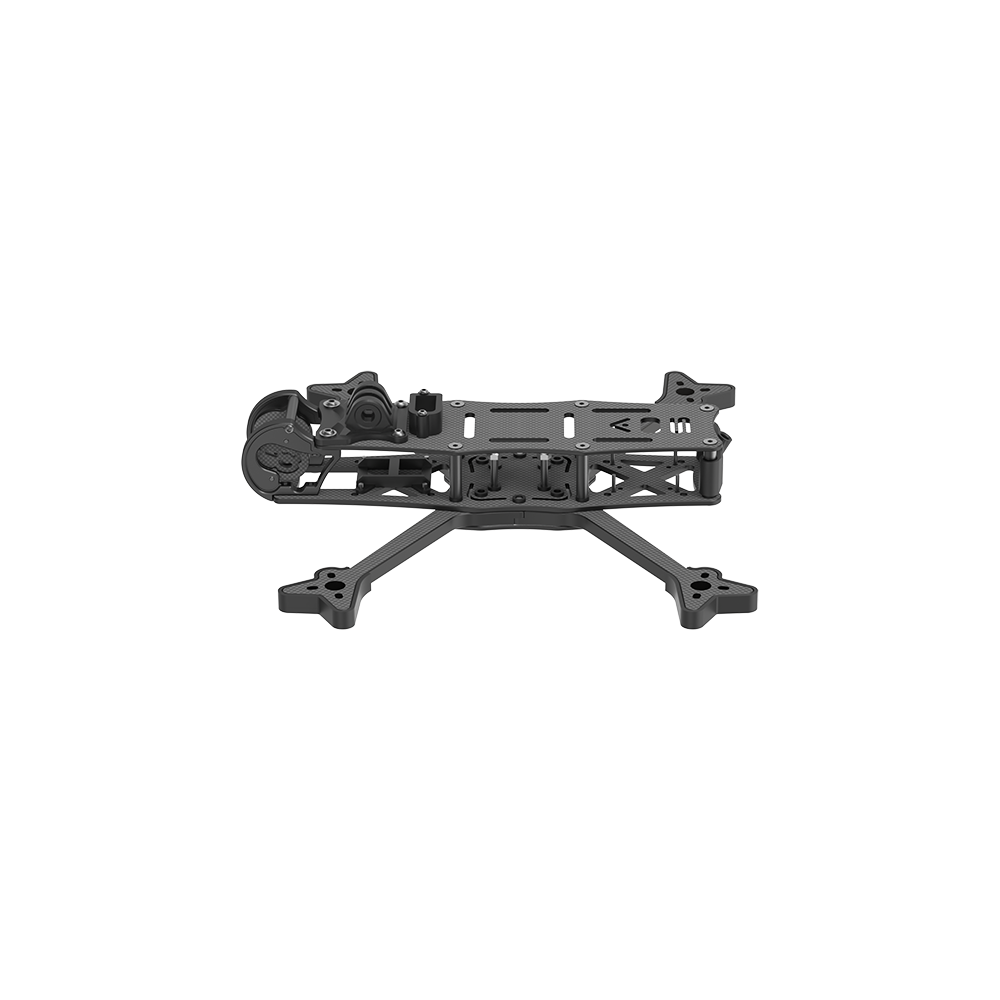

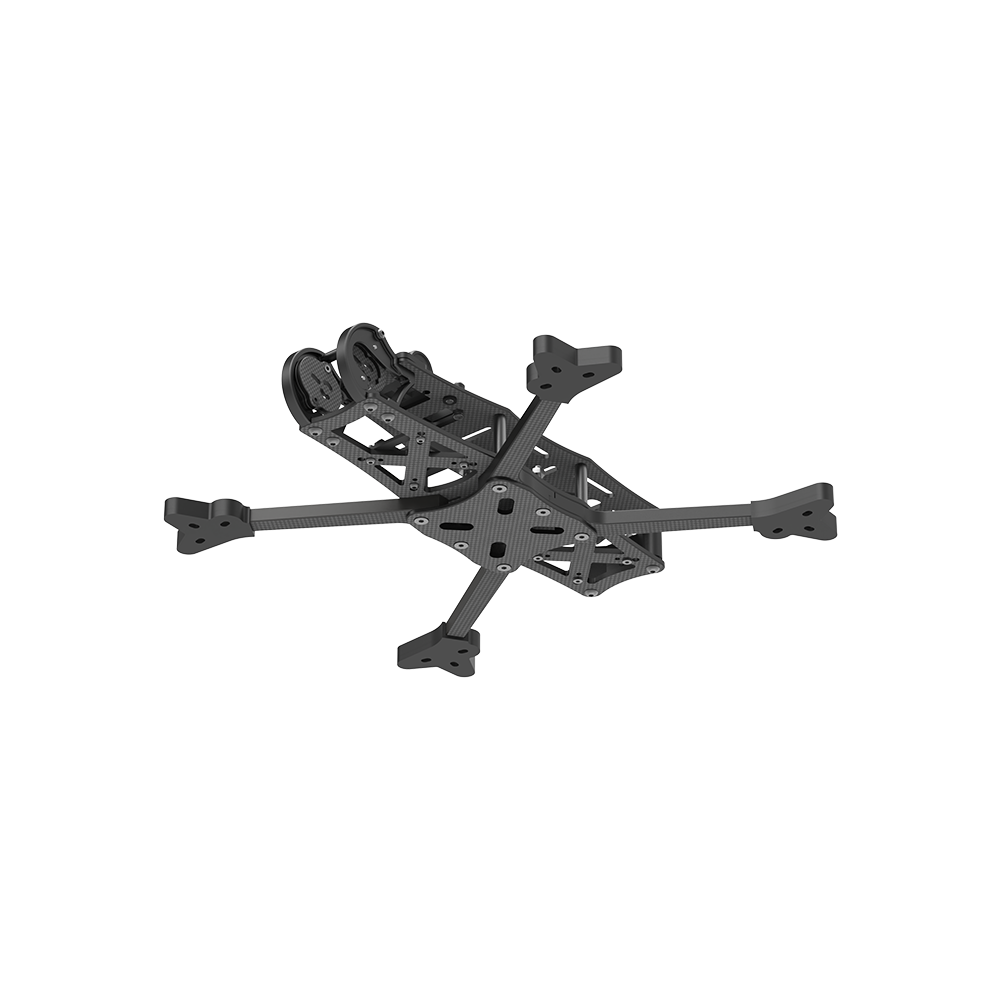

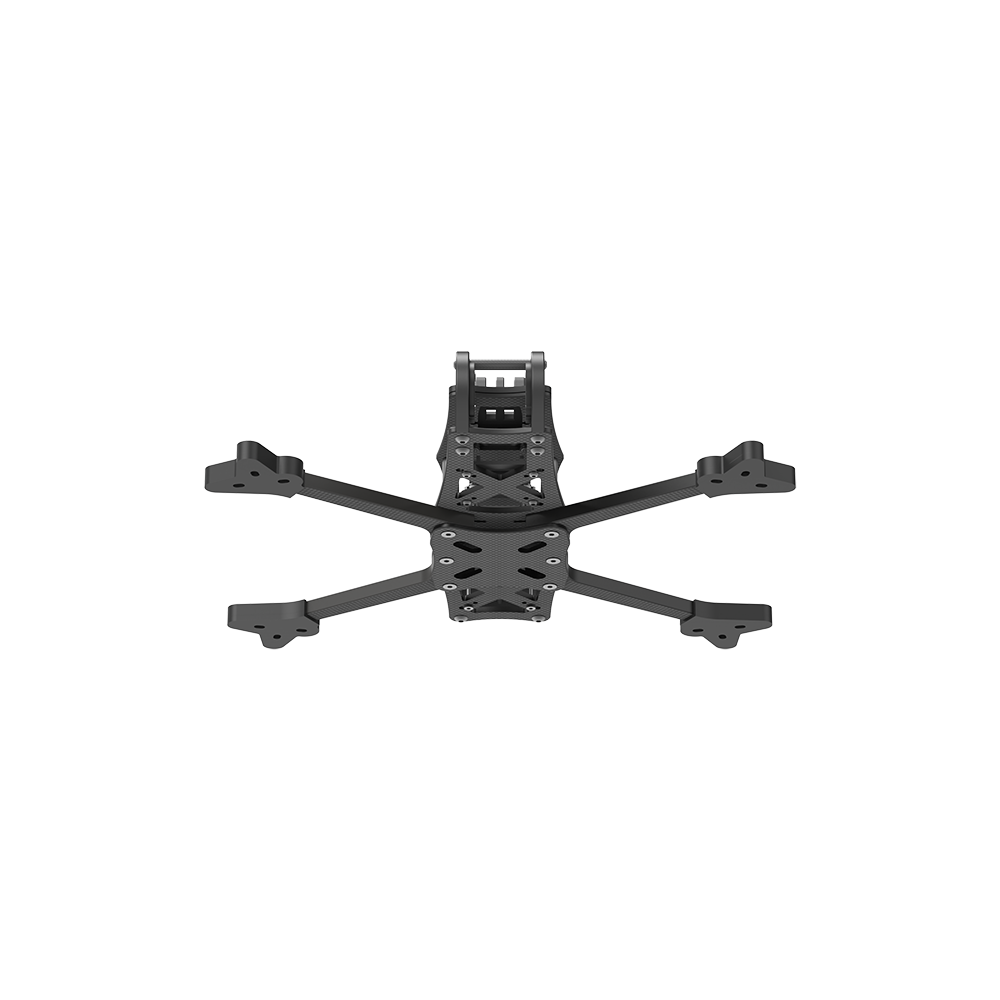

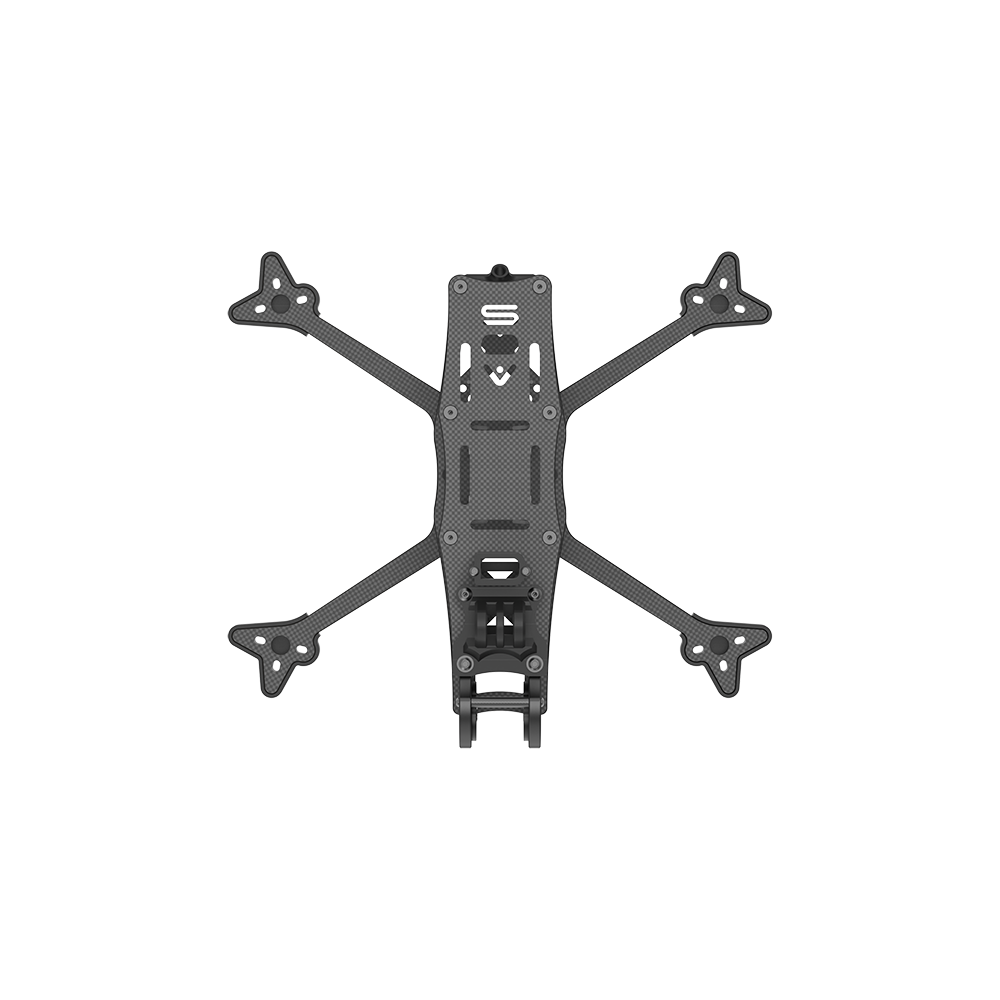

AOS 5 V5 Frame Kit

Description

Discover the future of 5″ FPV with the AOS 5 V5. engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials. here’s why the AOS 5 V5 is the ultimate choice for drone enthusiasts.

Changelog

Mar. 11. 2025: Frame Kit updated to be compatible with DJI O4 Air Unit and DJI O4 Air Unit Pro.

Features

Supports up to 5.2″ Props

AOS X-Cell Anti-Vibration Technology

Three 30.5×30.5. 25.5×25.5. or 20×20 mm stacks

155° FOV no props in view

Fully DJI O3 compatible (soft mount + ND filters)

Supports 19-20mm cameras (hard or soft mounted)

Reinforced 7075 Aluminium Camera Cage

Supports Lengthwise or Toilet Tank battery mounting

⌀16 – ⌀19mm motor mounting (supports all standard 5″ motors)

28x28mm M3 GoPro Mounting Pattern

32mm Rear Standoff Spacing (compatible with all AOS 5 antenna mounts)

Specifications

Product Name: AOS 5 V5 Frame Kit

Frame wheelbase: 228mm

Frame Dimension: L180*W140*H34 mm

Arm Thickness: 6mm

Top Plate Thickness: 2mm

Bottom Plate Thickness: 2mm

Upper Plate Thickness: 2.5mm

Max Flight Stack Height: 20mm

Max VTX Height: 20mm

Motor Mounting: 19×19-φ3mm/16×16-φ3mm

Flight Stack Mounting: 20*20 Φ3mm / 25.5*25.5 Φ2mm / 30.5*30.5 Φ3mm

VTX Mounting: 20*20 ⌀2mm / 25.5*25.5 Φ2mm/30.5*30.5 Φ3mm

Weight: 150g

Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX/DJI O4 Air Unit/DJI O4 Air Unit Pro

Packing List

1 x AOS 5 V5 Frame Kit

1 x TPU Parts

1 x Screw Bag

2 x Battery Strap

2 x Battery pads

Note

If you install the ESC in this frame kit and it does not fit properly due to the capacitor. please remove the capacitor on the ESC for normal installation and connect an extra capacitor (a 50V 470uf capacitor is recommended).

Due to manufacturing processes. the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
