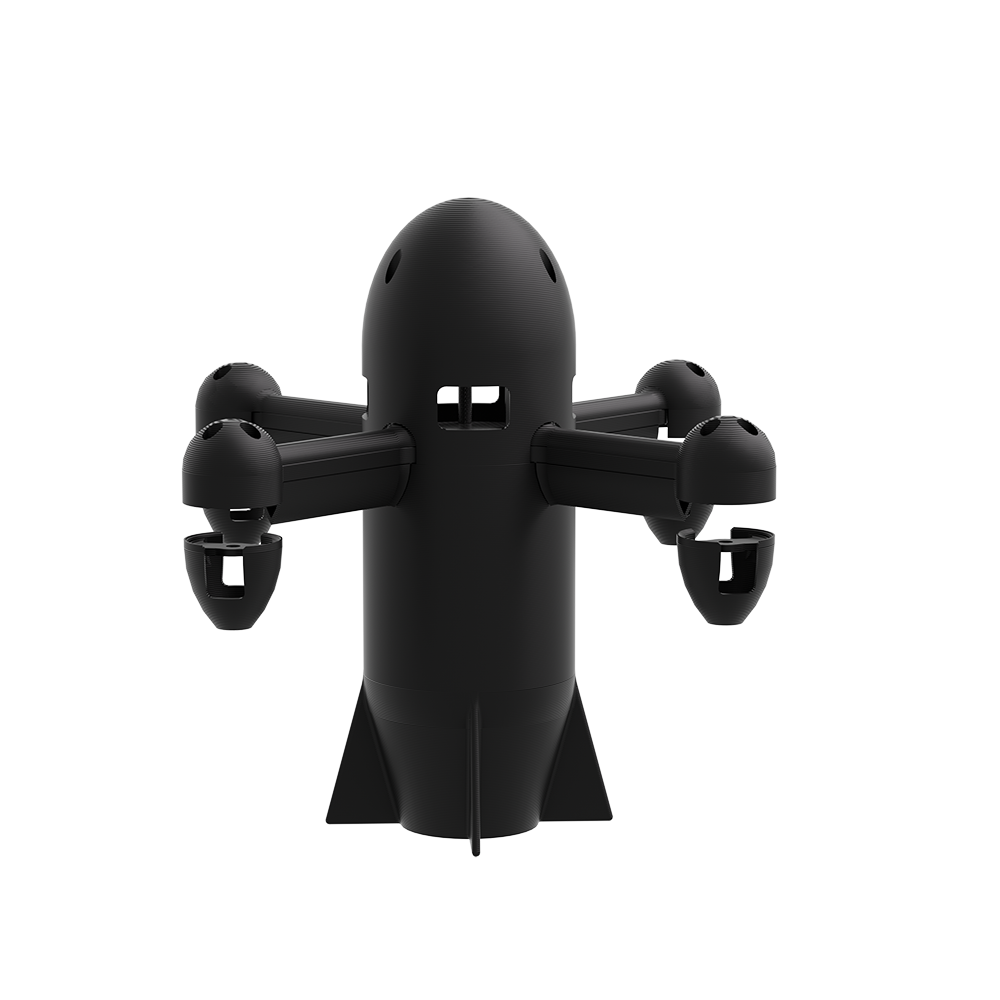

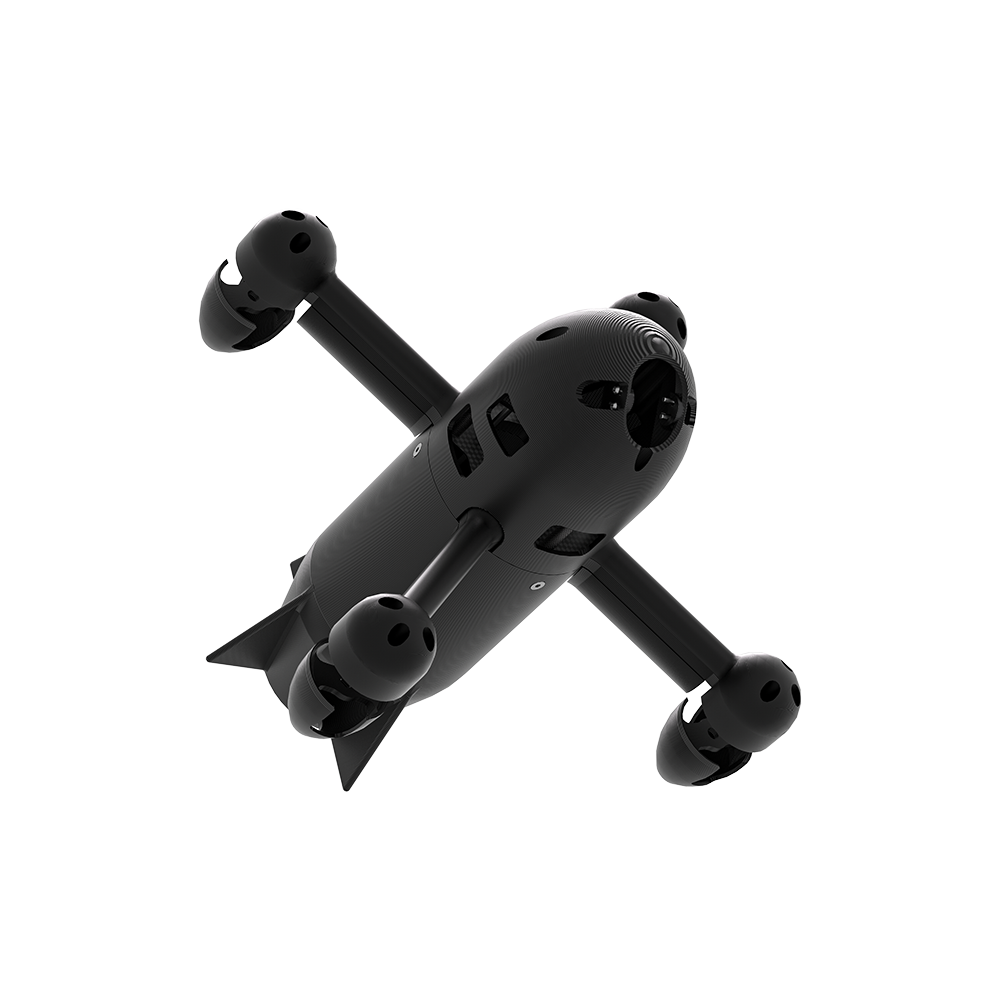

AOS HS5 Frame Kit

Description

The AOS HS5 is the ultimate in speed and precision. delivering lightning-fast acceleration and blistering top speeds over 200 mph (320 kph) to capture every moment with breathtaking clarity.

Changelog

Feb. 13. 2025 : Frame Kit upgraded to be compatible with DJI O4 Pro Air Unit.

Features

Immersive 155° FPV Experience

Immerse yourself in the action with a full 155-degree field of view (FOV) for the FPV camera with no props in view. This expansive view is perfect for DJI O3 users and guarantees an immersive flight experience for both professionals and enthusiasts. ND filters for the O3 Camera are fully supported.

Easy to build

The AOS HS5 is designed to be an incredibly easy and user-friendly FPV frame to build. The front shell has space and a place for every component: your Camera. VTX. Receiver. Antennas. and Electronics stack are all contained inside.

Advanced Aerodynamic Design

The aerodynamic shells of the AOS HS5 have been optimized with the use of CFD tools to minimize the drag on the drone at high speeds. The tail fins add aerodynamic stability for smooth footage. Aerodynamic spinners for the props minimize the drag of the motors.

Easy to fly

A simple twist locks and unlocks the rear shell for easy battery swaps. Cutouts allow access to the USB ports of the VTX and flight controller as well as providing essential cooling for the ESC. The rear shell only contains the battery making it straightforward to change packs without disturbing any of your electronics.

Start slow with your usual 30 degree camera uptilt and work up to ultra high speed runs with up to 90 degrees camera uptilt.

More features:

Supports up to 6″ Props (Recommend APC 5.25” Props)

Supports 30.5 mm Electronics Stacks

Supports all popular Digital and Analog VTXs

155° FOV no props in view (at typical high speed camera uptilt)

Supports 19 – 20 mm cameras

Supports up to 1800mAh 6S Batteries (90 x 40 x 55 mm)

⌀16 – ⌀19mm motor mounting (2808 1950KV Recommended)

Specificaitons

Frame Product Name: AOS HS5 Frame Kit

Frame wheelbase: 233mm

Frame Dimension: L165*W165*H226 mm

Arm Thickness: 6mm

Top Plate Thickness: 2mm

Bottom Plate Thickness: 6mm

Max Flight Stack Height: 30mm

Max VTX Height: 30mm

Motor Mounting: 16×16-φ3mm/19×19-φ3mm

Flight Stack Mounting: 30*30/Φ3mm

VTX Mounting: 30*30/Φ3mm

Motor Mounting: 16*16 19*19-φ3mm/4

Weight: 226g

Compatible: BLITZ Whoop 1.6W VTX / DJI O3 Air Unit HD/ DJI O4 Pro Air Unit

Packing List

1 x AOS HS5 3D Printed Kit

1 X Top Plate

1 x Bottom Plate

1 x Screw Bag

2 x Battery pads

Note

Due to manufacturing processes. the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
