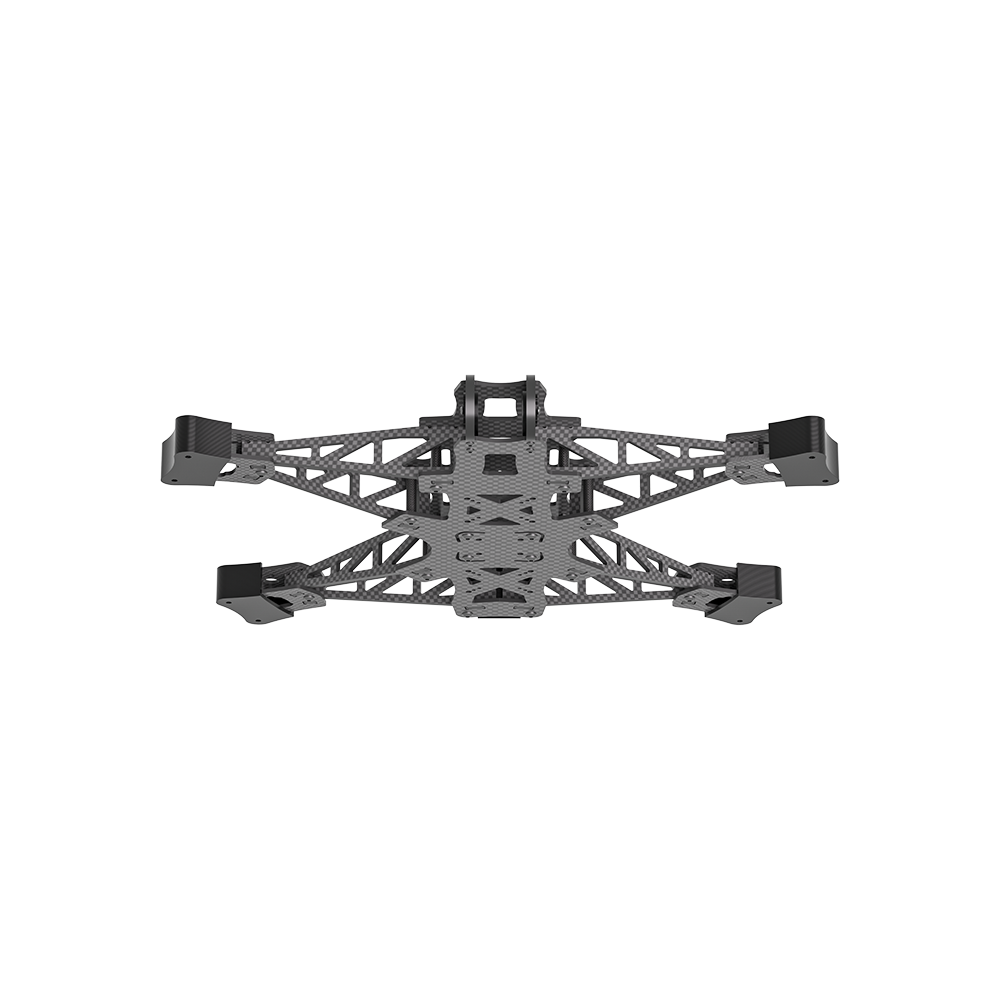

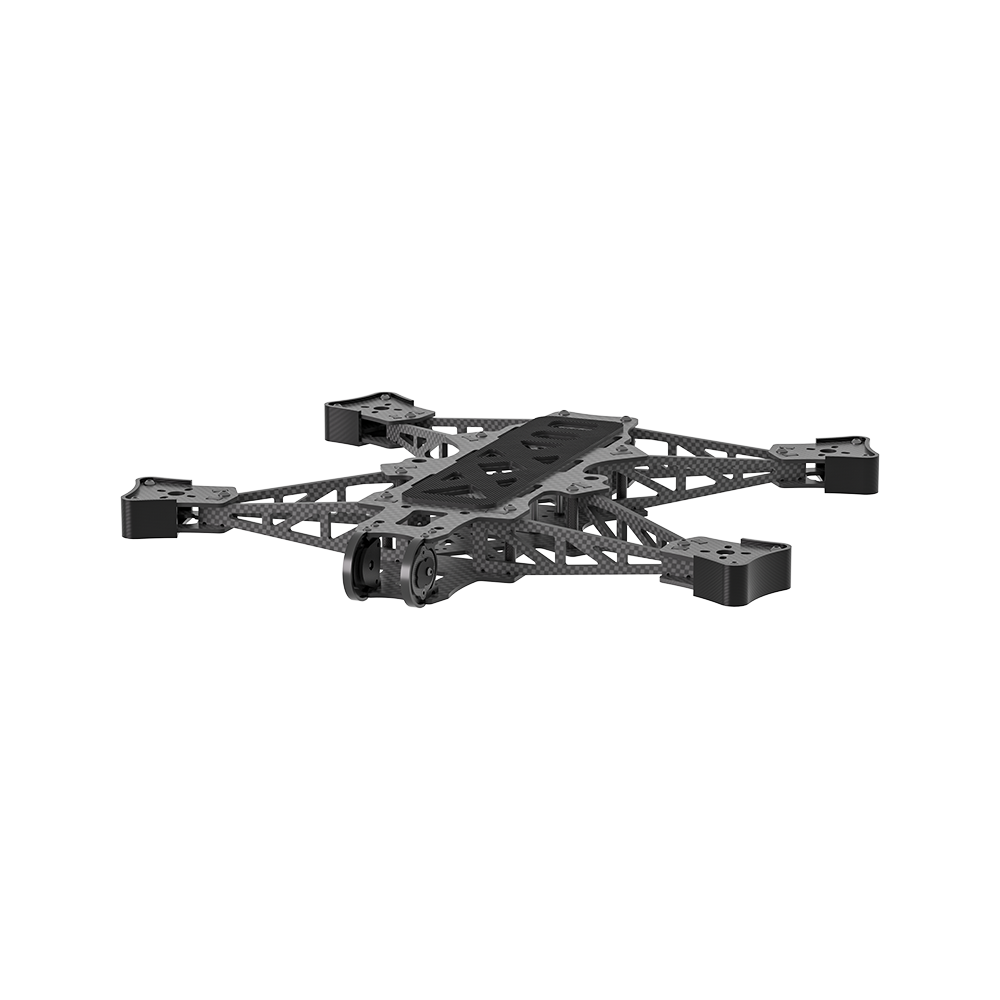

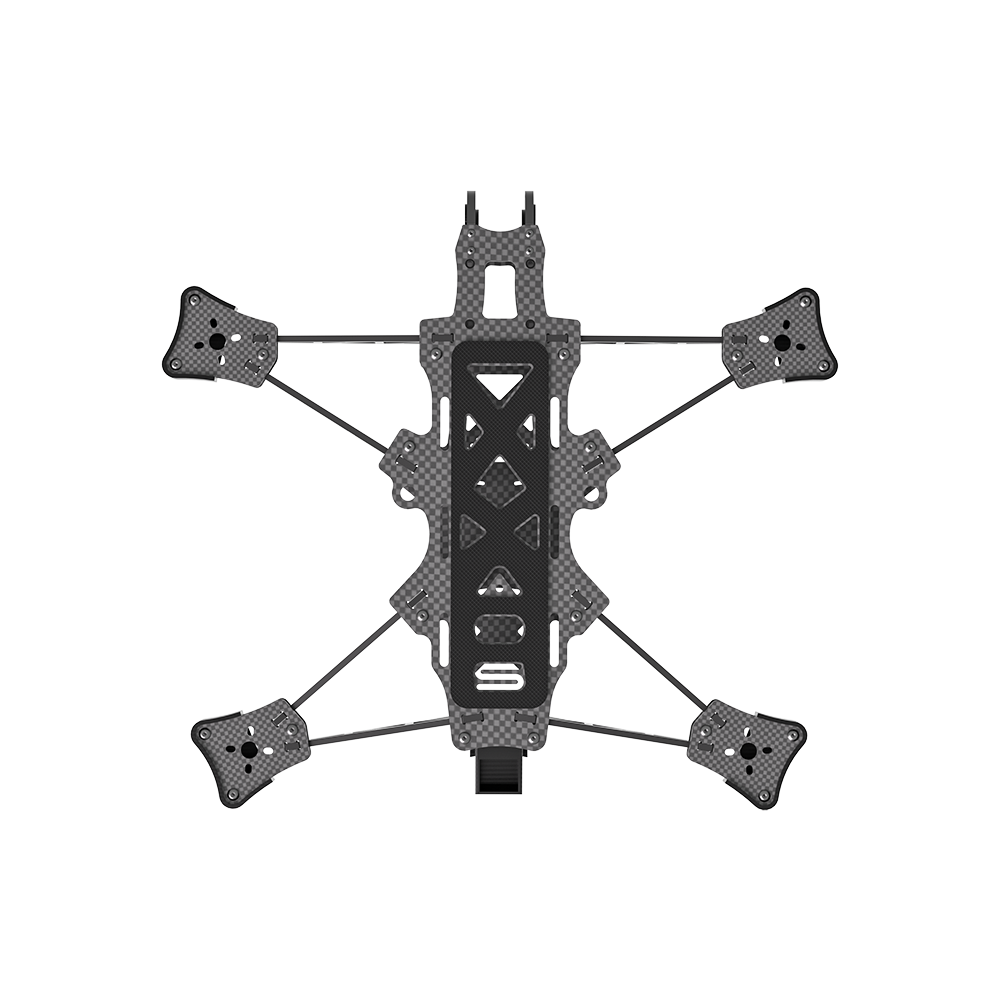

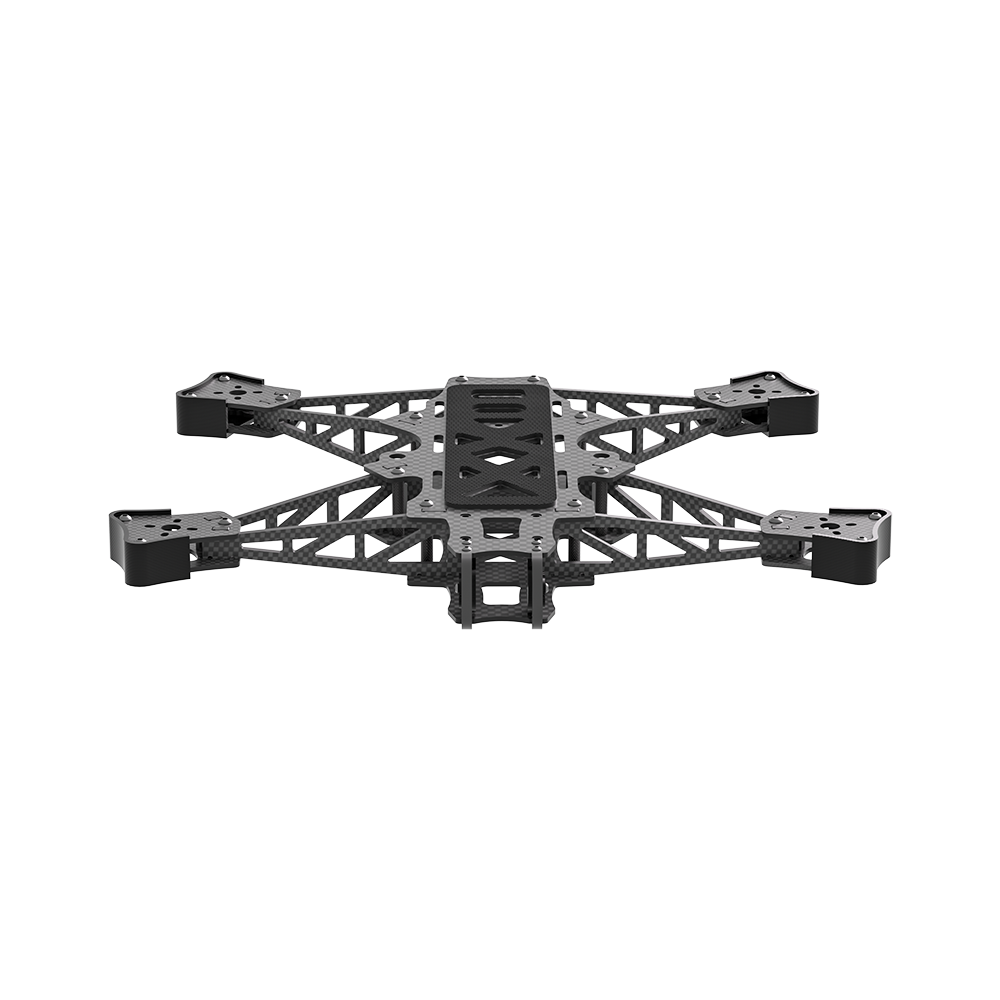

AOS UL7 V5 FPV Frame Kit

Description

Next generation of the AOS UL7. engineered to revolutionize your long range FPV experience.

Features

Ultra-Light. Ultra-Stiff Structure

The AOS UL7 V5 takes the groundbreaking arm design of the original model and refines it for greater durability and stiffness. This ensures smoother flights free from jello effects and tuning difficulties. delivering a 7” frame with stiffness that rivals most 5” designs.

Durable and Versatile 7075 Aluminum Camera Cage

Built to last. the 7075 aluminum camera cage accommodates all 19-20mm cameras. ensuring broad compatibility with various camera systems. It includes an integrated soft mount specifically designed for the DJI O3 and supports the O4 camera. complete with full ND filter support. For users with different FPV systems. the frame supports hard mounting for all popular camera options. including Analog. WS Avatar. HDZero. and DJI. Additionally. 14mm cameras are supported with a 3D printed mount (STL file available below).

Immersive 155° FPV Experience

Enjoy an expansive 155-degree field of view (FOV) for your FPV camera. free of props in view. This feature is ideal for DJI O3 and O4 users and provides an immersive flight experience. allowing you to capture stunning footage without obstruction.

Advanced Patent-Pending Anti-Vibration Technology

Achieve optimal flight performance with the new AOS X-Cell anti-vibration mount for the flight control stack. This innovative. patent-pending feature minimizes unwanted vibrations. allowing for reduced filtering. higher PID gains. and a more responsive flight experience.

Unrivaled Stack and VTX Compatibility

The AOS UL7 V5 offers three stack positions that support 30.5×30.5mm. 25.5×25.5mm. and 20x20mm mounting. ensuring complete compatibility with a wide range of flight controllers. ESCs. and other electronics. Whether using digital or analog FPV VTXs. the AOS UL7 V5 gives you the flexibility to build and customize your drone to your exact specifications.

Specificaitons

Product Name: AOS UL7 V5 Frame Kit

Frame wheelbase: 312mm

Frame Dimension: 232*190*29 mm

Arm Thickness: 3mm

Top Plate Thickness: 2mm

Bottom Plate Thickness: 2mm

Side Plate Thickness: 2mm

Max Flight Stack Height: 25mm

Max VTX Height: 25mm

Flight Stack Mounting: 20*20 Φ3mm / 30*30 Φ3mm

VTX Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm / 30*30 Φ3mm

Motor Mounting: 16x16mm/19x19mm -φ3

Weight: 230g

Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX

Packing List

1 x AOS UL7 V5 Frame Kit

1 x TPU Parts

1 x Screw Bag

Note

Due to manufacturing processes. the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
