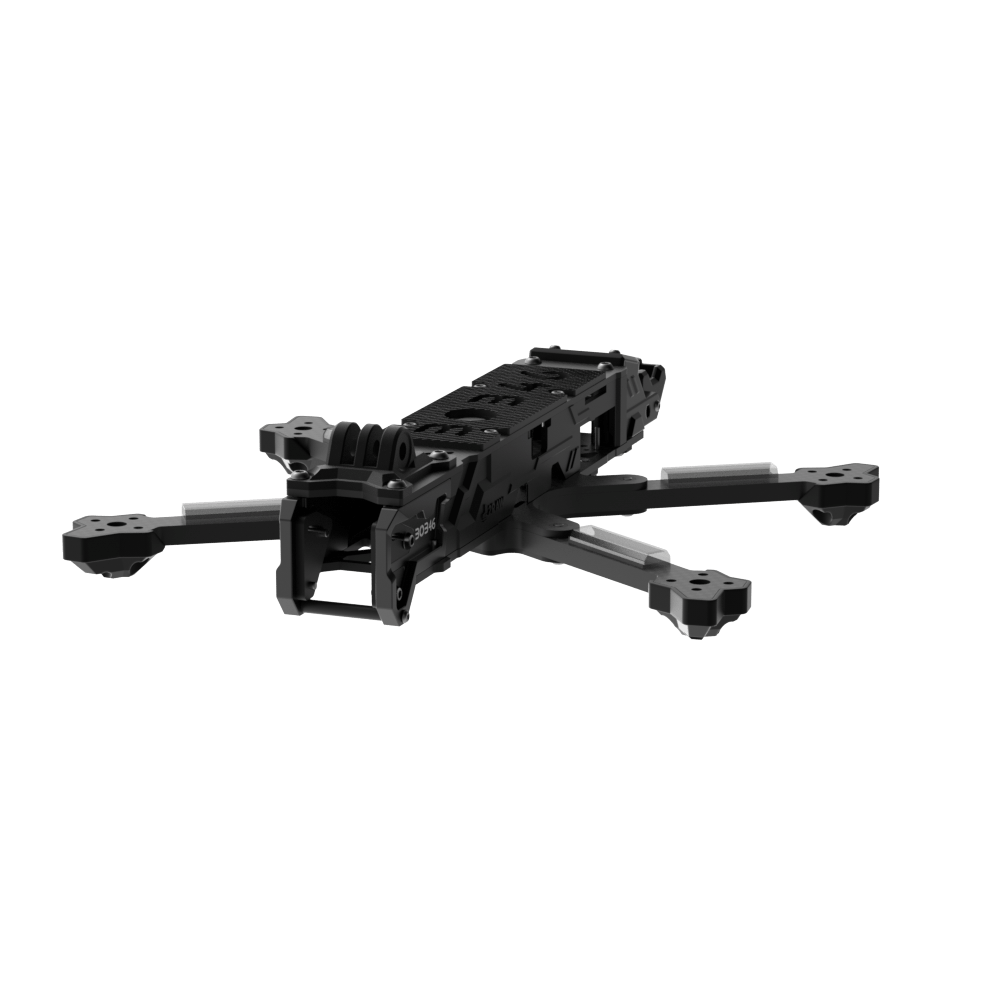

BOB46 Frame Kit

Description

The Bob46 is the best of both 4 and 6 inch. 2RAW’s newest addition to its lineup in the 5inch category. Targeted at content creators who want a drone that has balanced well rounded performance. The BOB46 doesn’t compromise in any areas it allows for the creator to have maximum options to be used in almost every scenario.

Features

Front facing and reversible Action camera mounting options.

Larger body length to allow for bigger batteries for more flight time.

Small size for easy transport for content creation in remote locations

Encased body to protect electronics from dirt and debris when filming

Specificaitons

Product Name：BOB46 O4 Frame Kit

Wheelbase: 226mm

Frame Dimension: L181*W135*H44 mm

Arm Thickness: 6mm

Bottom Plate Thickness: 1.5mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 2.5mm

Max Flight Stack Height: 22mm

Max VTX Height: 22mm

Flight Stack Mounting: 20*20/Φ3mm

VTX Mounting: 25.5*25.5/Φ2mm 20*20/Φ2mm

Motor Mounting: 16*16/Φ3mm

Weight: 220g±5g

Compatibility: DJI O4 Air Unit Pro

Packing List

1 x BOB46 Frame Kit

1 x TPU Parts

4 x Motor Wire Shield Tube

1 x Battery Anti-Slip Pad

2 x Battery Strap

1 x Screw Bag

Note

Due to manufacturing processes. the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
