A trail bike made for climbing. racing on flat terrain and hurtling downhill. A bike for all situations and all for fun!
The geometry of the Cannondale Habit 4 is specially adapted to your size. Thanks to the Proportional Response design. everything from the suspension configuration to the geometry. not forgetting the length of the rear chainstays. is fully adapted to your size. allowing you to express your performance to the full. A performance-oriented design at your size.
With a head tube angle of 65.5° and a seat tube angle of 77.5°. you’re in the optimum position to accelerate uphill. charge downhill and stop whenever you want.
The focus is on simplicity and convenience for the rider. with a threaded bottom bracket. universal derailleur hanger (UDH). standard shock mount. internal cable routing and a standard 55mm chain line for superior tyre clearance. Everything is designed to make the bike easier to live with and love.
Main features :
- SmartForm C1 aluminium frame. 130 mm travel.
- RockShox Recon RL forks. 140 mm travel. Deluxe Select shock absorber.
- Shimano Deore 12-speed transmission.
- Shimano MT200 hydraulic disc brakes. 180/180 mm.
- TranzX telescopic seatpost (130 to 150 mm depending on size).
Features :
| Frame | Aluminium :Habit SmartForm C1 Alloy. 130 mm travel. Proportional Response Suspension and Geo. 55 mm chainline. ISCG05. BSA threaded BB. post mount brake. tapered headtube. DirectLine internal cable routing. UDH hanger |
| Fork | RockShox Recon RL. 140 mm. Solo Air. 15×110 mm thru-axle. tapered steerer. 42 mm offset |
| Rear Shock | RockShox Deluxe Select. DebonAir. adjustable rebound |
| Shifter | Shimano Deore M6100. 12-vitesses |

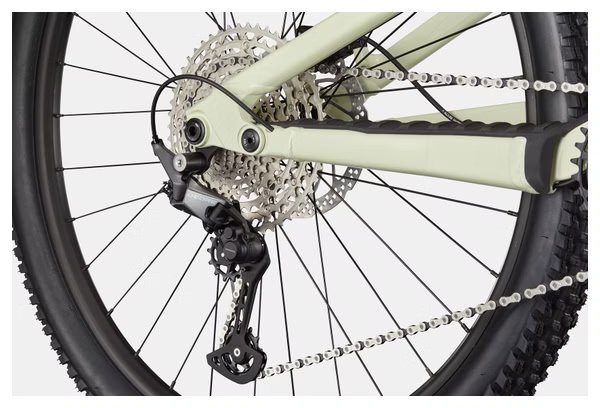

| Rear Derailleur | Shimano Deore M6100.12-vitesses |
| Cassette | Shimano Deore M6100. 10-51. 12 vitesses |
| Chain | KMC X12. 12-vitesses |

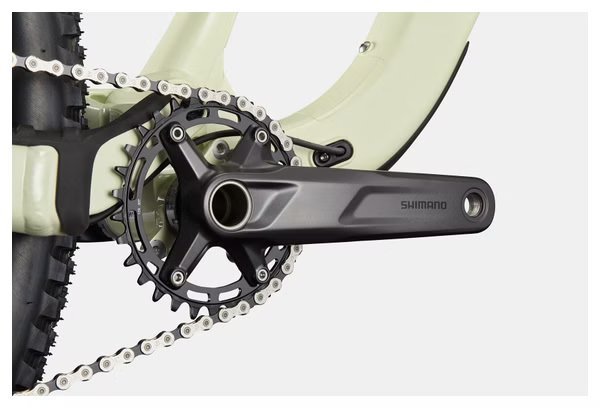

| Cranckset | Shimano. FC-5121. 30 dents. 55 mm chainline |
| Bottom Bracket | Shimano BSA 73 |

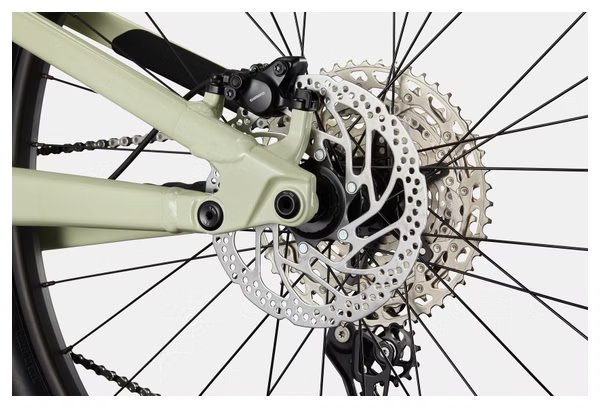

| Brakes | Shimano MT200 hydraulic disc. 180/180 mm RT30 centerlock rotors |
| Wheelset | WTB STX i25 TCS. 32 Spokes Stainless Steel. tubeless ready |
| Hubs | Avant :Shimano MT400. 15×110 mm thru-axle / Arrière :Shimano MT410. 12x148mm thru-axle. MS freehub |
| Tires | Maxxis Rekon. 29×2.4”. EXO. tubeless ready |

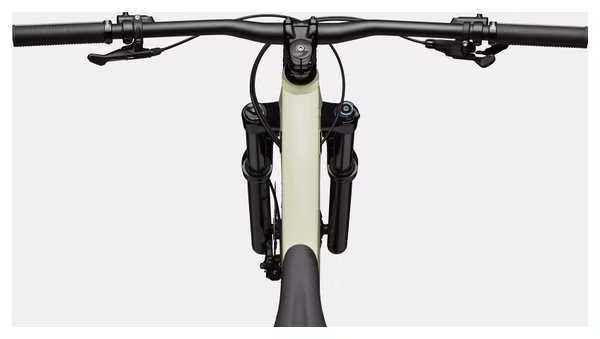

| Handlebar | Cannondale 3 Riser. 6061 Alloy. 15 mm rise. 8° sweep. 4° rise. 780 mm |
| Grips | Cannondale Locking Grips |
| Stem | Cannondale 3. 6061 Alloy. 31.8. 0° |
| Saddle | Cannondale Ergo XC |
| Seatpost | TranzX dropper. internal routing. 31.6 |
| Color | Ice Green |
Geometries :
| Frame size | S | M | L | XL |
| Seat tube (mm) | 380 | 400 | 445 | 500 |
| Top tube (mm) | 563 | 590 | 617 | 654 |
| Base length (mm) | 434 | 435 | 440 | 445 |
| Steering bushing (mm) | 110 | 120 | 130 | 140 |
| Steering angle (°) | 65.5 | 65.5 | 65.5 | 65.5 |
| Seat tube angle (°) | 77.5 | 77.5 | 77.5 | 77.5 |
| Wheelbase (mm) | 1170 | 1200 | 1234 | 1278 |
| Stack (mm) | 623 | 632 | 641 | 650 |
| Reach (mm) | 430 | 455 | 480 | 515 |
| Seatpost lenght (mm) | 130 | 150 | 150 | 150 |
MORE INFORMATION
Features
| Gender | Women Men |
| Frame material | Alloy |
| Groupset | Shimano Deore |
| color | Black, Beige |
|---|---|
| Size | L / 172-182 cm, M / 162-175 cm, S / 154-165 cm, XL / 180-195 cm |
