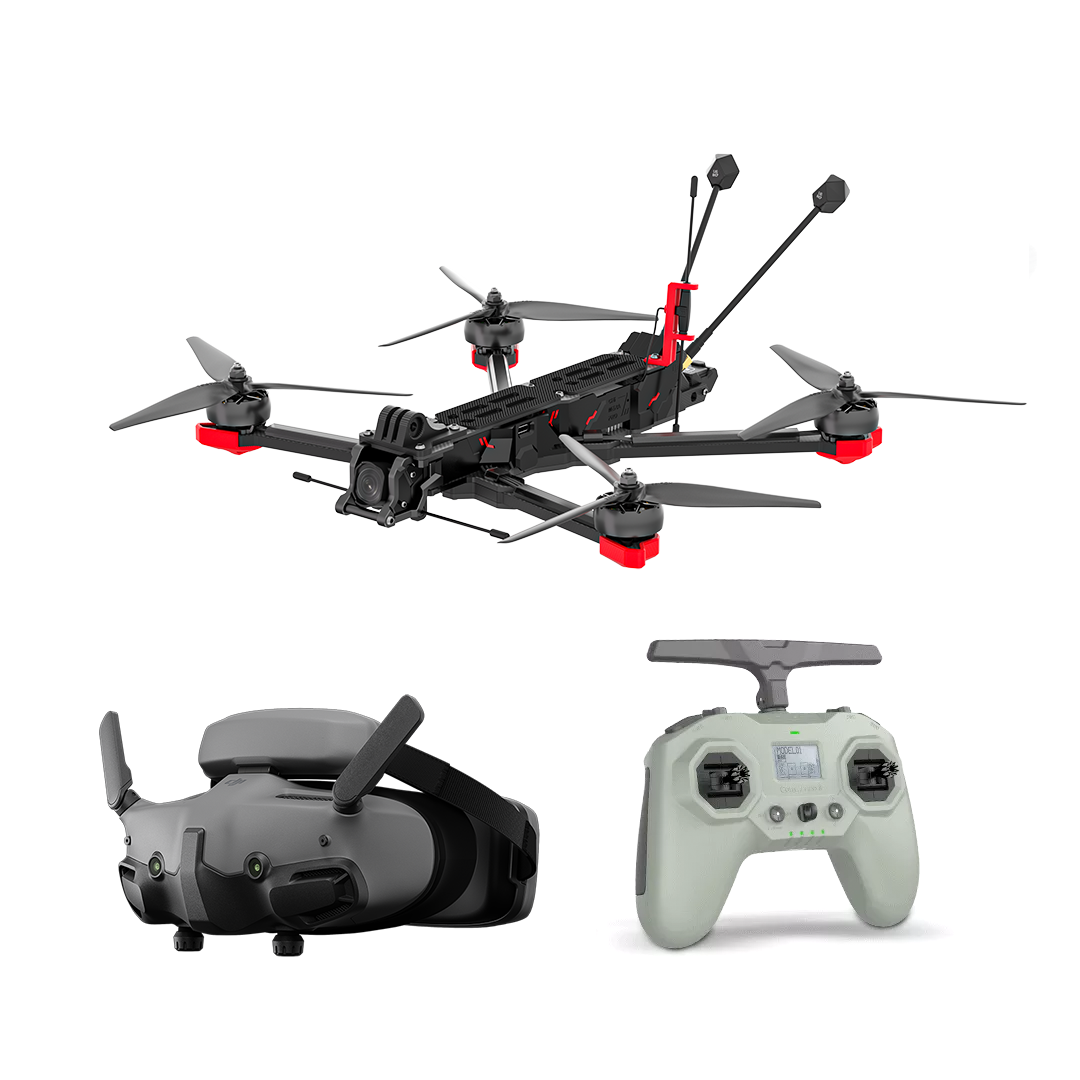

Chimera7 Pro V2 6S HD – RTF(G3)

In the Box

• Chimera7 Pro V2

  x 1

• Commando 8 ELRS Radio

  x 1

• DJI Goggles 3

  x 1

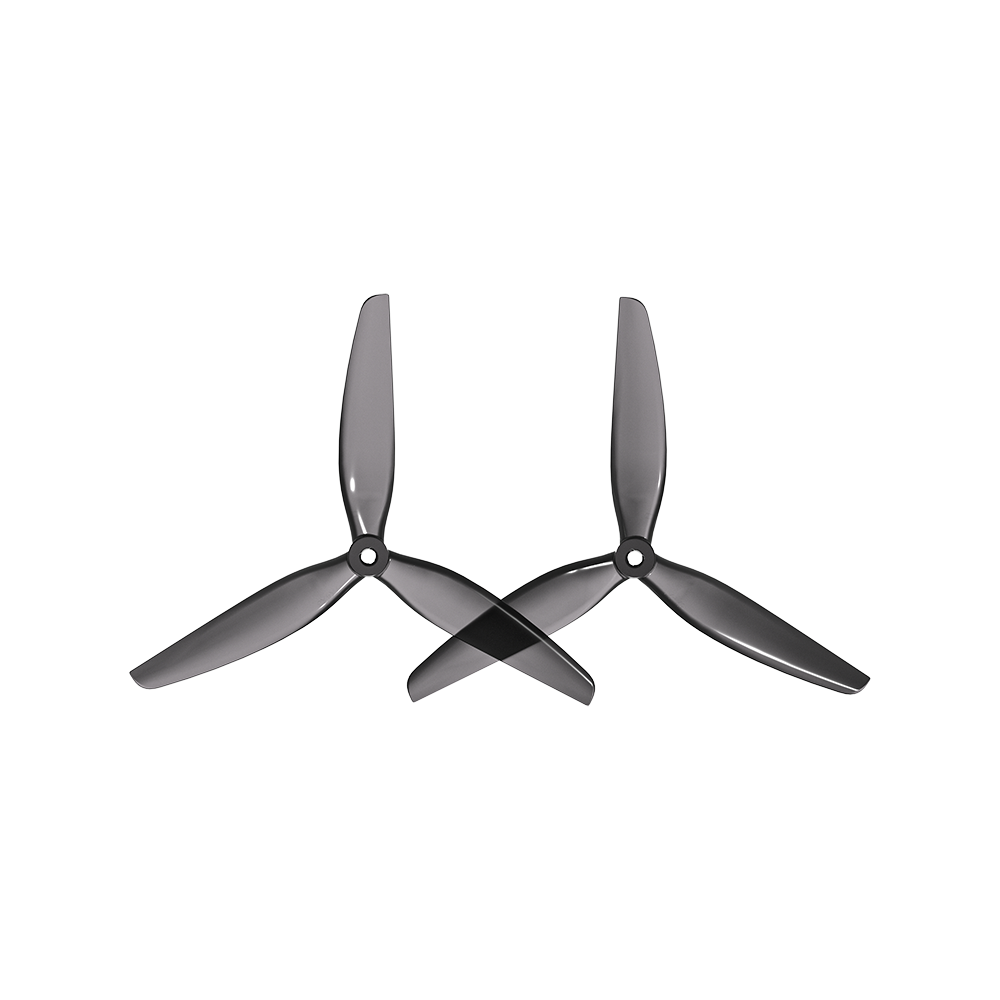

• HQ 7.5X3.7X3 Propeller(Pairs)

  x 2

• Anti-slip Battery Pads

  x 2

• 5.8G Antenna

  x 2

• Battery Strap

  x 2

• Screwa Bag

  x 1

TRYP Simulator Key Option Note

Because this product is a virtual product. we will send the key via email after the customer receives the Commando 8 package. Therefore. please contact customer service to obtain it after receiving the package.

This key can only be used on Steam.

Descriptions

The KING of Long Range FPV! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn’t go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5inch prop control. Fly big batteries top-mounted. or even bigger batteries bottom-mounted. 6cells recommended or 5cells for slow cruising. But whatever style you fly. a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or our new 6S 3300mAh battery.

Highlights

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors. no compromises taken! Durable unibell (one-piece bell) technology. strong titanium alloy shaft with reinforced bell joint. crash resistant 7075 aluminum bell. smooth and long-lasting Japanese NSK bearings. center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Chimera7 Pro Frame for Maximum Protection

The old days are over. getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs. preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

DJI O3 HD Air Unit Low-Latency Digital Transmission

Up to 10 km video transmission range. enjoy a crisp and smooth real-time view in your goggles. even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance. it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specially Designed Heatsink for DJI O3 HD Air Unit

Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating. even on high power levels.

GPS Pre-Installed for More Safety at A Distance

GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

Changelog

December 13. 2022 : New silicone inserts have been designed to replace the TPU ones .which are holding the 03 cam in the side panels.

June 27. 2023 : The antenna installation method is changed from horizontal to vertical.

May 8. 2024 : The Albatross antenna is available in two versions. and will be shipped randomly.

Nov. 2. 2024: DJI Goggles 2 in RTF has been upgraded to DJI Goggles 3.

Feb. 13. 2025: Propeller is available in two versions. and will be shipped randomly.

Specifications

Product Name: Chimera7 Pro V2 6S HD

Geometry: DC (DeadCat)

FC: BLITZ F722 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: DJI O4 Air Unit Pro

Frame: 327mm wheelbase

Motor: XING2 2809 1250KV motors

Prop: HQ 7.5X3.7X3 propellers/ HQ 7.5x3x3 propellers

Weight: 725g(Without Battery)

Takeoff Weight incl. 8000mAH: Approx. 1621±5g

Dimensions (L×W×H)：270x199x34mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 3200 m

Max Hover Time: Approx. 30 mins

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Transmission Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4. Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled. the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC). 8 km (CE). 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

FPV Radio

Product Name: Commando 8 ELRS Radio

Weight: 310g (±10g）

Dimentions(LxWxH): L 190 x W 150 x H 51mm

Communication Frequency: 5.725-5.850 GHz

Transmission Power(EIRP)：

2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

900 MHz:FCC: 30 dBm; CE: <14 dBm; SRRC: <19 dBm

Operating Current/Volts: 0.6 A @ 7.6 V

Charging Time: 1 hour and 30 mini

Operating Time: Approx. 8 hours

Operating Temperature Range : 0°C to 40°C（32°F to 104°F）

Charging Temperature Range: 5°C to 40°C（41°F to 104°F）

FPV Goggles

Product Name: DJI Goggles 3

Weight: Approx. 470 g (battery included)

Dimensions (L×W×H): With antennas folded: 170×109×112 mm (L×W×H)

With antennas unfolded: 205×109×112 mm (L×W×H)

Screen Size (single screen): 0.49 inch

Resolution (single screen): 1920×1080

Refresh Rate: Up to 100 Hz

Interpupillary Distance Range: 56-72 mm

Diopter Adjustment Range: -6.0 D to +2.0 D

FOV (single screen): 44°

Communication Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmission Power (EIRP):

2.4 GHz:< 33 dBm (FCC)< 20 dBm (CE/SRRC/MIC)

5.1 GHz:< 23 dBm (CE)

5.8 GHz:< 33 dBm (FCC)< 30 dBm (SRRC)< 14 dBm (CE)

Max Video Transmission Bitrate: 60 Mbps

Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

Battery Voltage: 5.6-8.4 V

Supported SD Cards: microSD (up to 512 GB)

Packing List

1 x Chimera7 Pro V2 HD BNF

1 x Commando 8 ELRS Radio

1 x DJI Goggles 3

2 x Antenna

2 x Battery strap

Important

All iFlight BNFs are tested before shipment to guarantee highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
