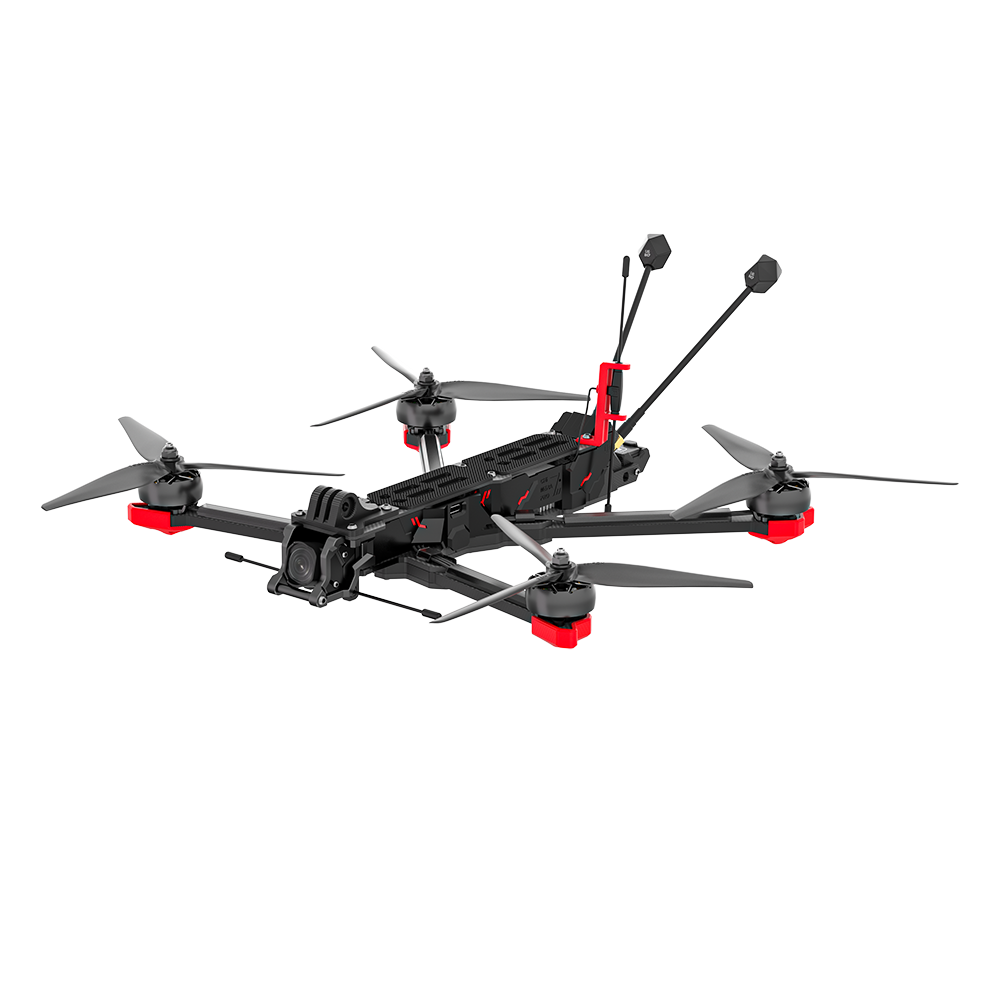

Chimera7 Pro V2 O4 6S HD

In the Box

• Chimera7 Pro V2

  x 1

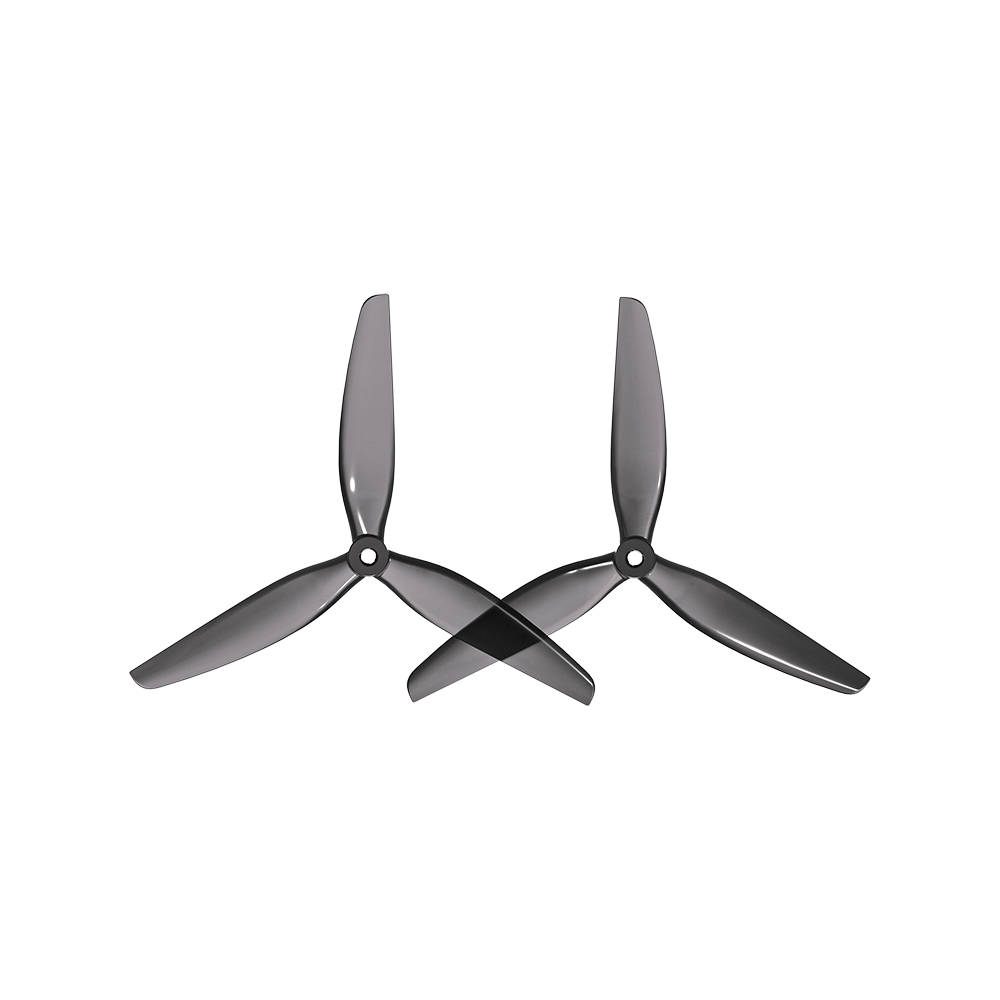

• HQ 7.5X3.7X3 Propeller(Pairs)

  x 2

• Anti-slip Battery Pads

  x 1

• Battery Strap

  x 2

• Screws Bag

  x 1

Description

The KING of Long Range FPV. Featuring the all-new DJI O4 Air Unit. it delivers exceptional perspective and extended flight distance. This super-efficient iFlight 7.5-inch long-range marvel opens up previously unreachable destinations. capable of carrying larger batteries to extend your flight time—ideal for an adventure like surfing the Swiss Alps. With a super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5-inch prop control. you can fly big batteries top-mounted or even larger ones bottom-mounted.

Changelog

Feb. 13. 2025 : Propeller is available in two versions. and will be shipped randomly.

Highlights

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors. no compromises taken! Durable unibell (one-piece bell) technology. strong titanium alloy shaft with reinforced bell joint. crash resistant 7075 aluminum bell. smooth and long-lasting Japanese NSK bearings. center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Chimera7 Pro Frame for Maximum Protection

The old days are over. getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs. preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

O4 Video Transmission. Enhanced Perception

DJI O4 video transmission’s enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance. a transmission latency as low as 24 ms. 1080p/100fps high-definition image quality. and a maximum transmission bitrate of 60Mbps. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance. it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

GPS Pre-Installed for More Safety at A Distance

GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

Specificaiton

Product Name: Chimera7 Pro V2 6S HD

Geometry: DC (DeadCat)

FC: BLITZ F722 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: DJI O4 Air Unit Pro

Frame: 327mm ±2mm wheelbase

Motor: XING2 2809 1250KV motors

Prop: HQ 7.5X3.7X3 propellers / HQ 7.5x3x3 propellers

Weight: 725±5g

Takeoff Weight incl. 8000mAH: Approx. 1621±5g

Dimensions (L×W×H)：270*199*34±2mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 3200 m

Max Hover Time: Approx. 30 mins (No load With 21700 6S 8000mAh)

Operating Temperature Range: -10° to 40° C

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4. Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled. the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC). 8 km (CE). 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Packing List

1 x Chimera7 Pro V2 6S O4 HD

2 x Battery pad

2 x 7.5 inch Prop(Pairs)

2 x Battery strap

1 x Screw bag

Important

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

Note

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1) Any military combat purpose or military combat related use;

(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.

If Party A has violated applicable export control or economic sanctions laws and regulations. Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.

For more specific content. please check: https://shop.iflight.com/Export-Policy-info

Compatibility

DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3

DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2

(Or another Radio to match the RX in the Drone)

The flight control firmware needs to be configured to support the SBUS protocol in order to use the DJI FPV remote controller.
