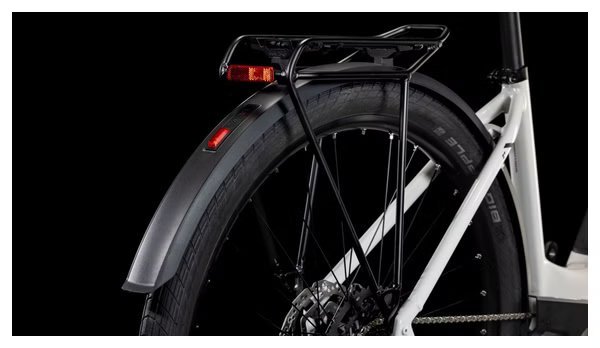

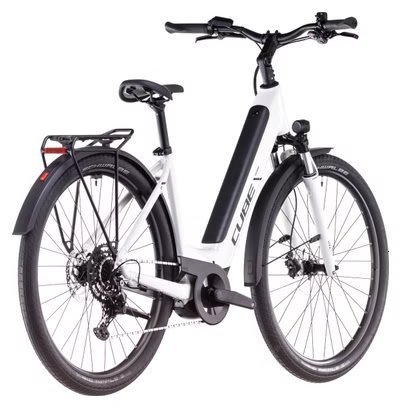

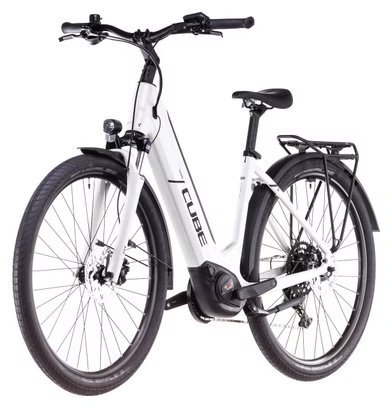

We made our classicCube Touring Hybridto be versatile. easy to live with and comfortable. The powerful Bosch Performance motor with Bosch smart system and 500 Wh PowerTube battery are all so neatly integrated into the design. you’ll barely notice they’re there – apart from the extra help at the pedals. of course. Efficient Comfort Geometry is designed around a 63 mm travel suspension fork for comfort and control. even on rough roads. The carrier is designed to make carrying a load easier. and the seat clamp even has a hidden tool in its lever. Add the ACID chain guard. kickstand and full-length mudguards and you’ve got everything you need.

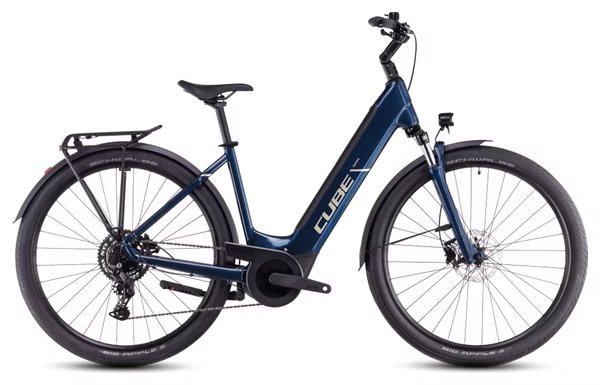

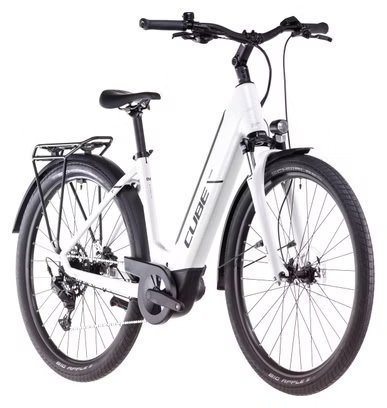

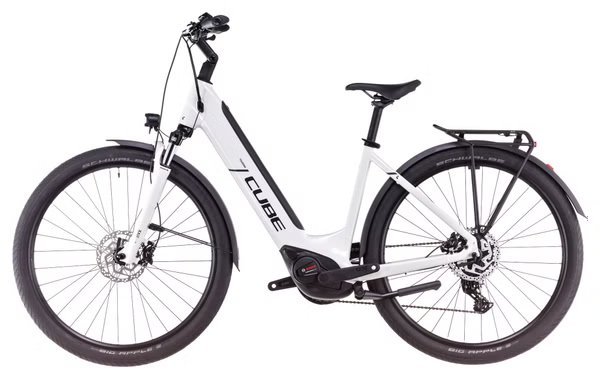

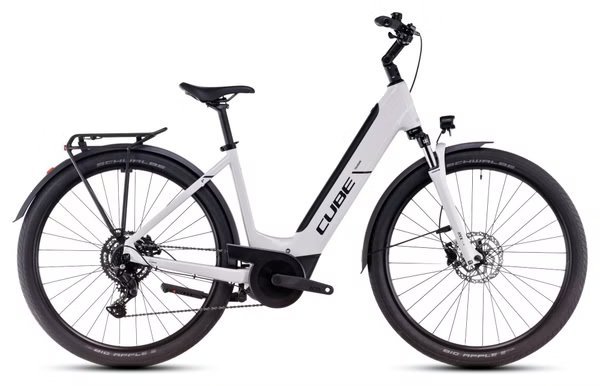

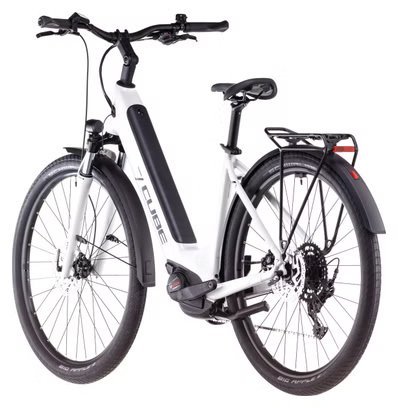

Whether you need to pop to the shops or fancy exploring further afield. theCube Touring Hybrid Onehas everything you need. The powerful Bosch Performance motor with smart system and Purion display. 500 Wh battery and easy-to-use Shimano Cues 1×9-speed gears with durable chain make light work of any trip. We fitted strong hydraulic disc brakes so you can stop safely. whatever the weather. A choice of frame styles and sizes means there’s a great-handling. great-looking Touring Hybrid that’s perfect for you. And a full complement of accessories – semi-integrated carrier. mudguards and kickstand – means you’re all set for any ride.
Main features:
- Ride adventurously. travel often.
- The Touring Hybrid’s smooth Bosch power. comfortable ride and practical equipment mean you’re all set to tackle life’s adventures head on.

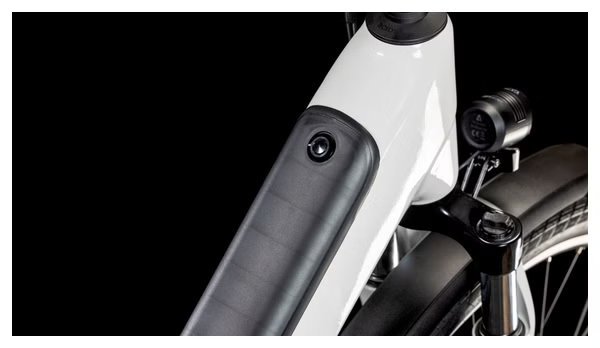

- Aluminium Superlite frame with Full Integrated Battery.
- Shimano Cues U4000 1×9-speed drivetrain.
- Shimano MT200 hydraulic disc brakes. 180/180 mm.
Features:
| Frame | Aluminium: Easy Entry. Aluminium Superlite. Gravity Casting Technology. Efficient Comfort Geometry. Fully Integrated Battery. 1.5 Headtube. Semi Integrated Carrier. Width tire maximum: 56 mm |
| Fork | SR Suntour NVX30 Coil. 63 mm travel |
| Motor | Bosch Drive Unit Performance Generation 3 (75 Nm) Cruise (250 Watt). Smart System. 25 km/h |
| Battery | Bosch PowerTube 500 Wh |
| Remote | Bosch Purion 200 w/ Integrated Display |
| Shifter | Shimano Cues SL-U4010. Rapidfire-Plus. 1×9-speed |
| Rear Derailleur | Shimano Cues RD-U4000-GS. 9-speed |
| Cassette | Shimano Cues CS-LG300. 11-46T |
| Chain | KMC eGlide |
| Crankset | Acid Trekking Hybrid. 170 mm. 40T |
| Brakes | Shimano BR-MT200. Hydr. Disc Brake. (180/180) |
| Wheelset | Cube EX25. 32H. Disc. Tubeless Ready |
| Hubs | Front: Shimano HB-QC300. QR. Centerlock / Rear: Shimano FH-QC300-HM. QR. Centerlock |
| Tires | Schwalbe Big Apple. Active. 55-622. 28 x 2.15″ |
| Handlebar | Cube Comfort Trail Bar. 700 mm |
| Grips | Acid Travel Comfort |

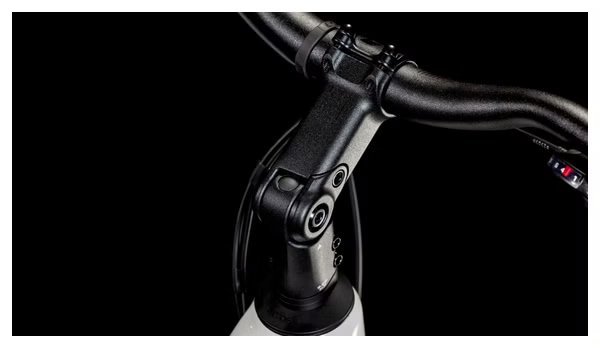

| Stem | Cube Comfort Stem Pro. 31.8 mm. 90 mm. Adjustable |
| Headset | Acros AZF-1030. Top Zero-Stack 1 1/2″ (ZS 56 mm). Bottom Zero-Stack 1 1/2″ (ZS 56 mm) |
| Pedals | Acid PP MTB |
| Saddle | Acid Sequence Pro Plus |
| Seatpost | Cube Performance Post. 30.9 mm |

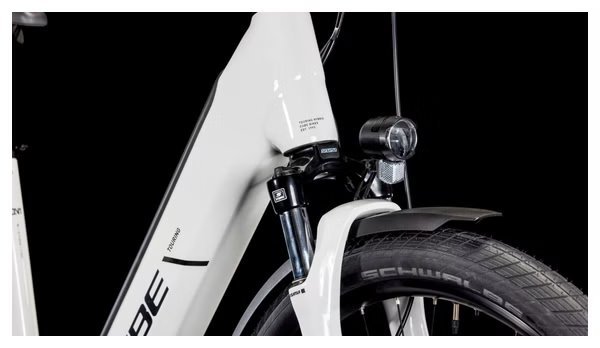

| Accessories | Acid Front Light PRO-E 60. 12V. DC / Acid Mudguard Rear Light PRO-E. 12V. DC / Acid FM Pure Kickstand / Acid 65 BB-Mount Mudguards / Easy Bell / Acid Semi-Integrated Carrier. Acid RILink Adapter Compatible |
| Weight | 26.6 kg |
| Weight Limit | 140 kg: the maximum system weight consists of the bike. rider and equipments |
| Color | cotton´n´grey |
| Reference | 811122 |
Geometries:
| Frame Size (cm) | 46 | 50 | 54 | 58 |
| Seat Tube (mm) | 440 | 480 | 520 | 560 |
| Top Tube (mm) | 590 | 600 | 610 | 620 |
| Chain Stays (mm) | 509 | 509 | 509 | 509 |
| Head Tube Length (mm) | 160 | 160 | 160 | 160 |
| Head Tube Angle (°) | 68.2 | 68.7 | 69.2 | 69.5 |
| Seat Tube Angle (°) | 73 | 73 | 73 | 73 |
| Wheelbase (mm) | 1171 | 1176 | 1181 | 1185 |
| Stack (mm) | 655 | 657 | 659 | 662 |
| Reach (mm) | 386 | 396 | 406 | 415 |
MORE INFORMATION
Features
| Gender | Women Men |
| Wheel Size | 700mm |
| Groupset | Shimano Cues |
| color | White, Blue |
|---|---|
| Size | 46 cm / 157-166 cm, 50 cm / 164-172 cm, 54 cm / 170-178 cm, 58 cm / 181-193 cm |
