Defender 20 3S HD – RTF(G3)

In the Box

• Defender 20

  x 1

• Commando 8 ELRS Radio

  x 1

• DJI Goggles 3

  x 1

• Defender 20 2020-3 Props

  x 4 pairs

• Defender 20 900mAh Battery

  x 1

• Charging Adapter

  x 1

• PD30W Charger

  x 1

• Type-C PD100W Cable

  x 1

• Defender 20 Carrying Case

  x 1

TRYP Simulator Key Option Note

Because this product is a virtual product. we will send the key via email after the customer receives the Commando 8 package. Therefore. please contact customer service to obtain it after receiving the package.

This key can only be used on Steam.

Descriptions

iFlight Defender series features a better flying experience and performance with the next upcoming innovative step. Now is the time to take a step forward. let’s meet the Defender 20. With the integrated All-In-One design and extremely convenient user experience. the new Defender has created a new standard of FPV drones. Upgraded quick-release battery and charging adapter to support Type C fast charging and battery storage mode. making everything as easy as it can be. One-button power switch with inbuilt programmable RGB light. yes we can be stylish and functional.

Changelog

Nov. 2. 2024 : DJI Goggles 2 in RTF has been upgraded to DJI Goggles 3.

Highlights

Remarkably Lightweight And Portable

The palm-sized. compact Defender 20 is just as portable as it can be. The whole frame is injection molded for durability and lightweight. equipped with a naked DJI O3 air unit (Supplied by DJI). It’s not only regulation-friendly. but also the safest in its series. allowing you to fly anywhere and whenever.

One-button Functional Power Switch

Better operation through one physical button. not only just power on and off but also inbuilt programmable RGB light colors and modes to visually display the battery power. We’ve added a protective circuit to extend the lifespan of the battery connector and prevent rapid voltage or current spikes which can protect your electronics from damage.

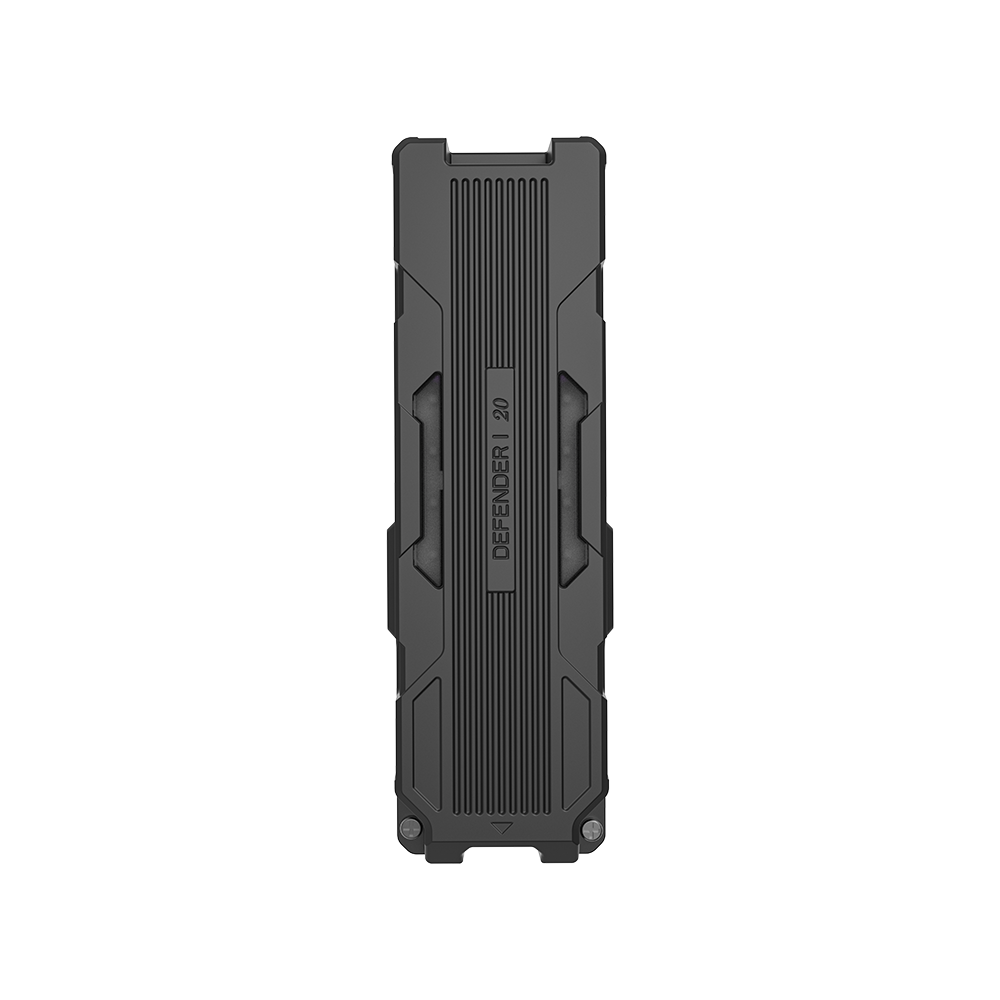

Innovative Quick-Release Battery with Type-C Charger

The Defender 20 comes with a stock 3S 900mAh providing up to 7min flight time. Crash protected battery shell and innovative quick-release structure for easy replacement. Upgraded plug and play Type-C charger for user-friendly fast charging. get 80% charge in just 18 minutes. The battery has an inbuilt auto-discharge module. it will discharge itself when not in use. making it safe and worry-free.

Extremely Convenient User Experience

No fear of dust. take off boldly. By using dustproof port plugs to isolate the interface from the outside. ensure function properly. Extend the life of the interface.

The drone can be disassembled with only 6 screws. making it much more convenient for maintenance and repair.

Full plug and play high performance AIO. 30% increase in redundancy to cope with extreme operations. Integrated beeper for quick retrieval of accidental loss.

All ports and buttons are easy to access.

Countless easy-to-use features let you get started right away.

1) No soldering is required for the whole drone. motors. and propellers adopting the plug-in mounting method.

2) A dedicated VTX mount bracket with a central grille opening. together with the air duct design in the drone. can dissipate heat when flying.

3) USER1 preset as video transmitter power supply switch. used to manually turn off the VTX when idle to safe power and prevent overheating.

4) Customized vibration damped O3 camera mount to keep your raw footage as smooth as possible. as well as ensure good Gyro Data for the in-built or in-post camera stabilization. jello free.

Specifications

Product Name: Defender 20 O3 3S HD

Flight Electronics: Defender 16/20 F411 AIO

Video Transmission: DJI O3 Air Unit (Naked version)

Frame wheelbase: 97mm

Motor: Defender20 1204 motors

Prop: Defender20 2020-3 props

Weight: 178±5g

Takeoff Weight: Approx. 247±5g (With 900mAh Battery)

Dimensions (L×W×H): 135x136x52mm

Max Speed: 75km/h (Manual Mode)

Maximum Takeoff Altitude: 2000 m

Max Hover Time: Approx. 7.5 mins(with 3S 900mAh battery)

Max Wind Speed Resistance: Level 3

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Dual Antennas

GNSS: N/A

Video Transmission

Product Name: Naked DJI O3 Air Unit

Communication Bandwidth： Max 40 MHz

FOV (single screen): 155°

Communication Frequency: 2.400-2.4835 GHz (RX only)；5.725-5.850 GHz(RX and TX)

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC). 2 km (CE). 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

FPV Radio

Product Name: Commando 8 ELRS Radio

Weight: 310g (±10g）

Dimentions(LxWxH): L 190 x W 150 x H 51mm

Communication Frequency: 5.725-5.850 GHz

Transmission Power(EIRP):

2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

900MHz:FCC: 30 dBm; CE: <14 dBm; SRRC: <19 dBm

Operating Current/Volts: 0.6 A @ 7.6 V

Charging Time: 1 hour and 30 mini

Operating Time: Approx. 8 hours

Operating Temperature Range: 0°C to 40°C（32°F to 104°F）

Charging Temperature Range: 5°C to 40°C（41°F to 104°F）

FPV Goggles

Product Name: DJI Goggles 3

Weight: Approx. 470 g (battery included)

Dimensions (L×W×H): With antennas folded: 170×109×112 mm (L×W×H)

With antennas unfolded: 205×109×112 mm (L×W×H)

Screen Size (single screen): 0.49 inch

Resolution (single screen): 1920×1080

Refresh Rate: Up to 100 Hz

Interpupillary Distance Range: 56-72 mm

Diopter Adjustment Range: -6.0 D to +2.0 D

FOV (single screen): 44°

Communication Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmission Power (EIRP):

2.4 GHz:< 33 dBm (FCC)< 20 dBm (CE/SRRC/MIC)

5.1 GHz:< 23 dBm (CE)

5.8 GHz:< 33 dBm (FCC)< 30 dBm (SRRC)< 14 dBm (CE)

Max Video Transmission Bitrate: 60 Mbps

Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

Battery Voltage: 5.6-8.4 V

Supported SD Cards: microSD (up to 512 GB)

Packing List

1 x Defender 20 O3 HD BNF

1 x Commando 8 ELRS Radio

1 x DJI Goggles 3

1 x Defender 20 900mAh Battery

1 x Charging Adapter Board

4 x Defender 2020 Props (pairs)

1 x Propeller Removal Tool

1 x PD30W Charger

1 x Type C Digital Display Charge Cable

1 x Defender 20 Carrying Case

Important

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
