Defender 20 Lite 2S HD – RTF(Lite)

In the Box

• Defender 20 Lite

  x 1

• DJI Goggles N3

  x 1

• Commando 8 ELRS Lite Radio

  x 1

• Defender 20 Lite 600mAh Battery

  x 1

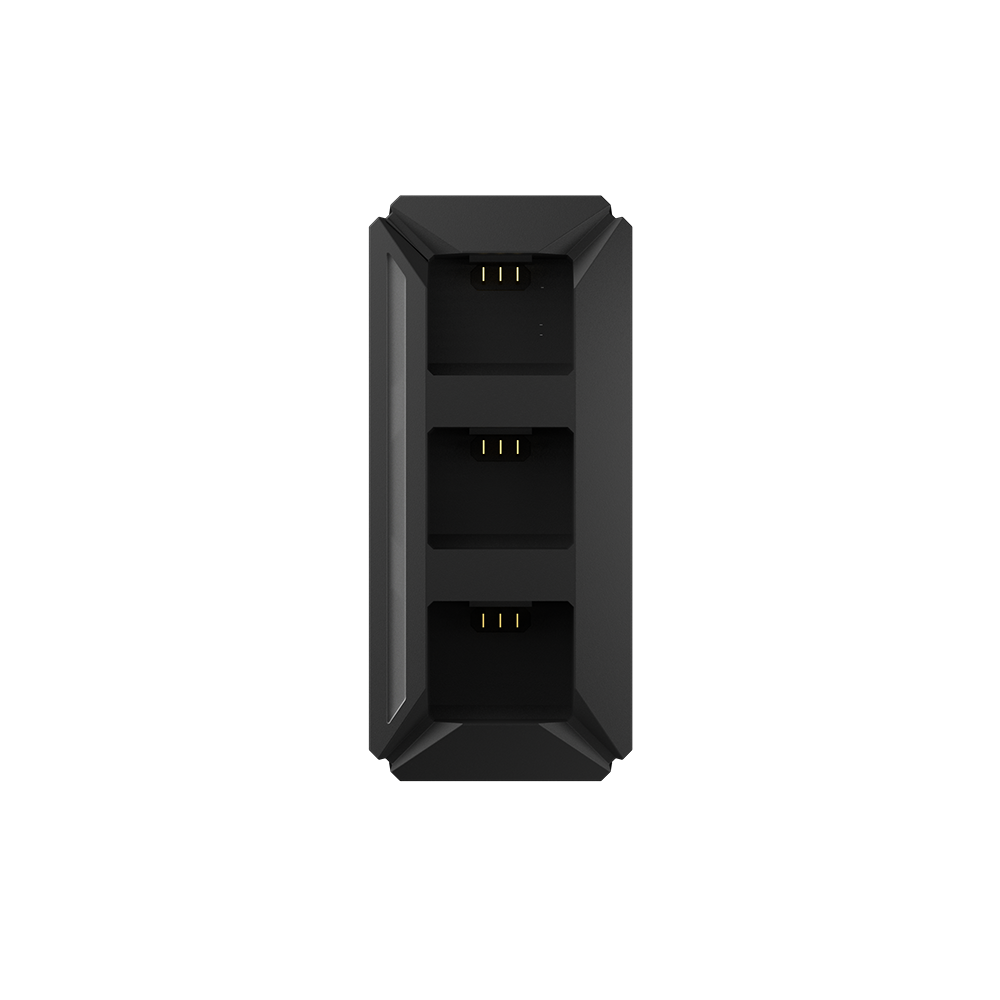

• 3-Port Battery Charging Hub

  x 1

• Battery Charging Adapter

  x 1

• Defender 20 Lite Carrying Case

  x 1

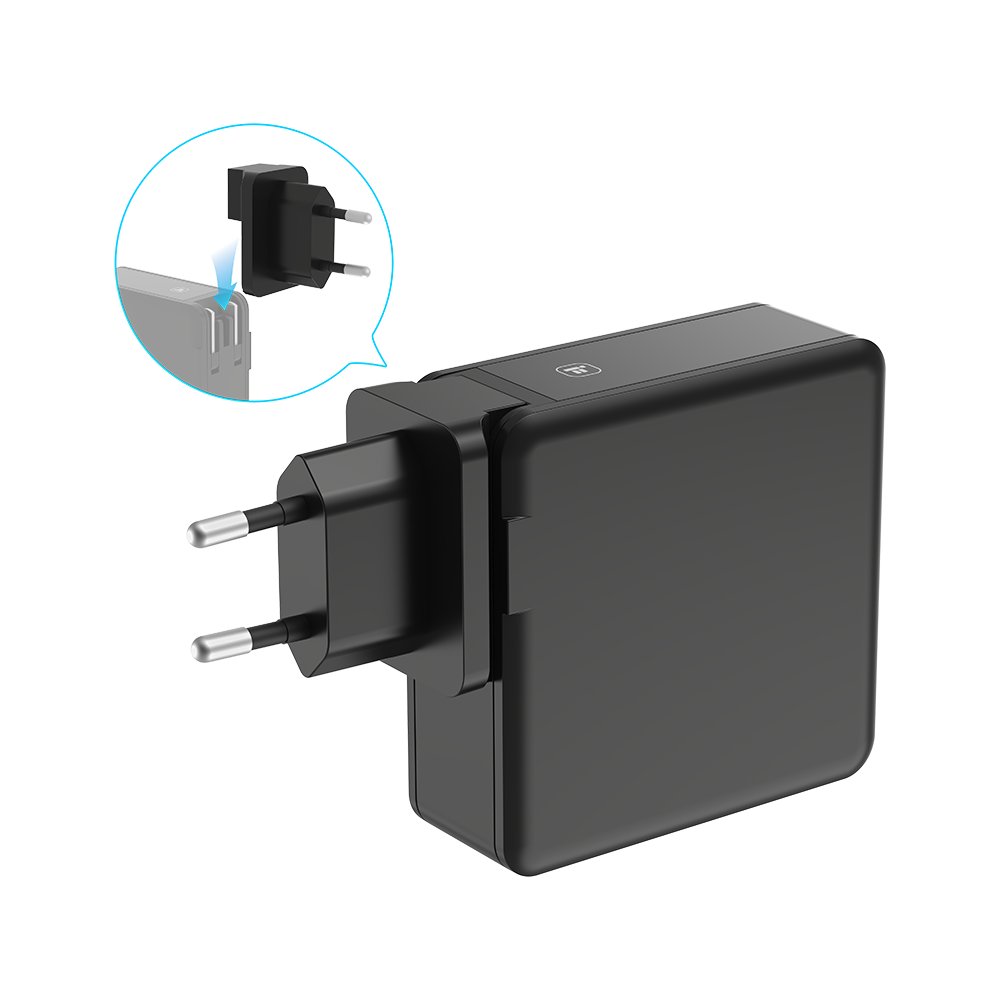

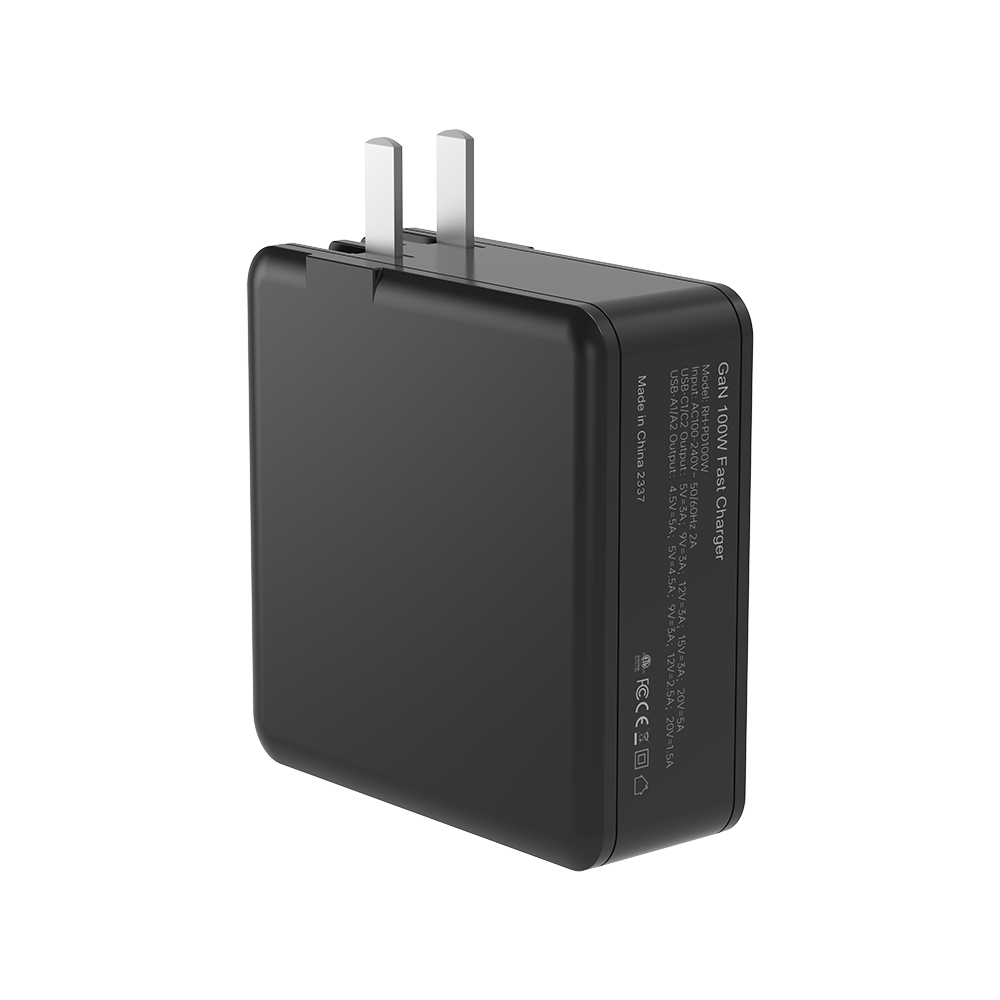

• GaN PD100W Charger

  x 1

• Defender 20 Lite 2020-3 Props

  x 2 pairs

TRYP Simulator Key Option Note

Because this product is a virtual product. we will send the key via email after the customer receives the Commando 8 package. Therefore. please contact customer service to obtain it after receiving the package.

This key can only be used on Steam.

Description

iFlight’s newly upgraded Defender series. a lightweight cinewhoop equipped with the DJI O4 Air Unit. Featuring a compact 2-inch palm size. easy to carry. With low flight noise. it enables indoor filming without disturbance.

Supports Type-C charging adapter* for fast charging. making it convenient foroutdoor use. The prop guard can be quickly disassembled with only 4 screws. allowing for more agile flight. Perfect for indoor flying. short trips. camping. and everyday shooting scenarios. Experience a new level of FPV cinematic flight.

Highlights

4K HD Video Recording

Built-in DJI O4 Air Unit 4K recording in a lightweight 2-inch frame with stabilization and Gyroflow support. With large storage capacity and low-latency. long-range video transmission. it ensures smooth first-person view footage for a more immersive flight experience.

Lightweight and Portable

Designed with a compact palm-sized frame. this device easily fits in a pocket for convenient portability. Its ultra-lightweight build and low flight noise make it ideal for undisturbed indoor flying. while its versatility allows it to navigate complex and narrow environments.

Enhanced Flight Performance

With hover throttle as low as 25%. this device provides ample power for effortless flight. It offers up to 7.5 minutes of flight time. extending creative possibilities and ensuring a smooth and enjoyable flying experience.

Quick-Release Prop Guard for Seamless Switching

The prop guard enhances safety by preventing accidents during crashes. while its quick-release design allows for seamless switching. Removing the prop guard increases agility. enabling dynamic freestyle maneuvers for more advanced flying techniques.

Podded Camera Structure

The customized O4 camera mount features an independent podded structure to minimize vibration. ensuring raw footage remains as smooth as possible. It also provides high-quality gyro data for in-built or post-processing stabilization. delivering jello-free results.

Plug-In Battery with Automatic Power-On

Simplifying operation. the device automatically powers on when the battery is inserted. making it user-friendly and ready to fly in seconds.

Specificaitons

Product Name: Defender 20 Lite O4 2S HD ELRS 2.4GHz

Flight Electronics: BLITZ Whoop F411 AIO

Video Transmission: DJI O4 Air Unit

Frame wheelbase: 87mm

Motor: Defender 16 1103 14000KV motors

Prop: Defender 20 Lite 2020*3 props

Weight: 69±3g

Takeoff Weight: Approx. 108±3g (With 600mAh Battery)

Dimensions (L×W×H): 125*125*44.5mm

Max Speed: 75km/h (Manual Mode)

Maximum Takeoff Altitude: 2000 m

Max Hover Time: Approx. 6.5-7.5 mins(with 2S 600mAh battery)

Max Wind Speed Resistance: Level 3

Operating Temperature Range: -10° to 40° C

Antennas: Single Antenna

GPS: N/A

Video Transmission

Product Name: DJI O4 Air Unit

Image Sensor: 1/2-inch CMOS Sensor

Lens: FOV: 117.6°

ISO: 100-6400 (Auto); 100-12800 (Manual)

Video Resolution: 1080p/100fps H.265

Video Format: MP4

Max Video Bitrate: 100 Mbps

Color Mode: Normal Mode

Live View Quality: 1080P@30/50/60/100fps

Operating Frequency: 5.170-5.250 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP): .1 GHz: <23 dBm (CE); 5.8 GHz:<30 dBm (FCC)<14 dBm (CE)< 30 dBm (SRRC)

Max Video Transmission Range(With DJI Goggles 3/DJI Goggles N3): 10 km (FCC). 6 km (CE). 6 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Single antenna

Built-in Storage: 23GB

Supported SD cards: Not supported

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 8.2 g

Dimensions: Transmission Module: 30×30× 6 mm (L×W×H)

FPV Radio

Product Name: Commando 8 ELRS Lite Radio

Weight: 275g (±10g）

Communication Frequency: 5.725-5.850 GHz

Transmission Power(EIRP):

2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

Operating Current/Volts: 0.6 A @ 7.6 V

Charging Time: 1 hour and 30 mini

Operating Time: Approx. 8 hours

Operating Temperature Range: 0°C to 40°C（32°F to 104°F）

Charging Temperature Range: 5°C to 40°C（41°F to 104°F）

FPV Goggles

Product Name: DJI Goggles N3

Weight: Approx. 536 g (battery included)

Dimensions (L×W×H): With antennas folded: 193×163×103 mm (L×W×H)

With antennas unfolded: 206×163×132 mm (L×W×H)

Screen Size (single screen): 3.5 inches

Resolution (single screen): 1920×1080

Refresh Rate: Up to 60 Hz

Interpupillary Distance Range: No interpupillary distance adjustment required. ready to use immediately.

Diopter Adjustment Range: Diopter adjustment not supported. can be used with personal glasses.

FOV (single screen): 54°

Operating Frequency: 2.400-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmission Power (EIRP):

2.4 GHz: < 30 dBm (FCC) < 20 dBm (CE/SRRC/MIC)

5.1 GHz: < 23 dBm (CE) < 21 dBm (FCC)

5.8 GHz: < 33 dBm (FCC) < 30 dBm (SRRC)< 14 dBm (CE)

Max Video Transmission Bitrate: 60 Mbps

Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

Power Input: Built-in battery

Supported SD Cards: microSD (up to 512 GB)

Packing List

1 x Defender 20 Lite O4 HD BNF

1 x DJI Goggles N3

1 x Commando 8 Lite

1 x Filter Set

1 x Defender 20 Lite 2S 600mAh Battery

1 x Charging Adapter

2 x Defender 20 Lite 2020-3 Props (pairs)

1 x Propeller Removal Tool

1 x Defender 20 Carrying Case

1 x 3-Port Battery Charging Hub

1 x PD100W Charger
