About this item

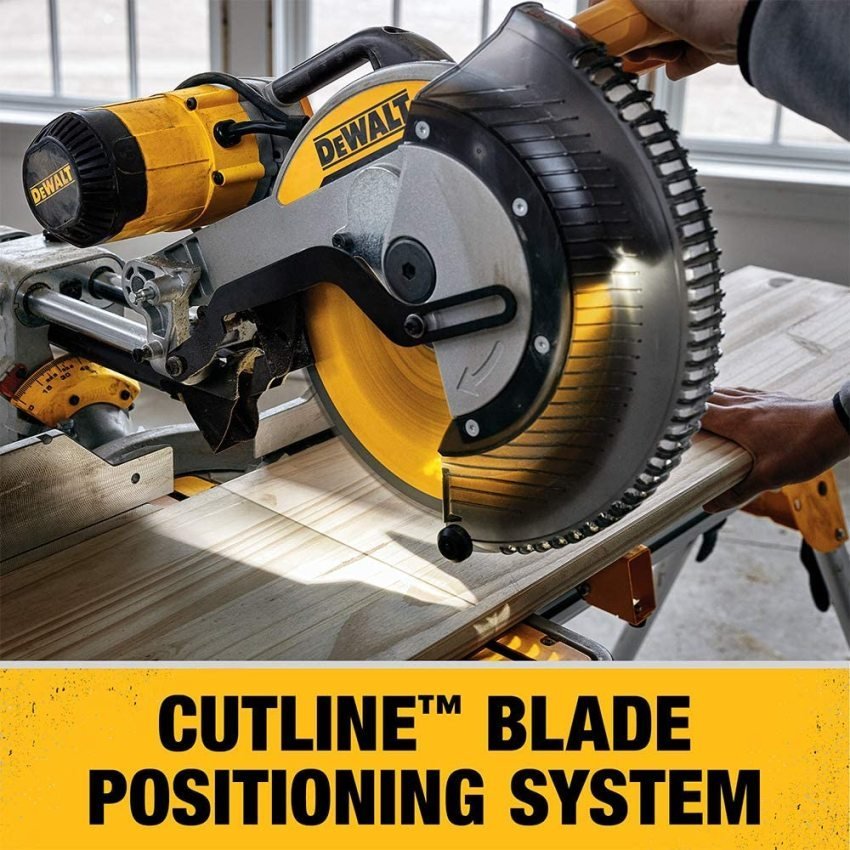

• Integrated CUTLINE Blade Positioning System provides adjustment free cut line indication for better accuracy and visibility for the 12-inch miter saw blade

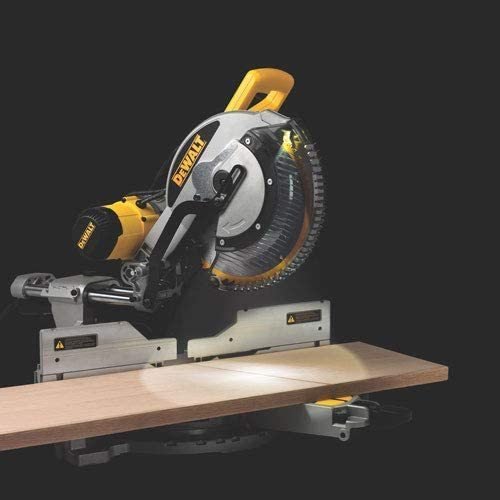

• XPS technology uses an LED to project light down either side of the blade. creating a shadow on the cutline once the saw arm is lowered

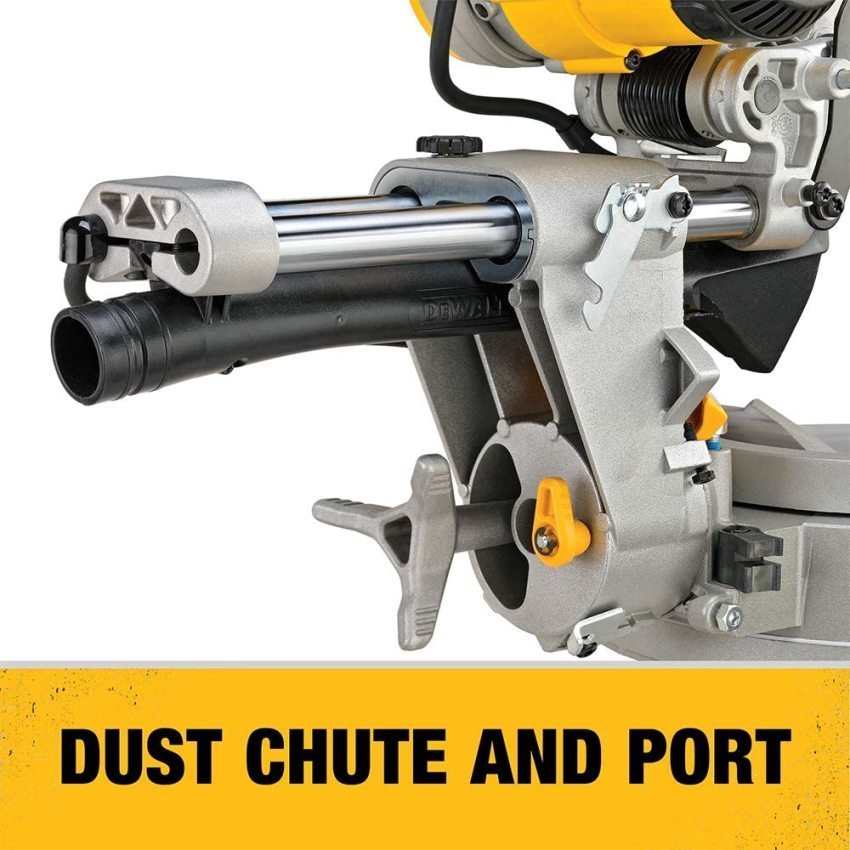

• Super-efficient dust collection system of DEWALT miter saw captures over 75% of dust generated
• Tall sliding fences support crown molding up to 7-1/2-inch nested and base molding up to 6-3/4-inch vertically against the fence while easily sliding out of the way for bevel cuts
• Exclusive back fence design cuts up to 2×14 dimensional lumber at 90 degree and 2×10 at 45 degree
• Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
• Miters 60 degree to the right and 50 degree to the left providing increased capacity

• Oversized bevel scale makes bevel angle adjustments accurate and easy
• Compact. lightweight design (58 lbs.) allows for easy transport and storage
• Cam lock miter handle with detent override deliver quick and accurate miter angles

• ---

  From the manufacturer



  Product description

  Style: 12″ Sliding w/XPS Cutline Tech

  Product Description

  The 12-inch Double Bevel Sliding Compound Miter Saw has a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free. accurate cut line indication. Tall sliding fences support 7-1/2-inch of nested crown and 6-3/4-inch of base molding vertically. Exclusive Back Fence Design cuts up to 2×14 dimensional lumber at 90; increased miter capacity of 60 (R) and 50 (L) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.

  From the Manufacturer

  The DEWALT DWS780 12-inch sliding compound miter saw. has been designed to be precise and accurate enough for fine woodworking. yet durable enough for framing and deck building. The DWS780 is ideal for a variety of end users. including cabinet makers. trim carpenters. framers. installers. and many other professional contractors who require a product that delivers the accuracy. capacity. durability. portability. and ease-of-use that this saw offers. For visibility and accuracy when cutting. this saw features the XPS LED light and cut alignment system that casts a laser-like shadow on the work surface. showing users where the blade will come in contact with the material. Since it does not require recalibration over time or when changing blades. this alignment system can be more accurate and durable than traditional laser guides. The saw’s dual bevel system includes the ability to bevel right and left from 0 to 49 degrees with positive stops at 0. 22.5. 33.9. 45. and 49 degrees in both directions. as well as a high visibility bevel scale. The saw also miters 60 degrees to the right and 50 degrees to the left and features an adjustable stainless steel miter detent plate with 10 positive stops. allowing for fast and easy adjustments. A cam lock miter button allows users to lock angles between detents for versatility on the jobsite. The saw features a powerful 15 amp motor that delivers 3.800 rpm. For convenience. the power cord is routed through the rail in the back. eliminating interference with the slide. Additionally. the saw offers an industry-leading combination of cut capacities. which includes 6-3/4 inch vertical capacity. 7-1/2 inch nested crown capacity. 13-7/8 inch horizontal capacity. and exclusive back fence design that cuts up to a 2 by 16 at a 90 degree angle and 2 by 12 at a 45 degree angle. To simplify and maximize vertical cutting capacity. the unit includes a rail lock latch for holding the head away from the fence.
