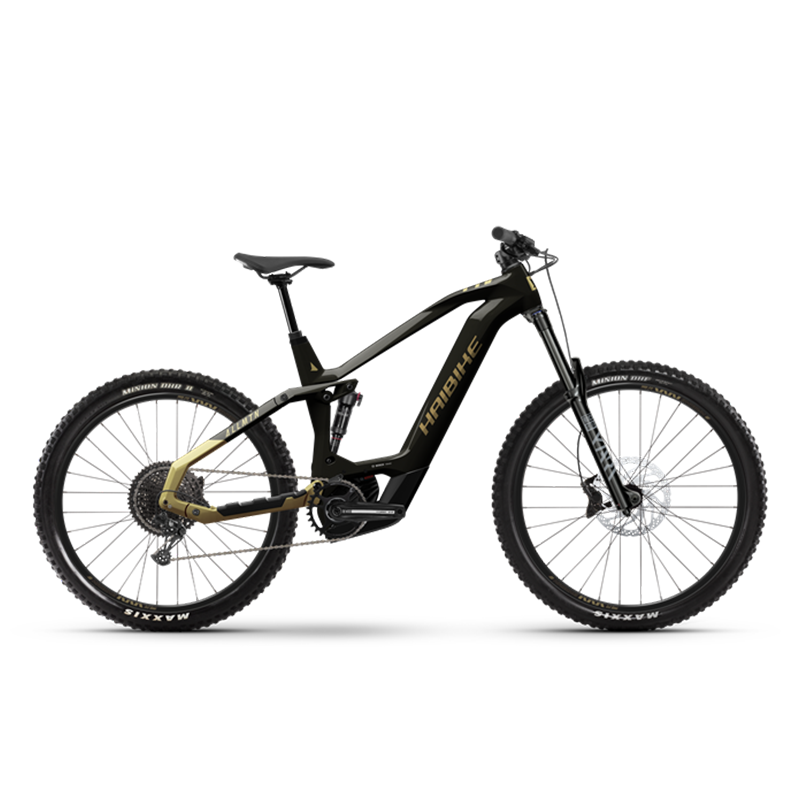

Name: Haibike ALLMTN CF 8
SKU: USY40182
Availability: InStock

Frame shape
MTB Full Suspension
Colour
Black/Gold-Gloss

ABOUT THE BIKE

For tours that know no limits. Our ALLMTN CF 8 is a mountain goat out of the picture book – and easily masters all challenges in difficult terrain: steep climbs and technical descents. flowing trails and root passages. long rides and short adventures. The Bosch Performance CX Smart System drive pushes you powerfully even in the steepest sections. At the same time. you can extend your touring radius further than ever before thanks to the 750Wh battery. The lightweight carbon frame with an aluminium rear triangle also saves weight. while the subframe construction ensures high torsional stiffness. With 160mm travel at the front and rear and high-quality shifting components from Sram and Shimano or optionally from Sram and Magura. you also have enough reserves for demanding terrain. In short: a perfect companion for all those who want to experience perfect ePerformance uphill and downhill – and tours that know no limits.

KEY FEATURES

FORK

RockShox Yari RC. Travel: 160mm

FRAME MATERIAL

Full Carbon

DRIVE UNIT

Bosch Performance CX. 85Nm. 25km/h

BATTERY

Bosch PowerTube 750Wh

SPECIFICATIONS

ENGINE

Bosch. Performance CX Smart System. 250W. 85 Nm

DISPLAY

Bosch. Kiox 300 + LED Remote

BATTERY

InTube. 750 Wh

FORK

RockShox. Yari RC. Air. travel= 160 mm. Aluminium steerer tube 1 1/8″ – 1 1/2″ tapered. 15 x 110mm thru-axle Boost

DAMPER

RockShox. Deluxe Select Plus. Air. Trunnion Mount

CRANK ARM

Haibike Components. The Crank ++. Aluminium

BRAKE (FRONT)

Shimano. MT420. 4-piston disc brake

BRAKE (REAR)

Shimano. MT420. 4-piston disc brake

TUBE

Presta valve

Rodi. Tryp 30. with eyelets. hollow rim. Aluminium

CLAMPING RING

Internal hexagon. 34.9 mm

REAR DERAILLEUR

Sram. NX Eagle

SHIFT LEVER

Sram. SX Eagle. Trigger switch

BOTTOM BRACKET

integrated in the motor

SPROCKET

Sram. Eagle PG1210. 11 – 50 teeth

CHAIN

Sram. SX Eagle

CHAINRING

Sram. Aluminium. 36 teeth

CHAIN GUIDE

Nylon directmount

BRAKE LEVER

Shimano. MT401. Aluminium.

BRAKE DISC (FRONT)

Shimano. RT30-L. 203 mm

BRAKE DISC (REAR)

Shimano. RT30-L. 203 mm

TYRE

Maxxis. Minion DHF II. 65-622. 29″ x 2.5″

FRONT WHEEL HUB

Shimano. MT400-B. Centerlock

REAR WHEEL HUB

Shimano. MT400-B. Centerlock

SPOKES

Sapim. Leader. Black

HANDLEBAR

Haibike Components. TheBar ++. 780 mm

STEM

Alu. A-head. 31.8 mm

HEADSET

Acros. Cable integration. Aluminium

SADDLE

Selle Royal. Vivo

SEAT POST

Dropper-Post Remote. Aluminium. Telescope. 31.6 mm

PEDALS

Freeridepedal. Aluminium. with Reflector

PERMITTED TOTAL WEIGHT

120.0 kg

GEAR SHIFT

Shimano. Nexus

TYRE (REAR)

Maxxis. Minion DHR II. 71-584. 27.5″ x 2.8″

RIM (REAR)

Rodi. Tryp 35. Aluminium. with eyelets. hollow rim

**Battery Range: The calculated data comprises estimates and approximations that may vary from the actual result. The precise data will vary. depending on the type of use and the external influences. Furthermore. no liability will be accepted for the correctness of the determined values.
