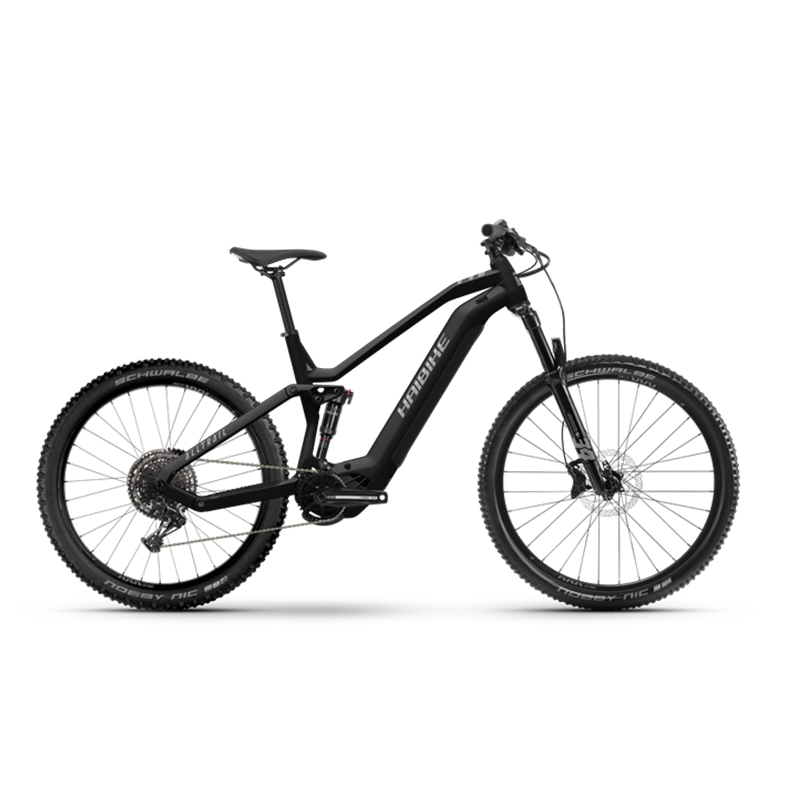

Name: Haibike ALLTRAIL 3
SKU: LQW67418
Availability: InStock

ABOUT THE BIKE

Off-road with ease. Our ALLTRAIL 3 is the perfect eMTB for your introduction to trail biking. An eFully that offers you perfect traction uphill with its mullet setup – and is still agile and manoeuvrable downhill. The idea behind it is as simple as it is ingenious: the 29″ front wheel ensures smooth running. while the 27.5″ rear wheel allows you to master tight corners with ease. With the Shimano 10-speed shifting system. you will always find the right gear ratio. even when changing terrain quickly. The powerful Yamaha PW-S2 drivetrain supports you when you run out of power or need that extra boost of support. And the SR Suntour suspension fork offers maximum comfort and. with its 140mm travel. sufficient reserves even on demanding downhills. In short: with the ALLTRAIL 3 you will enjoy maximum riding pleasure on any terrain. with an unprecedented lightness – even when the going gets rough.

KEY FEATURES

FRAME MATERIAL

Aluminium

DRIVE UNIT

Yamaha PW-S2 System. 75Nm. 25km/h

FORK

SR Suntour XCR34 Air LO-R Boost. Travel: 140mm

BATTERY

InTube 720 Wh

SPECIFICATIONS

ENGINE

Yamaha. PW-S2. 250W. 75 Nm

DISPLAY

Yamaha. Side Switch. 1.7″ LCD. 7 functions

BATTERY

InTube. 720 Wh

FORK

SR Suntour. XCR34 Air LO-R Boost. Air. travel= 140 mm. Aluminium steerer tube 1 1/8″ – 1 1/2″ tapered. 15 x 110mm thru-axle Boost

DAMPER

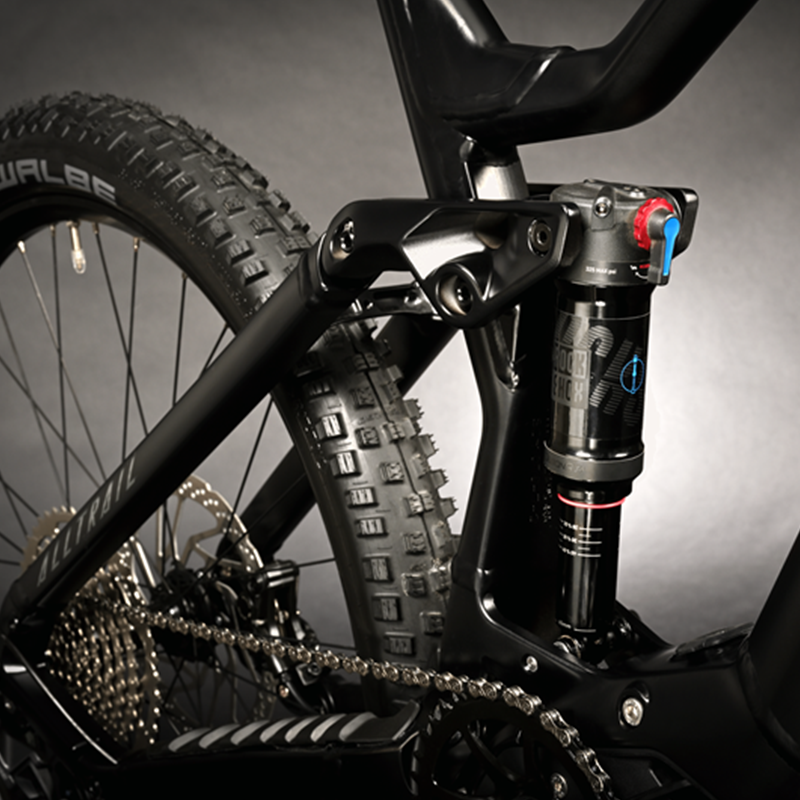

RockShox. Deluxe select plus. Air. Trunnion Mount

CRANK ARM

Haibike Components. The Crank ++. Aluminium

BRAKE (FRONT)

Shimano. MT420. 4-piston disc brake

BRAKE (REAR)

Shimano. MT420. 4-piston disc brake

TUBE

Presta valve

Rodi. Tryp 30. with eyelets. hollow rim. Aluminium

CLAMPING RING

Internal hexagon. 34.9 mm

REAR DERAILLEUR

Shimano. Microshift Advent X RD-M6250M

SHIFT LEVER

Shimano. Microshift Advent X SLM9505

BOTTOM BRACKET

integrated in the motor

SPROCKET

Shimano. Microshift Advent X HG104

CHAIN

KMC. e10S

CHAINRING

Steel. 38 teeth

CHAIN GUIDE

Nylon directmount

BRAKE LEVER

Shimano. MT401. Aluminium.

BRAKE DISC (FRONT)

Shimano. RT EM300L. 203 mm

BRAKE DISC (REAR)

Shimano. RT30-L. 203 mm

TYRE

Schwalbe. Nobby Nic Performance. 60-622. 29″

FRONT WHEEL HUB

Alu hub. Centerlock

REAR WHEEL HUB

Alu hub. Centerlock

SPOKES

Sapim. Race. Black

HANDLEBAR

Haibike Components. TheBar ++. 780 mm

STEM

Alu. A-head

HEADSET

Acros. BlockLock. Aluminium

SADDLE

Selle Royal. Vivo

SEAT POST

Haibike Components. TheSeatpost ++. Aluminium. 31.6 mm

PEDALS

Freeridepedal. Aluminium. with Reflector

PERMITTED TOTAL WEIGHT

120.0 kg

GEAR SHIFT

Shimano. Nexus

TYRE (REAR)

Schwalbe. Nobby Nic Performance. 65-584. 27.5″ x 2.6″

**Battery Range: The calculated data comprises estimates and approximations that may vary from the actual result. The precise data will vary. depending on the type of use and the external influences. Furthermore. no liability will be accepted for the correctness of the determined values.
