Helion 10 O3 6S HD – RTF(G3)

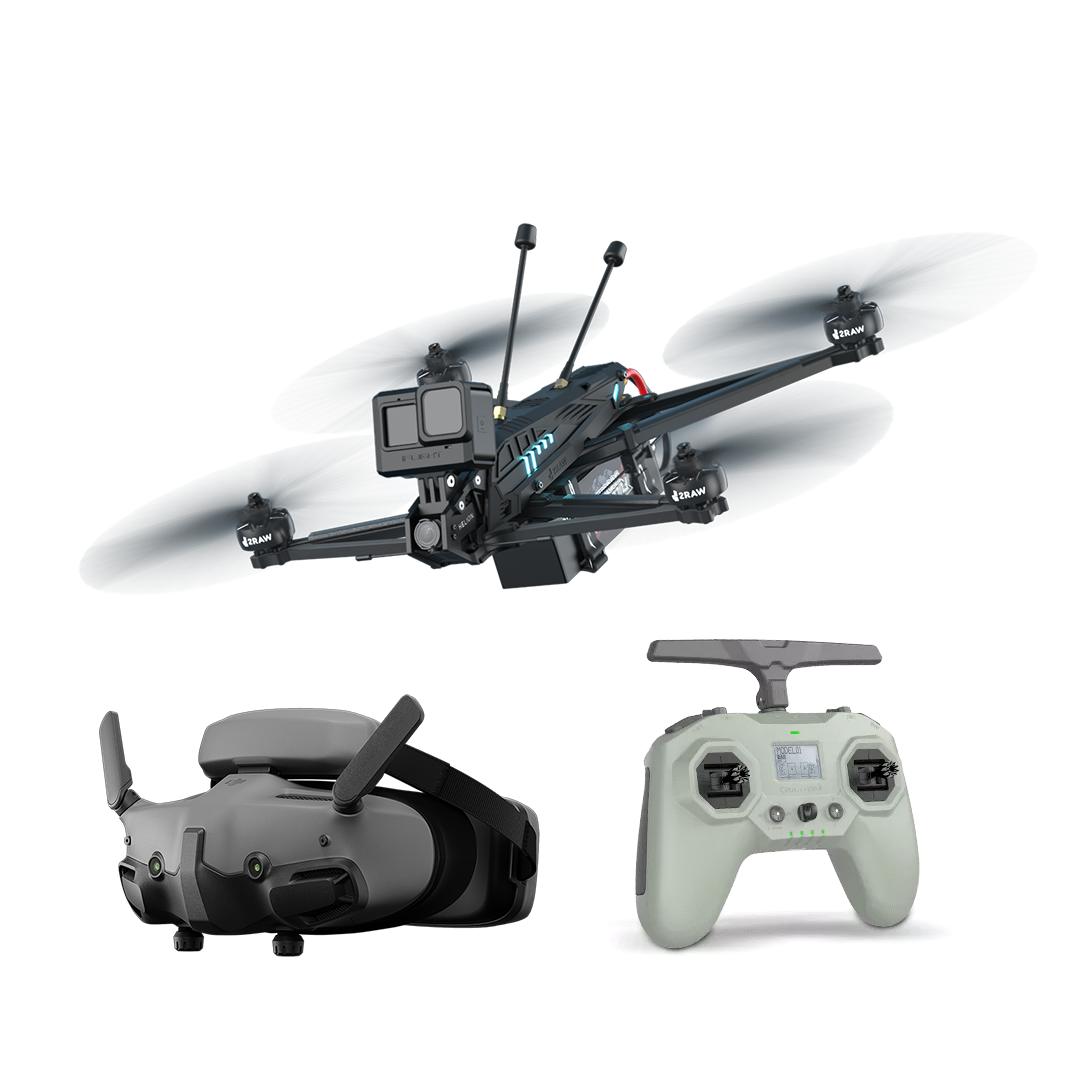

In the Box

• Helion 10

  x 1

• Commando 8 ELRS Radio

  x 1

• DJI Goggles 3

  x 1

• Battery strap

  x 2

• Anti-slip Battery Pads

  x 2

TRYP Simulator Key Option Note

Because this product is a virtual product. we will send the key via email after the customer receives the Commando 8 package. Therefore. please contact customer service to obtain it after receiving the package.

This key can only be used on Steam.

Description

HELION – The Ultra Range flagship by 2RAW and ilfight

This drone was built to redefine Long Range and take it to a whole new level and to meet the rising demands for more range. and more flight time while maintains enough weight. to have excellent stability in even the most windy conditions. With a size of 10 inches. Helion is not only capable of effectively carrying large (Recommended. 4500mAh Lipo and above) batteries while ensuring great efficiency but also has a lot of power. You will recover better when diving and have overall more control than traditional long-range drones. Its unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train when in use. Helion’s distinct frame design was scientifically optimized to balance perfectly between stability. weight. and rigidity.

Changelog

May 8. 2024: The Albatross antenna is available in two versions. and will be shipped randomly.

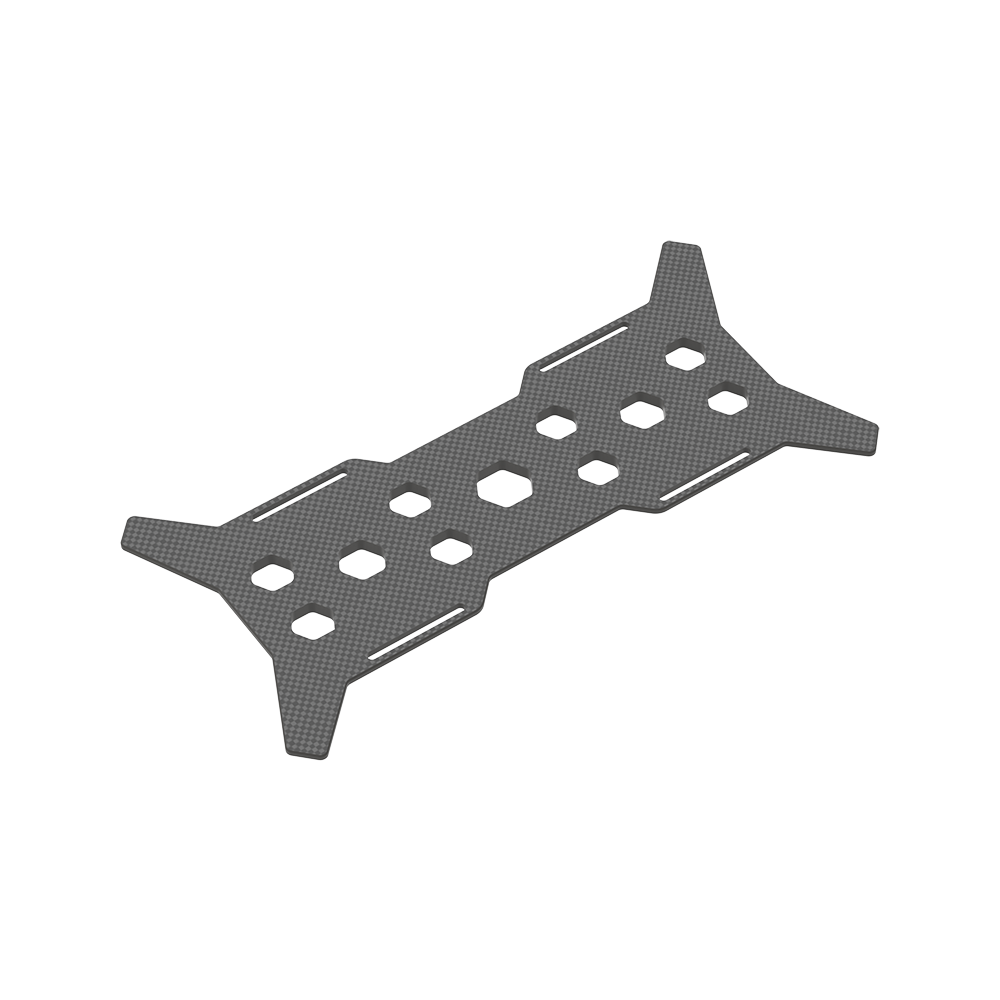

July 26. 2024: The bottom plate. upper plate. screw package. and CNC camera side plate were updated to v1.1. The bottom plate and upper plate thickness increased.

Nov. 2. 2024: DJI Goggles 2 in RTF has been upgraded to DJI Goggles 3.

Highlights

Optimised Motors & Propeller

This latest XING motor was optimised to find the optimum between thrust and efficiency and have been tuned to the 10 inch propeller.

Aero-Shell

The unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train when in use. Users can simply open and close the shell like a door when working on the drone. The idea was to protect the inside but give people the full access when they have to work on the drone.

Innovative A-Frame for Maximum Performance

The frame was scientifically optimised and tested over moths to find the balance between stability and weight. The A-Frame design to minimise vibrations and challenges you have with such big drones.

USB-C Power

A USB-C Plug was added so you can power your action cam when running out of power. This was also built in for potential upcoming new small cameras and make Helion more future proof

DJI O3 HD Air Unit Low-Latency Digital Transmission

Up to 10 km video transmission range. enjoy a crisp and smooth real-time view in your goggles. even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance. it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug

The use of an XT90 connector provides better protection for the circuit.

GPS Pre-Installed for More Safety at A Distance

GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

Specifications

Product Name: Helion10 O3 6S HD

FC: BLITZ F7 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: DJI O3 Air Unit

Geometry: A-Frame

Frame: 418mm wheelbase

Motor: Helion 10 3110 900KV motors

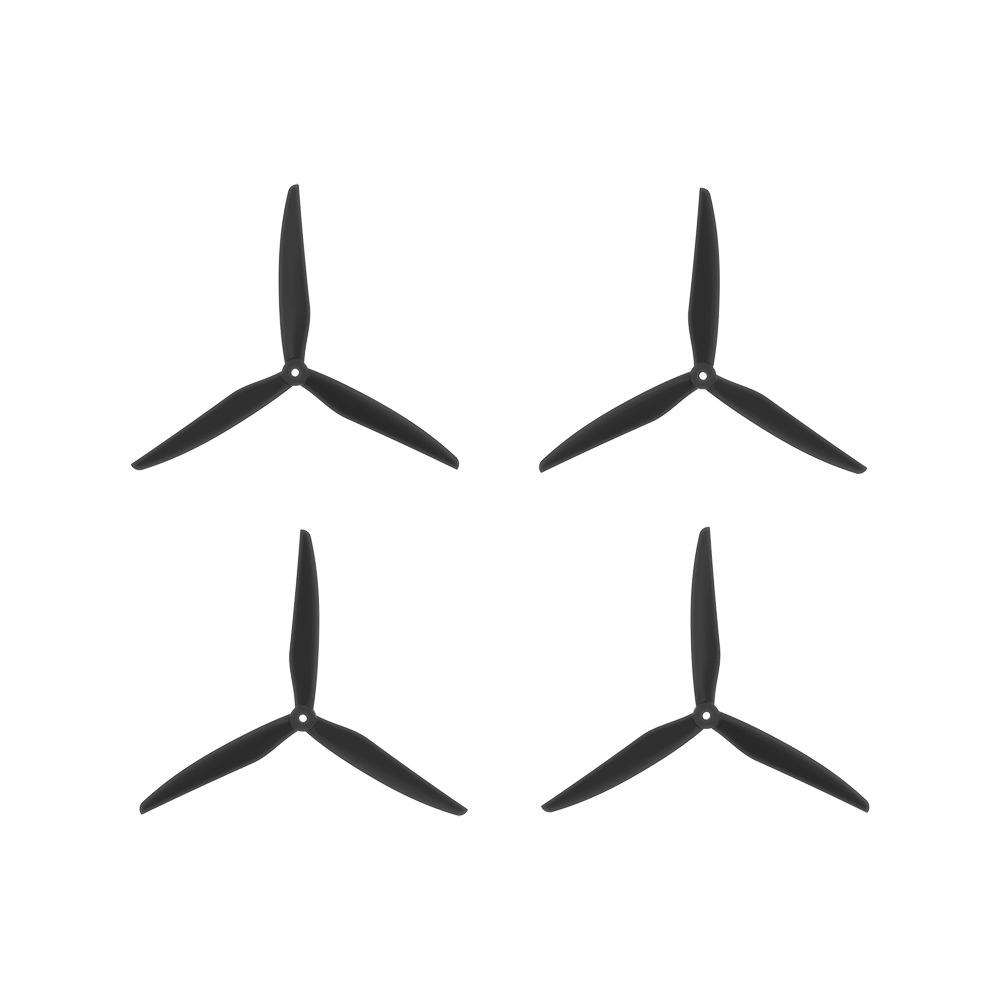

Prop: GEMFAN 1050 propellers

Weight: 950±20g

Takeoff Weight: Approx.1846±5g (With 6S 8000mAh)

Dimensions (L×W×H)：324x264x63mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 26mins with 6S Lipo 5600mAh battery / 30mins with 6S 8000mAh Liion battery

Max Cruising Time: Approx. 23mins with 6S Lipo 5600mAh battery / 26mins with 6S 8000mAh Liion battery

Operating Temperature Range: -20° to 40° C

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Vidieo Transmission

Product Name: DJI O3 Air Unit

Communication Bandwidth: Max 40 MHz

FOV (single screen): 155°

Communication Frequency：2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC). 2 km (CE). 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

FPV Radio

Product Name: Commando 8 ELRS Radio

Weight: 310g (±10g）

Dimentions(LxWxH): L 190 x W 150 x H 51mm

Communication Frequency: 5.725-5.850 GHz

Transmission Power(EIRP):

2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

900MHz:FCC: 30 dBm; CE: <14 dBm; SRRC: <19 dBm

Operating Current/Volts: 0.6 A @ 7.6 V

Charging Time: 1 hour and 30 mini

Operating Time: Approx. 8 hours

Operating Temperature Range: 0°C to 40°C（32°F to 104°F）

Charging Temperature Range: 5°C to 40°C（41°F to 104°F）

FPV Goggles

Product Name: DJI Goggles 3

Weight: Approx. 470 g (battery included)

Dimensions (L×W×H): With antennas folded: 170×109×112 mm (L×W×H)

With antennas unfolded: 205×109×112 mm (L×W×H)

Screen Size (single screen): 0.49 inch

Resolution (single screen): 1920×1080

Refresh Rate: Up to 100 Hz

Interpupillary Distance Range: 56-72 mm

Diopter Adjustment Range: -6.0 D to +2.0 D

FOV (single screen): 44°

Communication Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmission Power (EIRP):

2.4 GHz:< 33 dBm (FCC)< 20 dBm (CE/SRRC/MIC)

5.1 GHz:< 23 dBm (CE)

5.8 GHz:< 33 dBm (FCC)< 30 dBm (SRRC)< 14 dBm (CE)

Max Video Transmission Bitrate: 60 Mbps

Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

Battery Voltage: 5.6-8.4 V

Supported SD Cards: microSD (up to 512 GB)

Packing List

1 x Helion 10 6S HD

1 x Commando 8 ELRS Radio

1 x DJI Goggles 3

2 x Battery pad

2 x GEMFAN 1050 propellers(Pairs)

2 x Battery strap

1 x Screw bag

1 x Amass XT90 to XT60 H Adapter Cable
