About this article

Maximum working width: 800 mm. Maximum working depth 325 mm. Forward speed: 1. Reverse speed: 1. Forward rotation speed: 108 rpm. Reverse rotation speed: 53 rpm.
Dimensions (L x D x H): 1.500 x 837 x 980 mm. Empty weight: 53 kg.
4-stroke OHC engine. Engine model: GP160. Engine displacement: 163 cc. Net motor power: 3.4 kW / 3.600 rpm. Net motor torque: 10.3 Nm / 2.500 rpm. Fuel tank capacity: 2.4 L. Engine oil capacity: 0.58 L. Starting: reminder. Transmission clutch: manual – belt tension. Transmission: constant grip. Final transmission: chain. Sound pressure felt by the operator: 84 dB(A)+. Vibrations: 7 m/sec².

Technical description

Maker

‎HONDA

Reference

‎FG320

Power type

‎Manual

Quantity of items

‎1

Batteries included?

‎No

Battery(ies) / Battery(ies) required

‎No

Weight

‎100 Kilograms

Functioning

Max tillering width (mm)	800
Max tillering depth (mm)	325
Forward speed	1
Rear speed	1
Forward tool rotation speed (rpm or m/s)	108 rpm
Rotation speed of reverse tools (rpm or m/s)	53 rpm

Dimensions

Dimensions (L x W x H) (mm)	1.500 x 837 x 980
Empty weight (kg)	53

ACC

Rotors/cutters supplied	Grinding burrs 6 x 4 teeth
Wheels	Front transport
Plant protection discs	Yes

Engine

Engine	4-stroke OHC
Type of engine	GP160
Displacement (cm³)	163
Net engine power (kW/rpm)	3.4/3.600
Net motor torque (Nm/rpm)	10.3 / 2.500
Fuel tank capacity (Liters)	2.4
Oil tank capacity (Liters)	0.58
Startup	Reminder
Transmission clutch	Manual – belt tension
Transmission	Constant hold
Final transmission	Chain
Acoustic pressure felt by the operator (dB(A))	84
Sound level (dB(A))	96
Vibration (m/s²)	7

Handlebar

PREVIEW
Simple and effective handling

With a compact tiller. you will work large flower beds and large vegetable gardens more easily. Are you a demanding gardener? Try one of these robust. lightweight and highly efficient tillers equipped with 160 cc engines. and enjoy its digging and soil turning performance.

Main Features

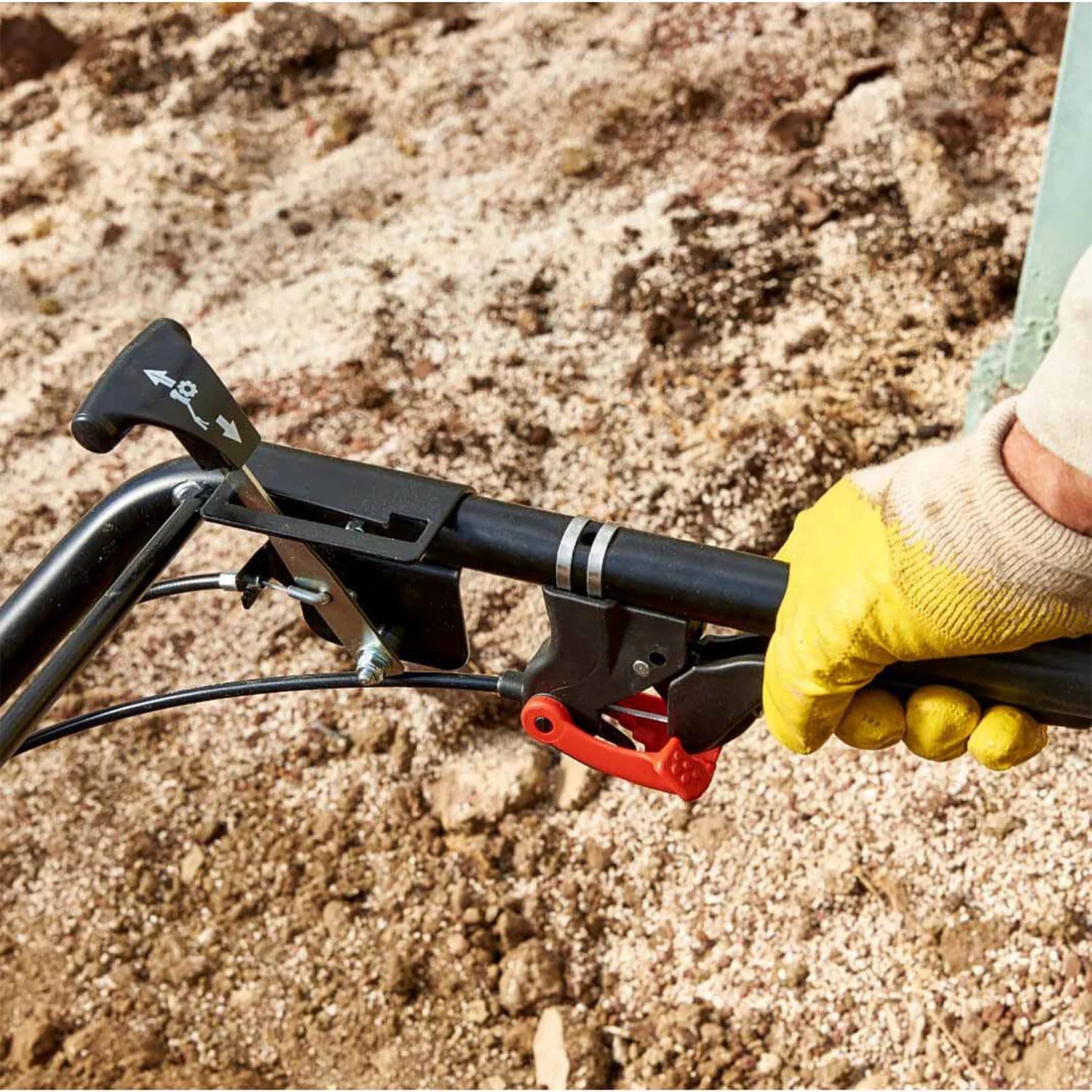

Centralization of controls: switch. thumb accelerator. clutch in 2 movements for easy use
Adjustable handlebar: Adjustable in height and offset to adapt to different body types. Allows it to be used without walking in the work area
GX engine: lightweight. fuel-efficient and quiet micromotors. Equipped with an automatic decompressor
Plant protector: Large diameter to protect plants
Aluminum bridge: reliability and durability
Steel wings: Removable to fit large diameter wheels. Made of steel for greater strength
Working width: Precise work and great maneuverability. Possibility of hoeing. plowing or weeding
Working speed: transmission optimized to adapt to different jobs
