Nazgul DC5 ECO 6S O4 HD – RTF(G3)

In the Box

• Nazgul DC5 ECO

  x 1

• DJI Goggles 3

  x 1

• Commando 8 ELRS Radio

  x 1

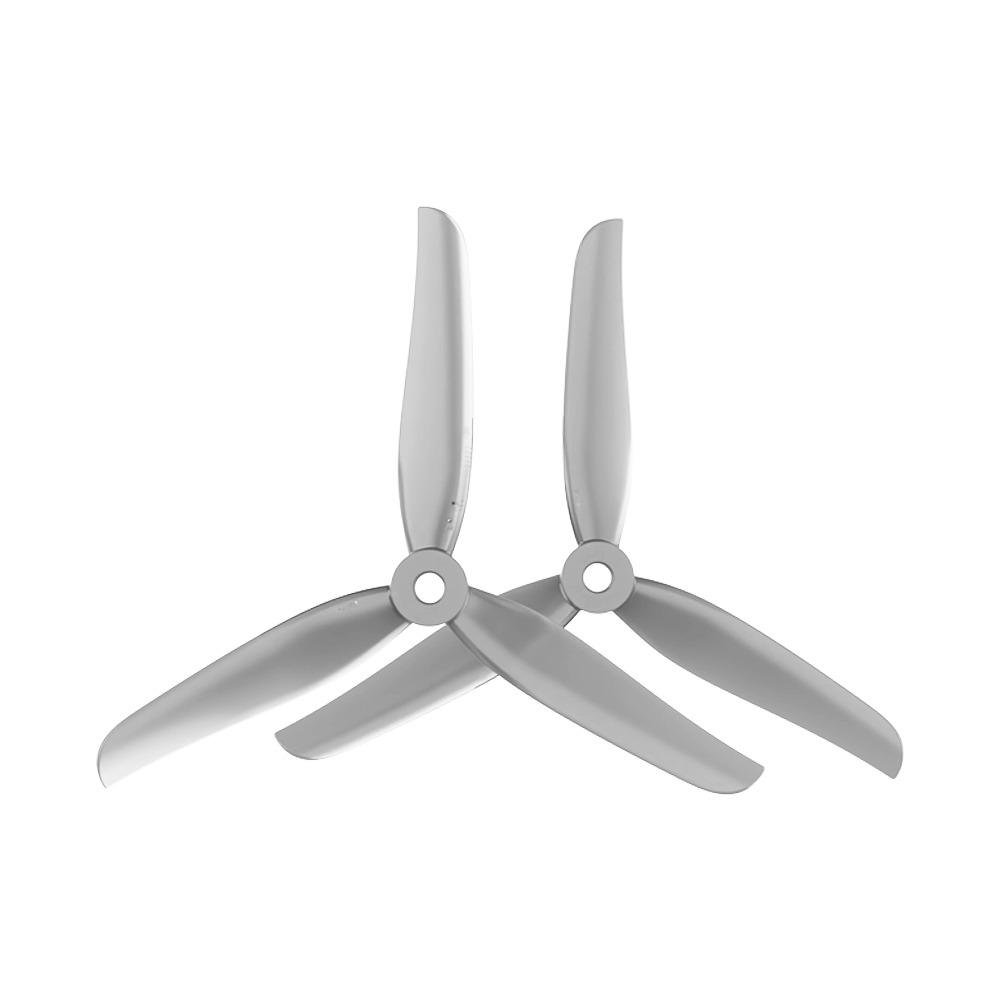

• Nazgul F5 Prop(Pairs)

  x 2 pairs

• 5.8GHz Antenna

  x 2

• Battery strap

  x 1

TRYP Simulator Key Option Note

Because this product is a virtual product. we will send the key via email after the customer receives the Commando 8 package. Therefore. please contact customer service to obtain it after receiving the package.

This key can only be used on Steam.

Descriptions

Nazgul DC5 ECO – a 5-inch freestyle drone that redefines performance and value. Equipped with DJI’s O4 Digital HD System for a clear. propeller-free video feed featuring a 1.1/1.3-inch sensor for stunning 4K stabilized video. even in low light. Its carbon fiber frame with an aluminum camera mount ensures durability while remaining lightweight. and the included GoPro mount adds versatility. Powered by the ATF435 flight controller and BLITZ E55S ESC. it delivers reliable performance.

Changelog

July 19. 2024: Battery Plug mount updated to a fixed form. The Drone upgraded to V1.1.

Sept. 10. 2024: Product upgrade. the side panels will be installed by default.

Sept. 18. 2024: Top Plate updated. same as the top plate of Nazgul5 V3 and Nazgul XL5.

Nov. 2. 2024: DJI Goggles 2 in RTF has been upgraded to DJI Goggles 3.

Highlights

Lightweight and Durable

A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view. enhancing the aesthetic quality of your aerial footage.

Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

DJI O4 HD Air Unit. Enhanced Perception

DJI O4 video transmission’s enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance. a transmission latency as low as 24 ms. 1080p/100fps high-definition image quality. and a maximum transmission bitrate of 60Mbps. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance. it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Enhance user experience and streamline maintenance

Equipped with a built-in buzzer and receiver mount. this feature makes it convenient maintenance and adjustments to the receiver.

Specifications

Product Name: Nazgul DC5 ECO V1.1 6S O4 HD

Geometry: DC (DeadCat)

FC: BLITZ ATF435 Flight Controller

ESC: BLITZ E55S 55A 4-IN-1 ESC

Video Transmission: DJI O4 Air Unit

Frame: 240mm wheelbase

Motor: XING-E Pro 2207 1800KV motors

Prop: Nazgul F5 propellers

Weight: 450g±5g

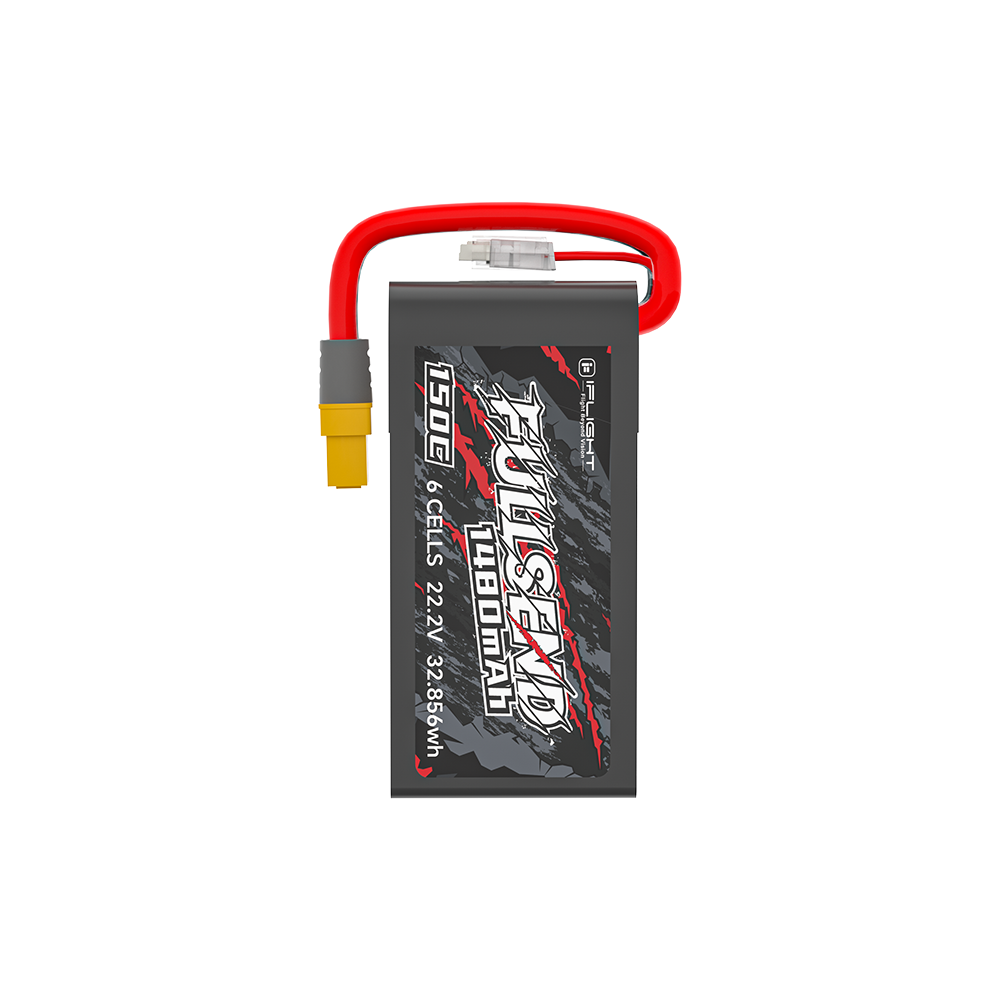

Takeoff Weight: Approx. 675g±5g (With 6S 1400mAh battery)

Dimensions (L×W×H): 193×144×34 mm

Max Speed: 190 km/h (Manual Mode)

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh)

Max Wind Speed Resistance: Level 7

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Dual Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)

Video Transmission

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4. Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled. the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC). 8 km (CE). 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

FPV Radio

Product Name: Commando 8 ELRS V2 Radio

Weight: 310g (±10g)

Dimentions(LxWxH): L 190 x W 150 x H 51mm

Communication Frequency: 5.725-5.850 GHz

Transmission Power(EIRP):

2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

900MHz:FCC: 30 dBm; CE: <14 dBm; SRRC: <19 dBm

Operating Current/Volts: 0.6 A @ 7.6 V

Charging Time: 1 hour and 30 mini

Operating Time: Approx. 8 hours

Operating Temperature Range: 0°C to 40°C（32°F to 104°F）

Charging Temperature Range: 5°C to 40°C（41°F to 104°F）

FPV Goggles

Product Name: DJI Goggles 3

Weight: Approx. 470 g (battery included)

Dimensions (L×W×H): With antennas folded: 170×109×112 mm (L×W×H)

With antennas unfolded: 205×109×112 mm (L×W×H)

Screen Size (single screen): 0.49 inch

Resolution (single screen): 1920×1080

Refresh Rate: Up to 100 Hz

Interpupillary Distance Range: 56-72 mm

Diopter Adjustment Range: -6.0 D to +2.0 D

FOV (single screen): 44°

Communication Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmission Power (EIRP):

2.4 GHz:< 33 dBm (FCC)< 20 dBm (CE/SRRC/MIC)

5.1 GHz:< 23 dBm (CE)

5.8 GHz:< 33 dBm (FCC)< 30 dBm (SRRC)< 14 dBm (CE)

Max Video Transmission Bitrate: 60 Mbps

Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

Battery Voltage: 5.6-8.4 V

Supported SD Cards: microSD (up to 512 GB)

Packing List

1 x Nazgul DC5 ECO V1.1 6S O4 HD BNF

1 x Commando 8 ELRS Radio

1 x DJI Goggles 3

2 x Antennas

1 x Battery pads

2 x Prop(Pairs)
