Nazgul DC5 ECO 6S WTFPV

In the Box

• Nazgul DC5 ECO WTFPV

  x 1

• Battery strap

  x 1

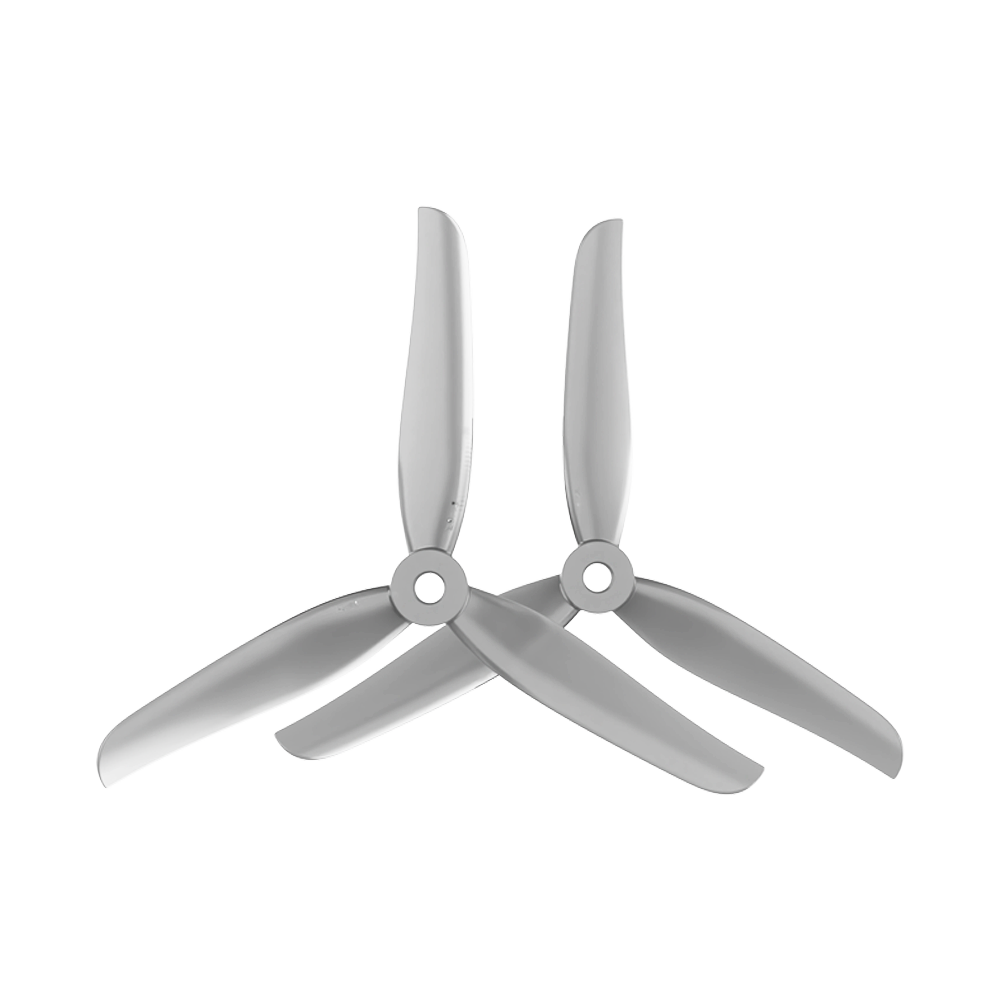

• Nazgul F5 Prop(Pairs)

  x 2

• 5.8GHz Antenna

  x 2

Compatible

This product does not include a camera and video transmission (VTX) system. Customers must install these components separately.

Compatible with:

DJI O4 Air Unit Pro HD system

DJI O3 Air Unit HD system

BLITZ 1.6W VTX

BLITZ Whoop 1.6W VTX

BLITZ Mini Force 600 mW VTX

Description

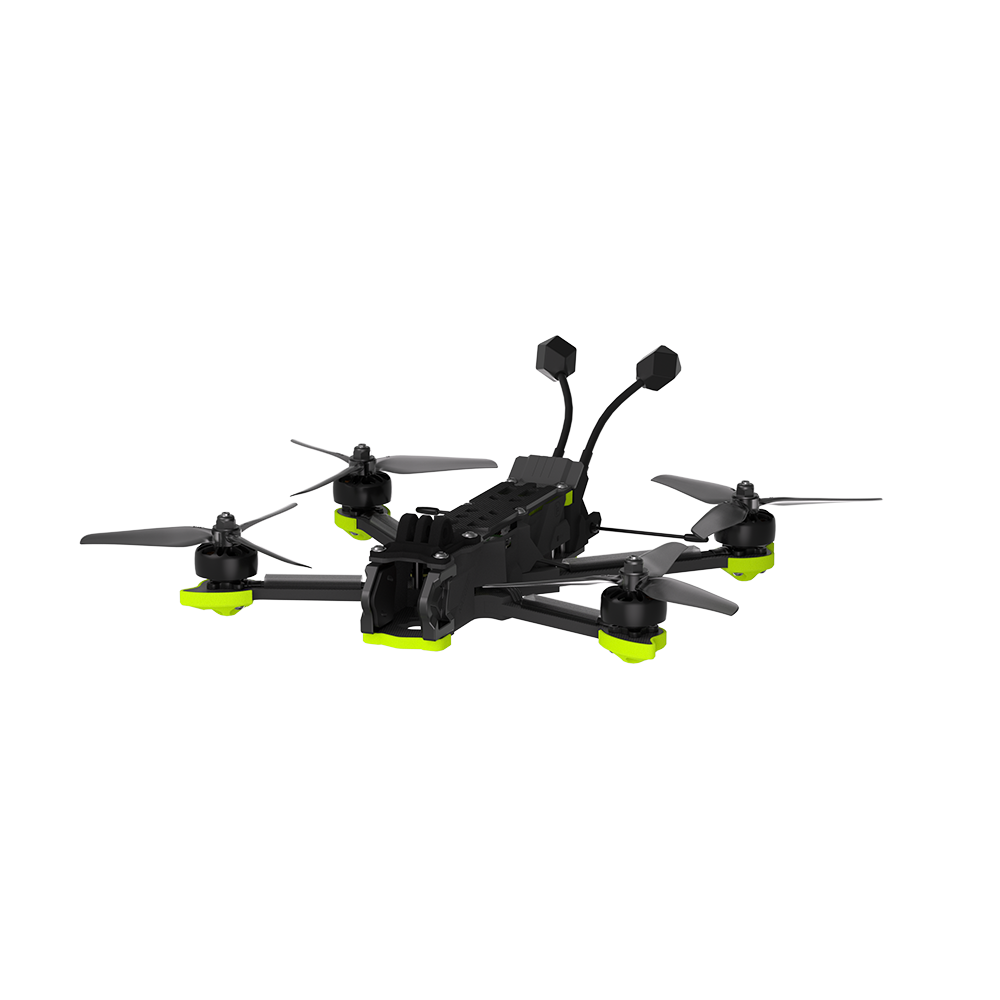

Nazgul DC5 ECO – a 5-inch freestyle drone that redefines performance and value. Its carbon fiber frame with an aluminum camera mount ensures durability while remaining lightweight. and the included GoPro mount adds versatility. Powered by the ATF435 flight controller and BLITZ E55S ESC. it delivers reliable performance.

Features

Lightweight and Durable

A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view. enhancing the aesthetic quality of your aerial footage.

Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Enhance user experience and streamline maintenance

Equipped with a built-in buzzer and receiver mount. this feature makes it convenient maintenance and adjustments to the receiver.

Specificaitons

Product Name: Nazgul DC5 ECO WTFPV

Geometry: DC (DeadCat)

FC: BLITZ ATF435 Flight Controller

ESC: BLITZ E55S 4-IN-1 ESC

Video Transmission and Camera: None

Frame: 240mm wheelbase

Motor: XING-E Pro 2207 1800KV motors

Prop: Nazgul F5 propellers

Weight: 418±5g

Takeoff Weight: Approx. 643±5g (With 6S 1480mAh battery)

Dimensions (L×W×H): 193×144×34 mm

Max Speed: 190 km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 7.5 mins (No Load with 6S 1480mAh)

Max Wind Speed Resistance: Level 7

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Dual Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)

Packing List

1 x Nazgul DC5 ECO V1.1 WTFPV

2 x Antennas

1 x Battery pads

2 x Prop(Pairs)

1 x Screw bag

1 x Cable set

Important

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

Note

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1) Any military combat purpose or military combat related use;

(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.

If Party A has violated applicable export control or economic sanctions laws and regulations. Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.

For more specific content. please check: https://shop.iflight.com/Export-Policy-info
