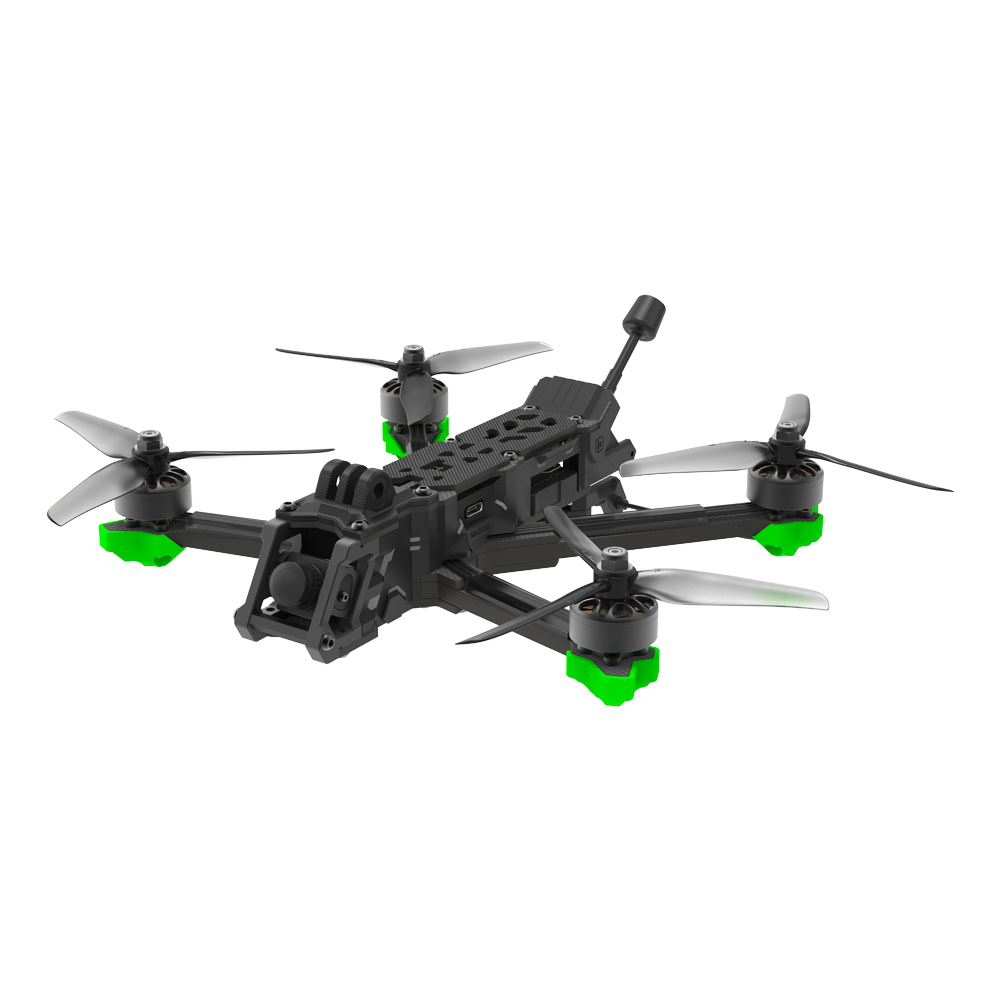

Nazgul Evoque F5 V2 6S

In the Box

• Evoque F5 V2

  x 1

• 5.8GHz FPV Antenna

  x 1

• 5 inch Propeller

  x 2Pairs

• Battery strap

  x 1

• Battery pad

  x 2

Description

Our best pre-built drone just got better! A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts. Welcome to the iFlight experience!

Highlights

Latest Nazgul Frame for Maximum Protection

The old days are over. getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs. preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Changelog

October 20. 2023 : Flight control Blackbox flash capacity changed from 16MB to 8MB.

May 8. 2024 : The Albatross antenna is available in two versions. and will be shipped randomly.

Specification

Product Name: Evoque F5 V2 Analog

FC: BLITZ Mini F722 Flight Controller

ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC

Video Transmission: BLITZ Whoop 1.6W VTX

Frame wheelbase: 225mm (Squashed X) / 223 mm (DeadCat)

Motor: XING-E Pro 2207 1800KV motors

Prop: Nazgul F5 propellers

Weight: 419g

Takeoff Weight: Approx. 644 g (With 6S1400mAh Battery)

Dimensions (L×W×H): 172×145×36±2mm (Squashed X) / 190×136×36±2mm (DeadCat)

Diagonal Distance: 225 mm

Max Speed: 190 km/h (Manual Mode)

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 7.5 mins

Max Flight Distance: 5 km

Max Wind Speed Resistance: Level 7

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Single Antennas

GNSS：GPS+SBAS+Galileo+QZSS+Glonass (Optional)

Video Transmission

Product Name: BLITZ Whoop 1.6W VTX

Input voltage: 7V～34V

Interface: MMCX

Power levels: PIT/25mW/400mW/800mW/1600mW

Channels: 40 (including Raceband)

Mounting pattern: 30.5×30.5mm/Φ3

Lightweight: 18.9g (excluding antenna)

VTX telemetry: IRC Tramp

Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!

RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Packing List

1 x Evoque F5 6S Analog BNF

1 x Antennas

2 x Battery pad

2 x propeller(Pairs)

1 x Battery strap

Important

All iFlight BNFs are tested before shipment to guarantee highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
