Nazgul Evoque F6 V2 6S

In the Box

• Evoque F6 V2

  x 1

• 5.8GHz FPV Antenna

  x 1

• 5.8GHz FPV Antenna

  x 2

• F6 Prop

  x 2Pairs

• Battery strap

  x 2

Description

Our best pre-built drone just got better! A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts. Welcome to the iFlight experience!

A 6-inch drone features longer flight time with a bigger battery and more efficiency with the lower KV motors.

Changelog

May 8. 2024 : The Albatross antenna is available in two versions. and will be shipped randomly.

Highlights

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors. no compromises taken! Durable unibell (one-piece bell) technology. strong titanium alloy shaft with reinforced bell joint. crash resistant 7075 aluminum bell. smooth and long-lasting Japanese NSK bearings. center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Nazgul Frame for Maximum Protection

The old days are over. getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs. preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specification

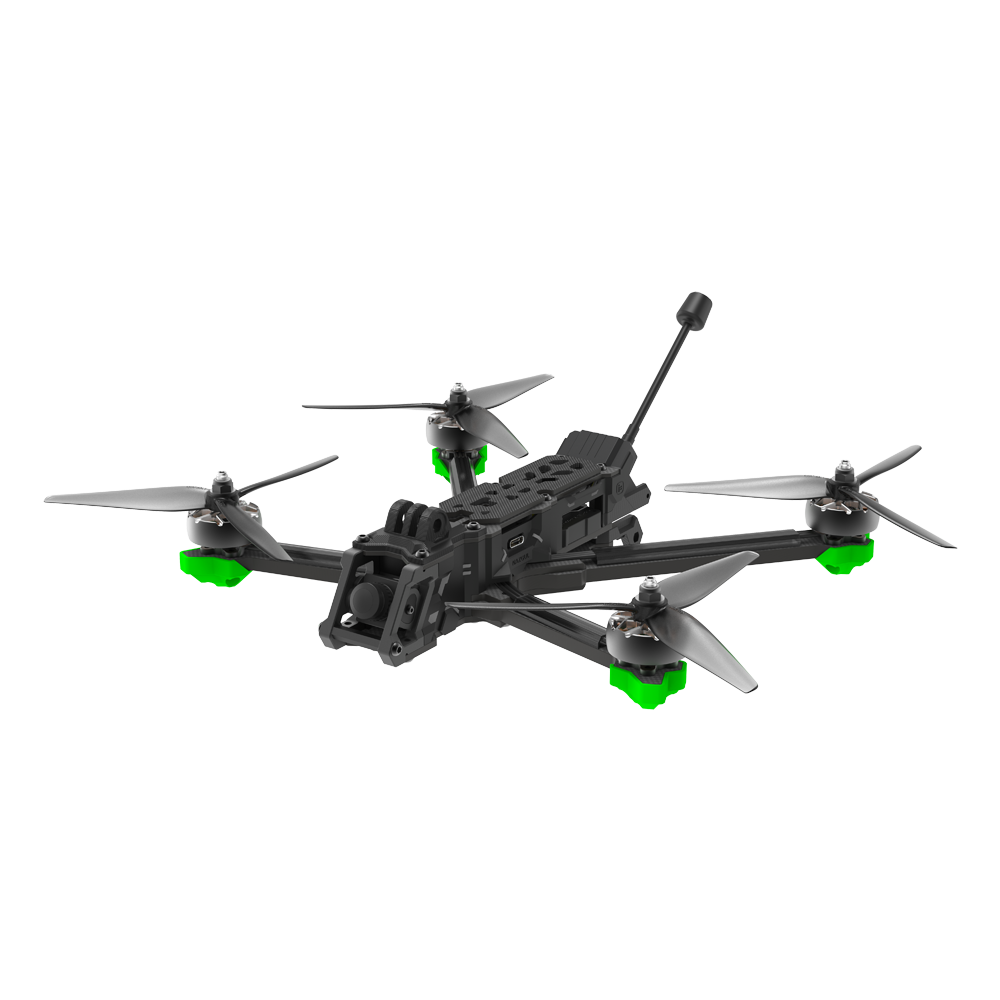

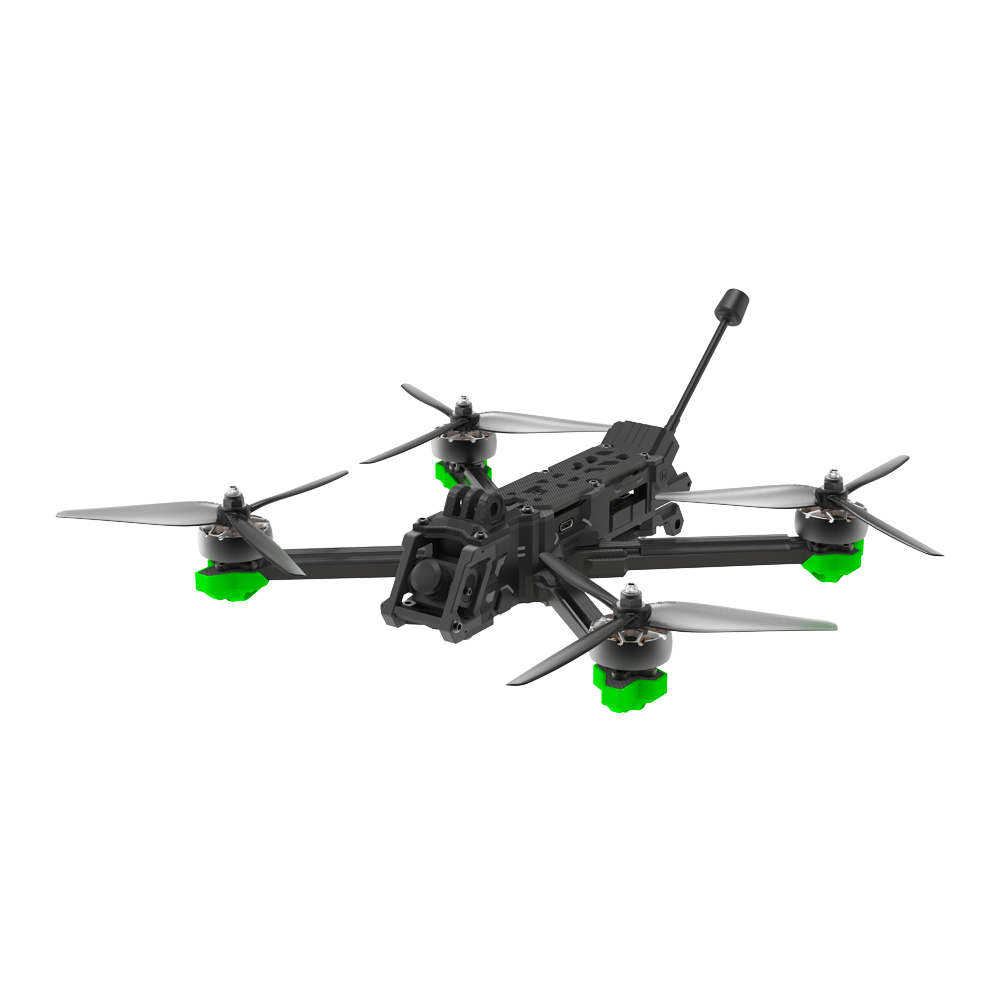

Product Name: Evoque F6 V2 Analog

FC: BLITZ Mini F722 Flight Controller

ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC

Video Transmission: BLITZ Whoop 1.6W VTX

Frame wheelbase: 255mm (Squashed X) / 262 mm (DeadCat)

Motor: XING2 2506 1500KV motors

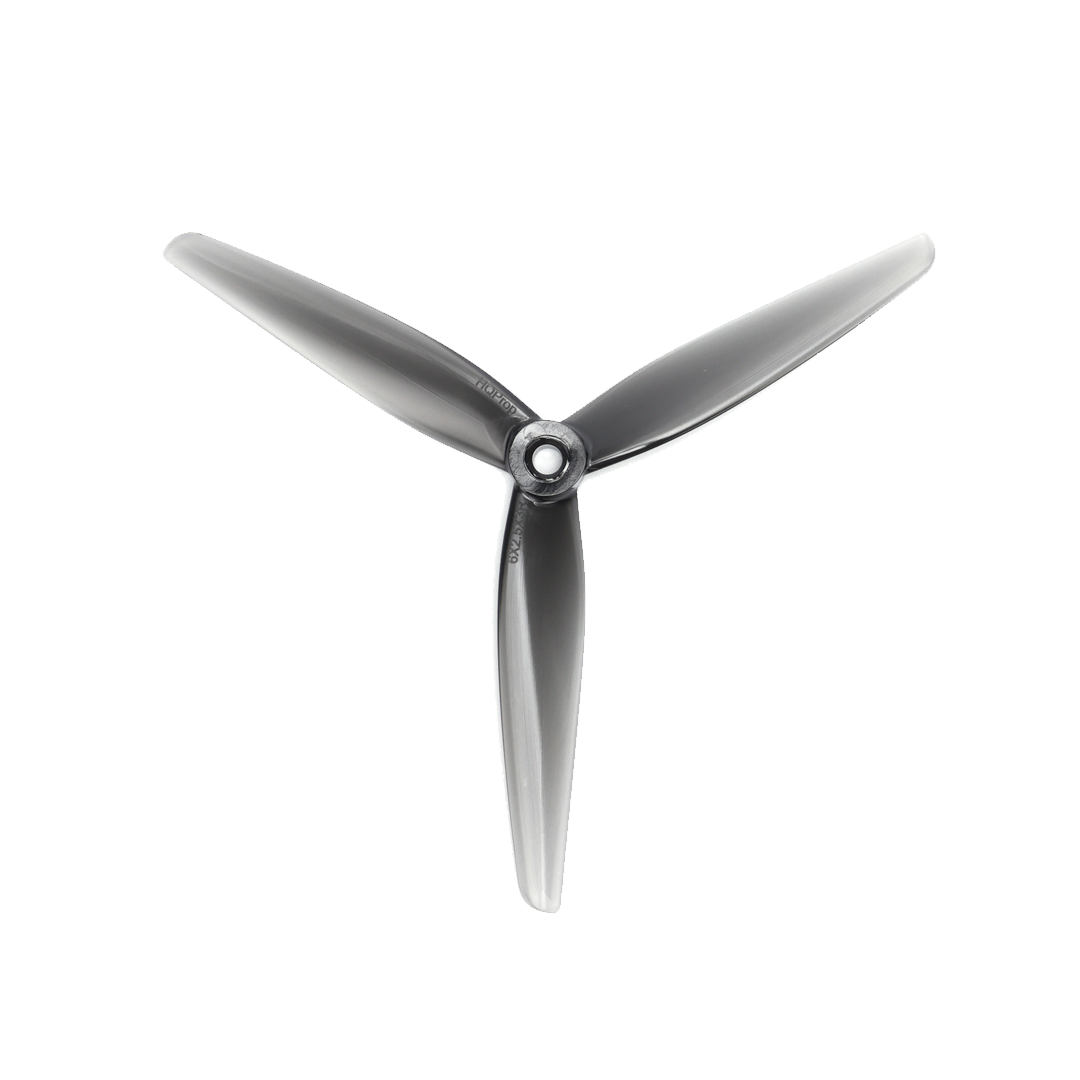

Prop: HQ 6×2.5×3 propellers

Weight: 475g/480g

Dimensions (L×W×H): 196×164×36±2mm (Squashed X) / 209×162×36±2mm (DeadCat)

Max Speed: 180 km/h (Manual Mode)

Maximum Takeoff Altitude: 3200 m

Max Hover Time: Approx. 8.5 mins (With 6S 1400mAh)

Max Flight Distance: 5 km

Max Wind Speed Resistance: Level 7

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Single Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: BLITZ Whoop 1.6W VTX

Input voltage: 5V

Interface: IPEX

Power levels: PIT/25mW/400mW/800mW/1600mW

Channels: 40 (including Raceband)

Mounting pattern: 25x25mm/Φ1.6

Lightweight: 16.5g (excluding antenna)

VTX telemetry: IRC Tramp

Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!

RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Packing List

1 x Evoque F6 6S Analog BNF

1 x Antennas

2 x Battery pad

2 x propeller(Pairs)

2 x Battery strap
