Nazgul XL5 Frame Kit

In the Box

• Nazgul XL5 Frame Kit

  x 1

• Battery strap

  x 2

• Battery pad

  x 2

• Screw bag

  x 1

Description

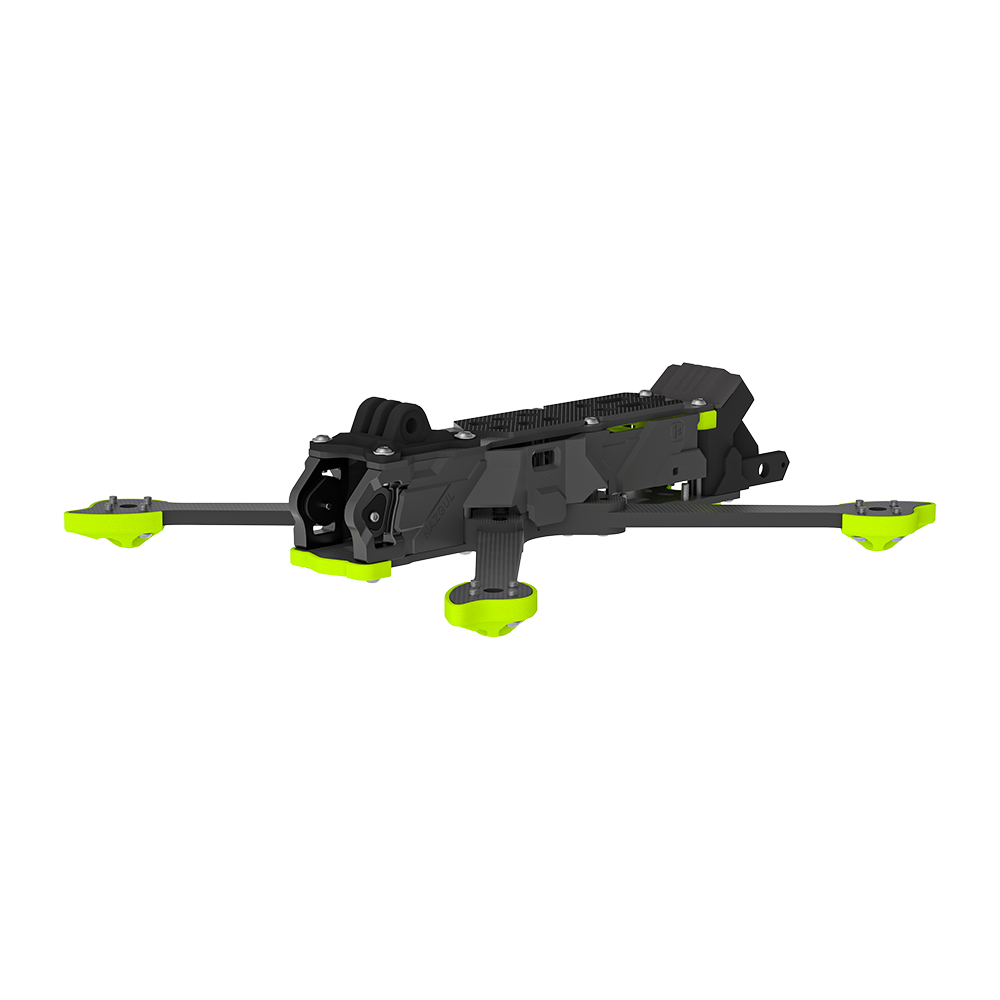

The iFlight Nazgul5 V3/Nazgul XL5 frame is a 5″ freestyle frame. Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5″ prop control.

Highlights

5″ version also fits 5.1″ style propellers

Fits both 30.5×30.5 and 20×20 stacks

Compatible with DJI O3 HD System

5mm arm design for more durability

Popular True-X configuration

LED illuminated Logo

TPU crash-guards

Easy-Swap arms

Changelog

December 13. 2022: New silicone inserts have been designed to replace the TPU ones .which are holding the 03 cam in the side panels.

June 14. 2024: Nazgul5 V3 Frame kit is renamed Nazgul XL5 Frame Kit.

July 15. 2024: Battery Plug mount updated to a fixed form. The frame kit upgraded to V1.1.

Specifications

Product Name: Nazgul XL5 V1.1 Frame Kit

Geometry: True-X

Wheelbase: 245mm

Frame Dimension: L173*W173*H34 mm

Arm Thickness: 5mm

Bottom Plate Thickness: 2.5mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Max Flight Stack Height: 22mm

Max VTX Height: 29mm

Motor Mounting：16x16mm

VTX Mounting：30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm

Weight: 233g (Included no TPU Parts)

Packing List

1 x Nazgul XL5 V1.1 Frame Kit

1 x GoPro TPU Base Mount

1 x Screw Bag

4 x TPU Armguard

1 x Bottom Plate Front Protection TPU

1 x Bottom Plate Rear Protection TPU

1 x Anti-slip Battery Pad

4 x Motor Wire Shield Tube

2 x Battery Strap(20*250mm)

Note

Due to manufacturing processes. the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
