ProTek35 V1.4 6S

In the Box

• ProTek35 V1.4

  x 1

• Nazgul 3535 Propeller(Pairs)

  x 2

• Battery Strap

  x 2

• Antenna

  x 1

• Battery Pads

  x 2

• Screws Bag

  x 1

Descriptions

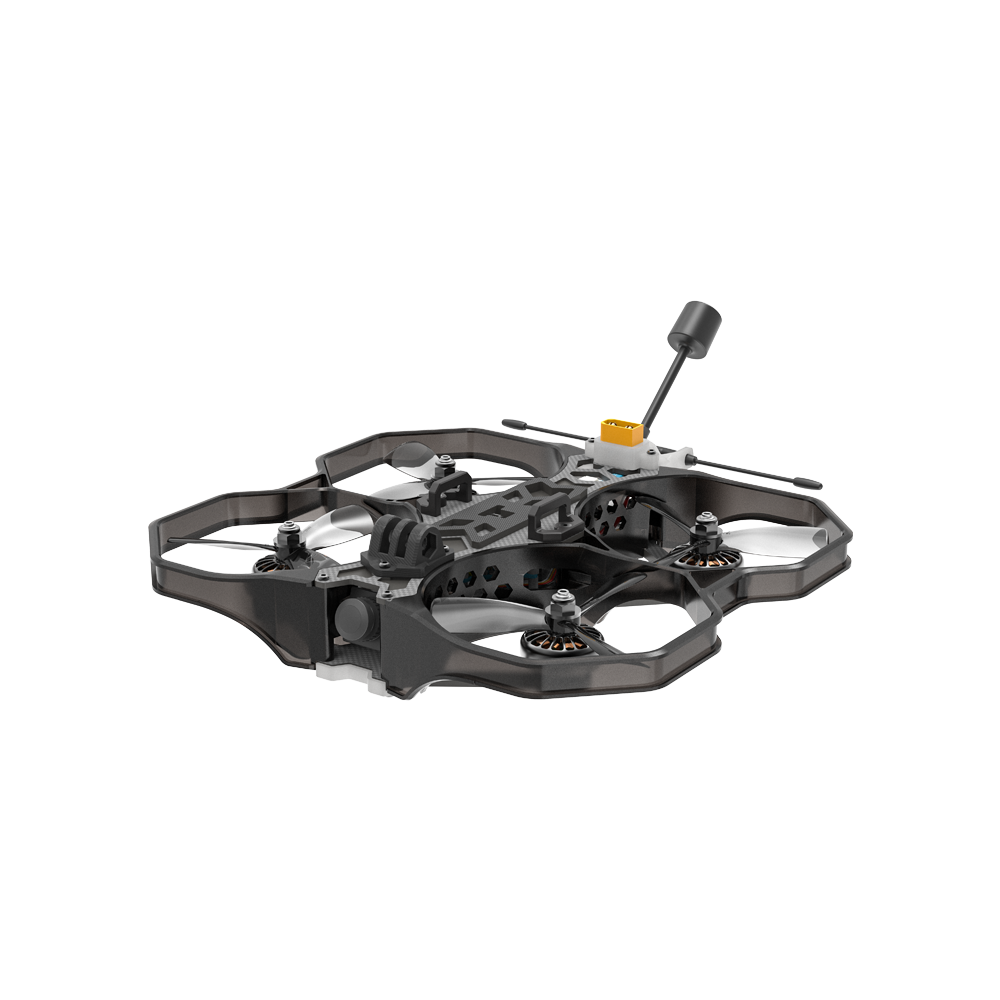

The Protek CineWhoop has a longer flight experience and weighs less than the previous cinewhoops! The new version of Protek35 has been released. featuring the Secured Battery Plug function.

iFlight was able to increase the speed and thrust by 50% compared to its 3-inch predecessor which gives a lot more room for a lot more fun; as a result. the ProTek35 is equipped with the Butter Smooth 2205 2300KV Motors. It also features the RaceCam R1 Mini FPV Camera. BLITZ whoop F7 AIO. 55A 2-6S ESC. 5.8GHz BLITZ Mini 600mW VTX. Nazgul 3535 propellers. and more!

Changelog

May 8. 2024 : The Albatross antenna is available in two versions. and will be shipped randomly.

Highlights

No Props or frame in view!

Secured Battery Plug and CNC bracket – Easy to install battery straps

High-performance True-AIO Board BLITZ F7 AIO 55A to save weight and space

T700 Quality Carbon – 40% more tensile strength compared to common 3K carbon

Lightweight one-piece frame design – Less flexibility. more Rigid. more Durable

Low Resonance frame construction – Less Jello. more Cinematic footage

RaceCam R1 Mini FPV Camera 19*19

Pre-tuned with smooth freestyle settings

Specifications

Product Name：ProTek35 V1.4 6S Analog

AIO: BLITZ Whoop F7 AIO

Video Transmission: BLITZ Mini 600mW VTX

Frame: 151mm wheelbase

Motor: XING 2205 2300KV motors

Prop: Nazgul 3535 propellers

Weight: 335±5g

Takeoff Weight: Approx.560±5g (With 6S 1400mAh)

Dimensions (L×W×H): 217×194×32.5 mm

Max Speed: 140 km/h (Manual Mode)

Maximum Takeoff Altitude：5000 m

Max Hover Time: Approx. 6 mins (With 6S 1400 battery no load)

Max Wind Speed Resistance：Level 4

Operating Temperature Range：-10° to 40° C (14° to 104° F)

Antennas: Single Antenna

GNSS: N/A

Video Transmission

Product Name： BLITZ Mini 600mW VTX

Output Power：PIT/25mW/200mW/400mW/600mW

Input Volts：5V

Working Current：≤pit @80mA .≤25mw@280mA .≤100mw@405mA .≤400mw@485mA .≤600mw@575mA

Transmission fre：40CH(A-B-E-F-R)

Antenna Interface： MMCX

Mounting Hole：20×20/Φ3mm/ 25×25/Φ2mm

Weight： 4 grams (Without antenna)

Dimensions： L29mm*W29mm

Packing List

1 x ProTek35 V1.4 6S Analog BNF

1 x 3.5 inch prop (2 pairs)

2 x Battery pad

2 x Battery strap

Important

Don’t worry about tuning. we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

To restore lost tunes or updates. please check our linked article on “Firmware/Factory Dumps”

Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!

Please check our linked article on “How to disable Angle-Mode. activate Acro-Mode”
