ProTek35 V1.4 O3 6S HD

In the Box

• ProTek35 V1.4

  x 1

• Nazgul 3535 Propeller(Pairs)

  x 2

• Battery Strap

  x 1

• Antenna

  x 1

• Battery Pads

  x 2

• Screws Bag

  x 1

Descriptions

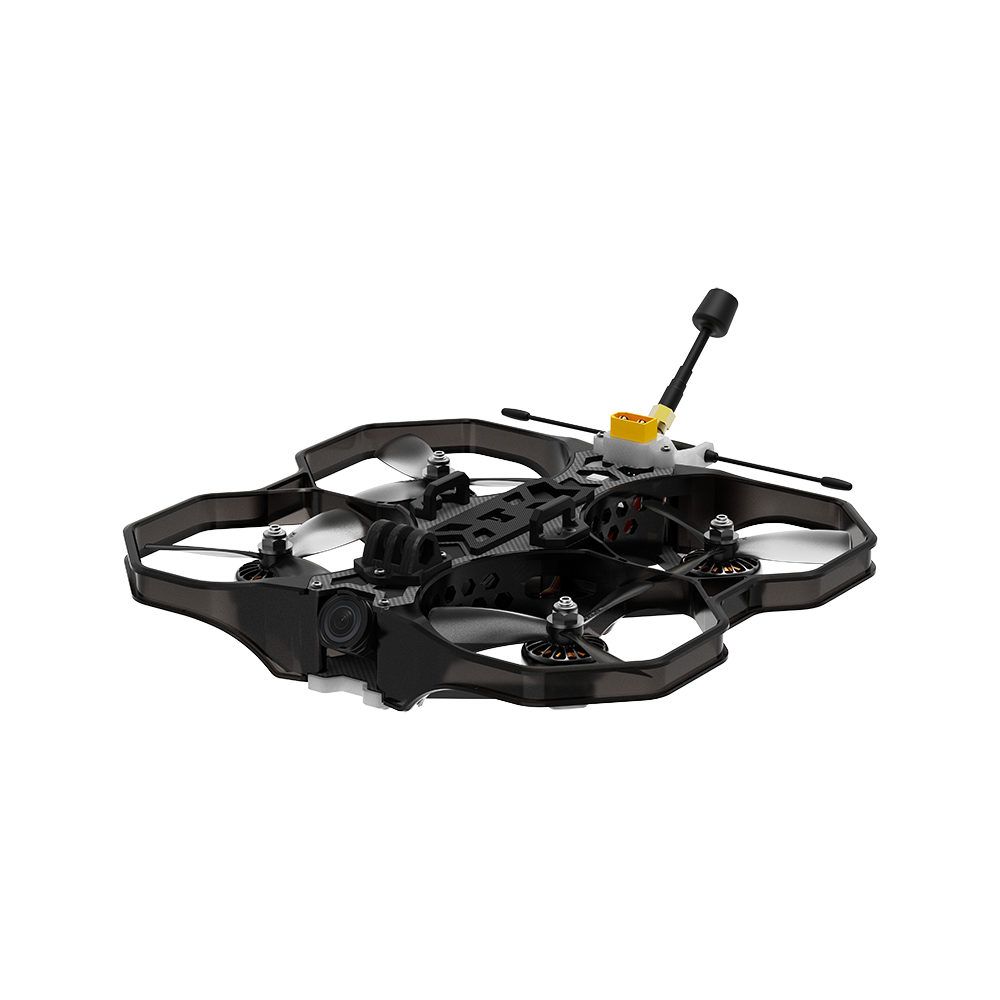

The Protek CineWhoop has a longer flight experience and weighs less than the previous cinewhoops! The new version of Protek35 has been released. we upgraded the frame to be compatible with DJI O3 air unit.

iFlight was able to increase the speed and thrust by 50% compared to its 3-inch predecessor which gives a lot more room for a lot more fun; as a result. the ProTek35 is equipped with the Butter Smooth 2205 2300KV Motors. It also features the DJI O3 air unit. BLITZ whoop F7 AIO. 55A 2-6S ESC. Nazgul 3535 propellers. and more!

Changelog

May 8. 2024 : The Albatross antenna is available in two versions. and will be shipped randomly.

Highlights

No Props or frame in view!

DJI O3 HD Air Unit Low-Latency digital transmission

Secured Battery Plug and CNC bracket – Easy to install battery straps

High-performance True-AIO Board BLITZ F7 AIO 55A to save weight and space

T700 Quality Carbon – 40% more tensile strength compared to common 3K carbon

Lightweight one-piece frame design – Less flexibility. more Rigid. more Durable

Low Resonance frame construction – Less Jello. more Cinematic footage

Specifications

Product Name: ProTek35 V1.4 O3 6S HD

AIO: BLITZ Whoop F7 AIO

Video Transmission: DJI O3 Air Unit

Frame: 151mm wheelbase

Motor: XING 2205 2300KV motors

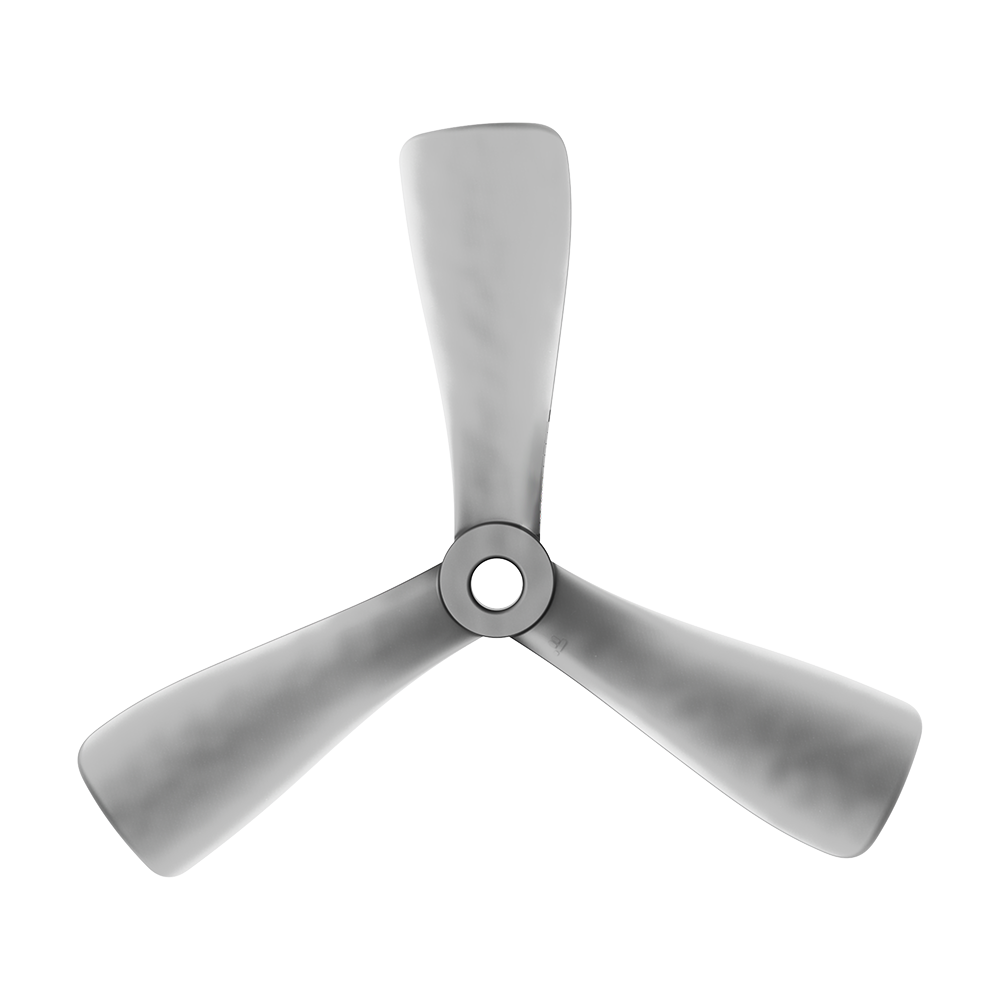

Prop: Nazgul 3535 propellers

Weight: 363±5g

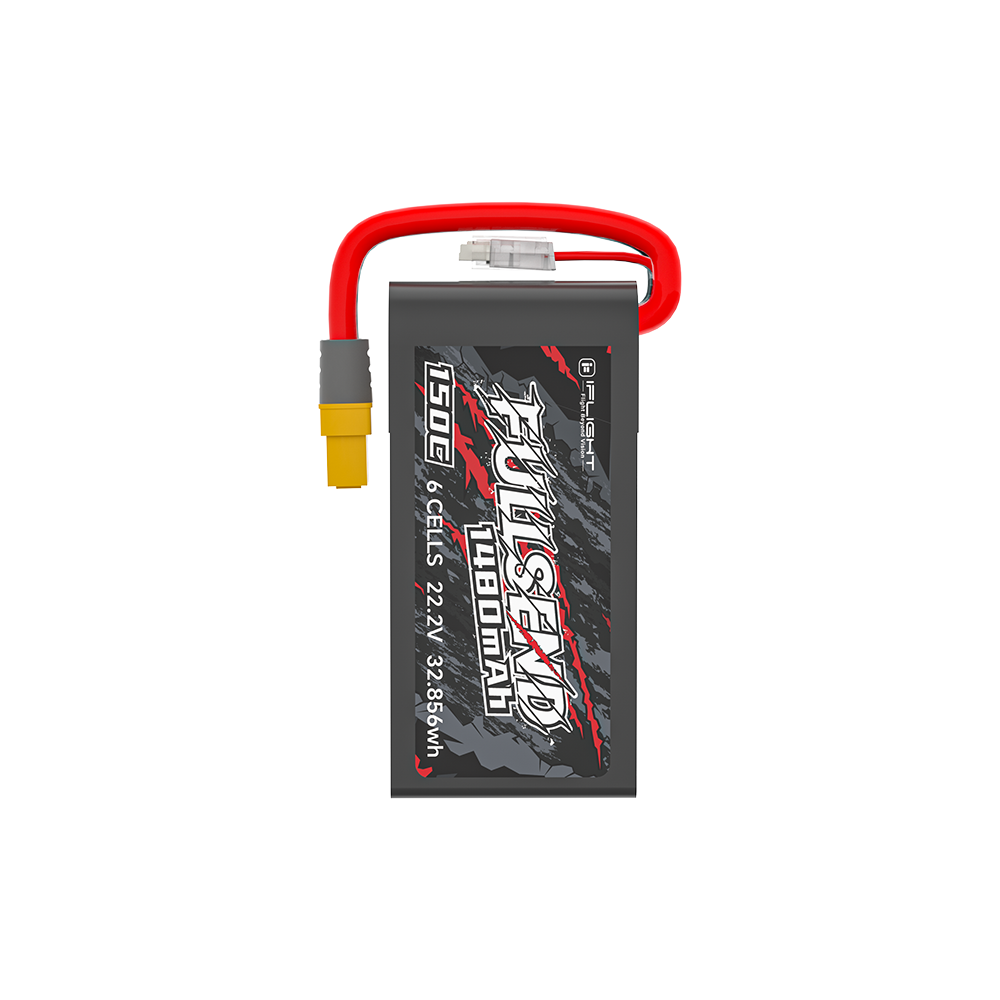

Takeoff Weight: Approx.588±5g (With 6S 1400mAh)

Dimensions (L×W×H): 217×194×32.5 mm

Max Speed: 140 km/h

Maximum Takeoff Altitude: 5000 m

Max Hover Time: Approx. 6 mins（With 1400 battery no load）

Max Wind Speed Resistance: Level 4

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Single Antenna

GNSS: N/A

Video Transmission

Product Name: DJI O3 Air Unit

Weight: Approx. 36.4 grams（headband included）

Communication Bandwidth： Max 40 MHz

FOV (single screen): 155°

Communication Frequency：2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC). 2 km (CE). 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

Packing List

1 x ProTek35 V1.4 O3 6S HD BNF

1 x 3.5 inch prop (2 pairs)

2 x Battery pad

1 x Battery strap

Pre-tuned & Presetup

Don’t worry about tuning. we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

To restore lost tunes or updates. please check our linked article on “Firmware/Factory Dumps”

Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!

Please check our linked article on “How to disable Angle-Mode. activate Acro-Mode”
