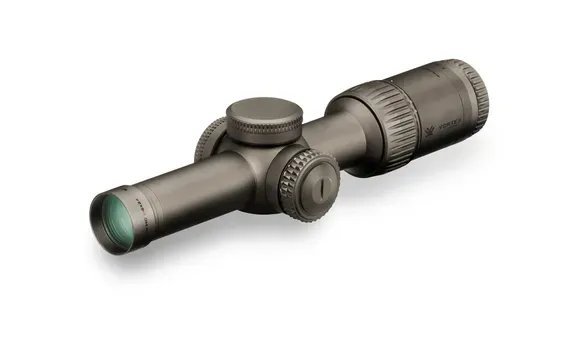

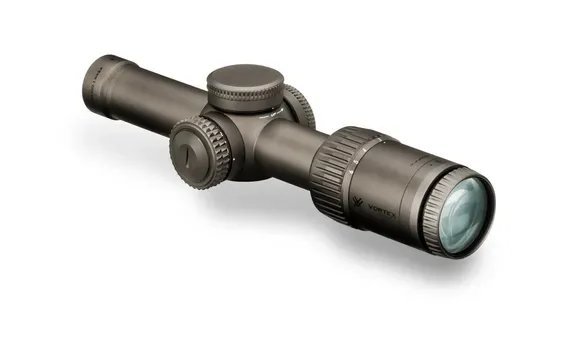

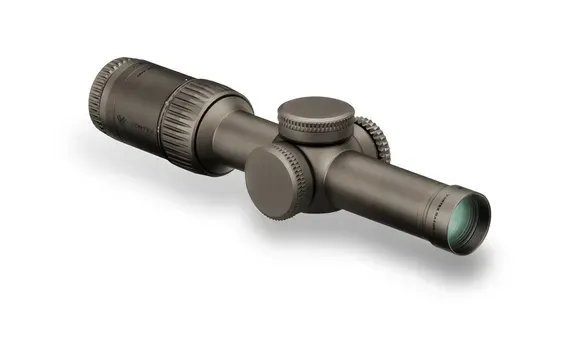

At nearly 1/4 pound lighter than the original Razor HD Gen II 1-6×24. the “E” (Enhanced) model allows for quicker transitions between targets and less arm fatigue during long days on the range. Perfect for the AR platform. the Gen II-E 1-6 is a top-tier optical solution for short to medium range tactical applications. Optically. it delivers the highest level of clarity. resolution. color accuracy. light transmission and edge-to-edge sharpness. True 1x on the low end is complimented by an ultra-forgiving eyebox with generous eye relief for a heads-up-display-like sight picture and a daylight bright illuminated center dot in the reticle for extremely fast target acquisition in close quarters. Ultra-sleek and built like a tank on a 30mm. aircraft-grade aluminum tube. the Razor HD Gen II-E 1-6×24 features ultra-low profile. capped windage and elevation turrets for streamlined performance. Zero-resettable turrets offer 50 MOA (20 MRAD) of adjustment in a single turn. ensuring ample travel.
Razor HD Gen II-E 1-6×24 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 10.1 | 2.50 | 1.5 | 5.67 | 0.85 | 3.6 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.29 | 1.81 |
| Magnification | 1-6x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Reticle | VMR-2 (MRAD) |
| Turret Style | Low Capped |
| Tube Size | 30 mm |
| Adjustment Graduation | .2 MRAD |
| Parallax Setting | 100 yards |
| Max Windage Adjustment | 43 MRAD |
| Max Elevation Adjustment | 43 MRAD |
| Travel Per Rotation | 20 MRAD |
| Field of View | 115.2-20.5 ft/100 yds |
| Eye Relief | 4 inches |
| Length | 10.1 inches |
| Weight | 21.5 oz |
| Aluminum Grade | Aircraft |
|---|---|
| APO System | Index-matched lenses correct color across the entire visual spectrum. |
| ArmorTec® | Ultra-hard. scratch-resistant coating protects exterior lenses from scratches. oil and dirt. |
| Erector Tube System | Precision-machined from aircraft grade aluminum with anti-galling properties for a lighter weight. strong. durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs and al |
| Fricion Reduction System | Heat-treated. hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and |
| Multi-Coated | XR™ Plus Fully Multi-Coated |
| HD Lens Elements | HD |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| Plasma Tech | Cutting edge coating application process provides unparalleled coating durability and performance |
| Shockproof | Rugged construction withstands recoil and impact. |

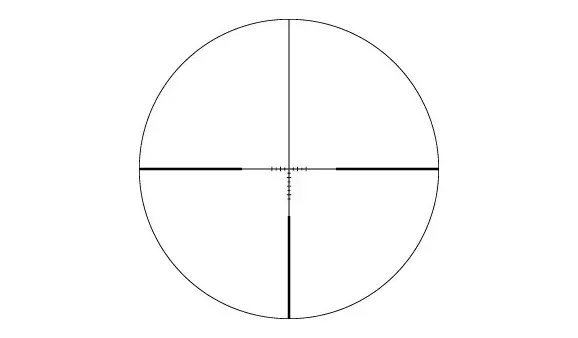

VMR-2 (MRAD)
The VMR-2 is a hashmarked ranging reticle with an illuminated center dot that uses MRAD-based subtension lines for ranging. holdover and windage corrections.
Subtension detail for Razor HD Gen II-E riflescope with VMR-2 MRAD reticle.
INCLUDED IN THE BOX
- CR2032 battery
- Lens cloth
| Size | JM-1 BDC, VMR-2 (MOA), VMR-2 (MRAD) |
|---|
