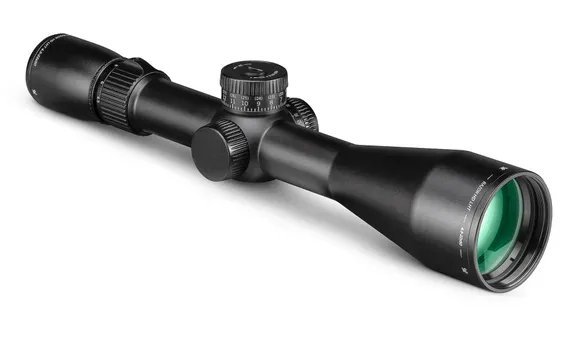

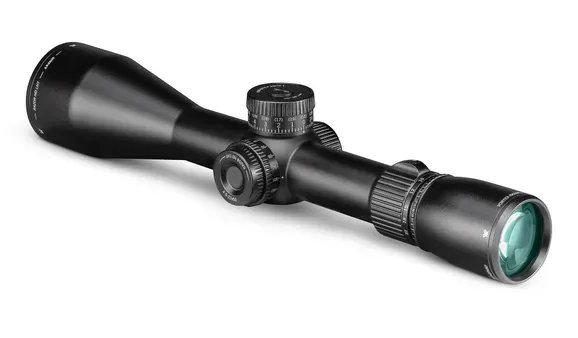

Western hunting demands an optic built for long range and the long haul. and the Razor® HD LHT™ 4.5-22×50 FFP delivers. You still get the core of the Razor® HD LHT™. including a stunning HD optical system and rugged build in a hunting scope that’s among the lightest in its class. Where the Razor® HD LHT™ 4.5-22×50 FFP distances itself is in offering more magnification. and a first focal plane reticle featuring the XLR-2 reticle system. which is intuitive. easy to use. and illuminated. You also get our RevStop™ Zero System for a reliable return to zero after dialing in the field. and a locking elevation turret keeps your zero safe.
Razor HD LHT 4.5-22×50 FFP Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 13.3 | 1.9 | 2.2 | 5.6 | 3.4 | 4.2 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.3 | 1.7 |
| Magnification | 4.5-22x |
|---|---|
| Objective Lens Diameter | 50 mm |
| Reticle | XLR-2 (MOA) |
| Turret Style | Capped |
| Tube Size | 30 mm |
| Adjustment Graduation | 1/4 MOA |
| Parallax Setting | 25 yards to infinity |
| Max Windage Adjustment | 45 MOA |
| Max Elevation Adjustment | 75 MOA |
| Travel Per Rotation | 15 MOA |
| Field of View | 23.5-4.7 ft/100yds |
| Eye Relief | 4.0 inches |
| Length | 13.3 inches |
| Weight | 21.7 oz |
| Elevation Travel Per Rotation | 15 MOA |
| Windage Travel Per Rotation | 15 MOA |
| Aluminum Grade | Aircraft |
|---|---|
| APO System | Index-matched lenses correct color across the entire visual spectrum. |
| ArmorTec® | Ultra-hard. scratch-resistant coating protects exterior lenses from scratches. oil and dirt. |
| Multi-Coated | XR™ Plus Fully Multi-Coated |
| HD Lens Elements | HD |
| Shockproof | Rugged construction withstands recoil and impact. |
XLR-2 (MOA)
The XLR-2 reticle is an illuminated. long-range reticle with elevation and windage reference subtensions. Great for long-range shooters and hunters who prefer to hold for bullet-drop and wind at distance.
Subtension detail for Razor HD LHT 4.5-22×50 FFP riflescope with XLR-2 MOA reticle.
INCLUDED IN THE BOX
- Tethered Lens Covers
- Sunshade
- Lens Cloth
- RevStop Zero Ring
- CR2032 Battery
