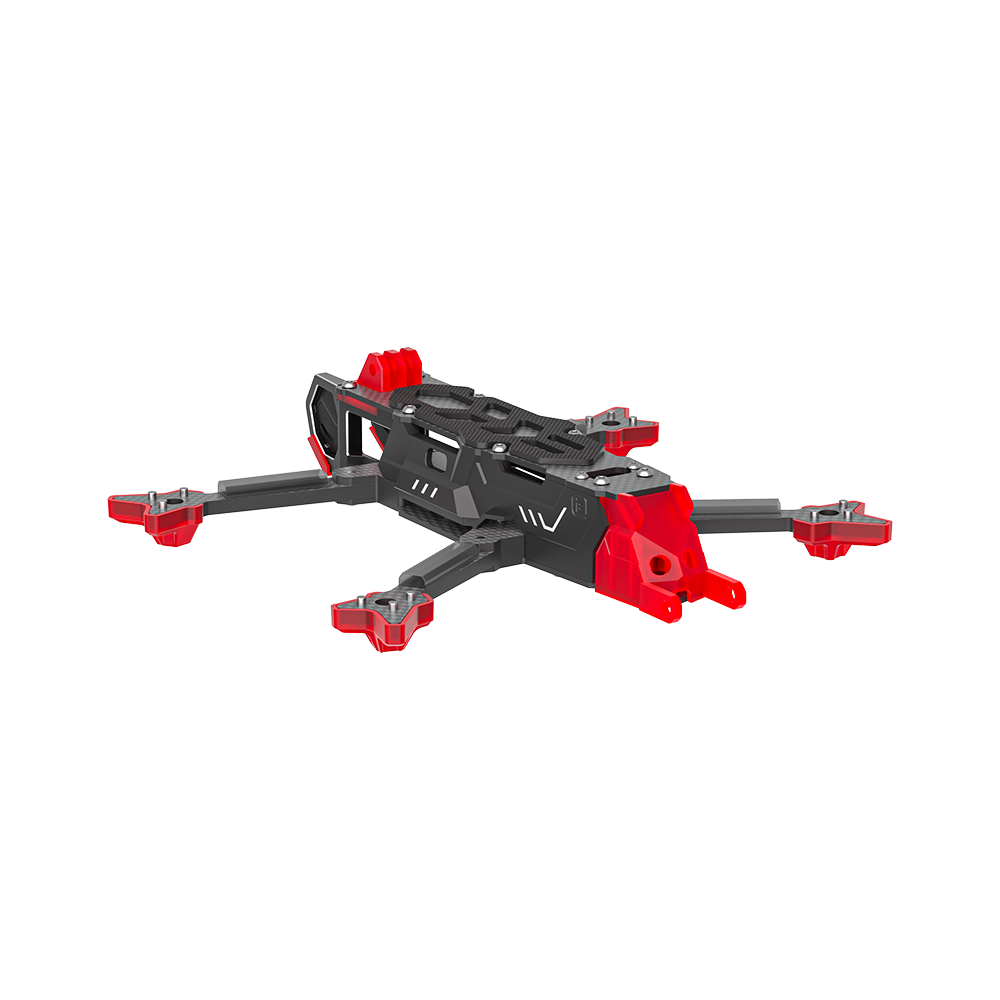

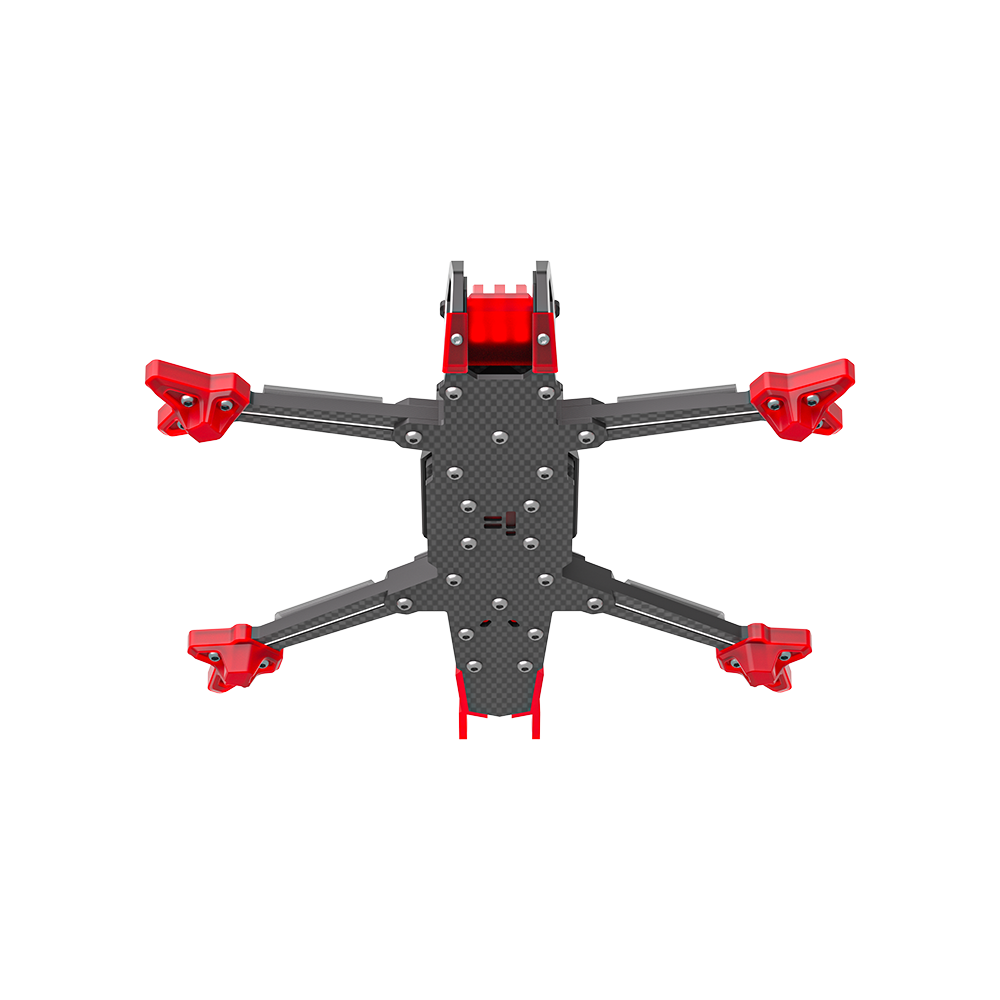

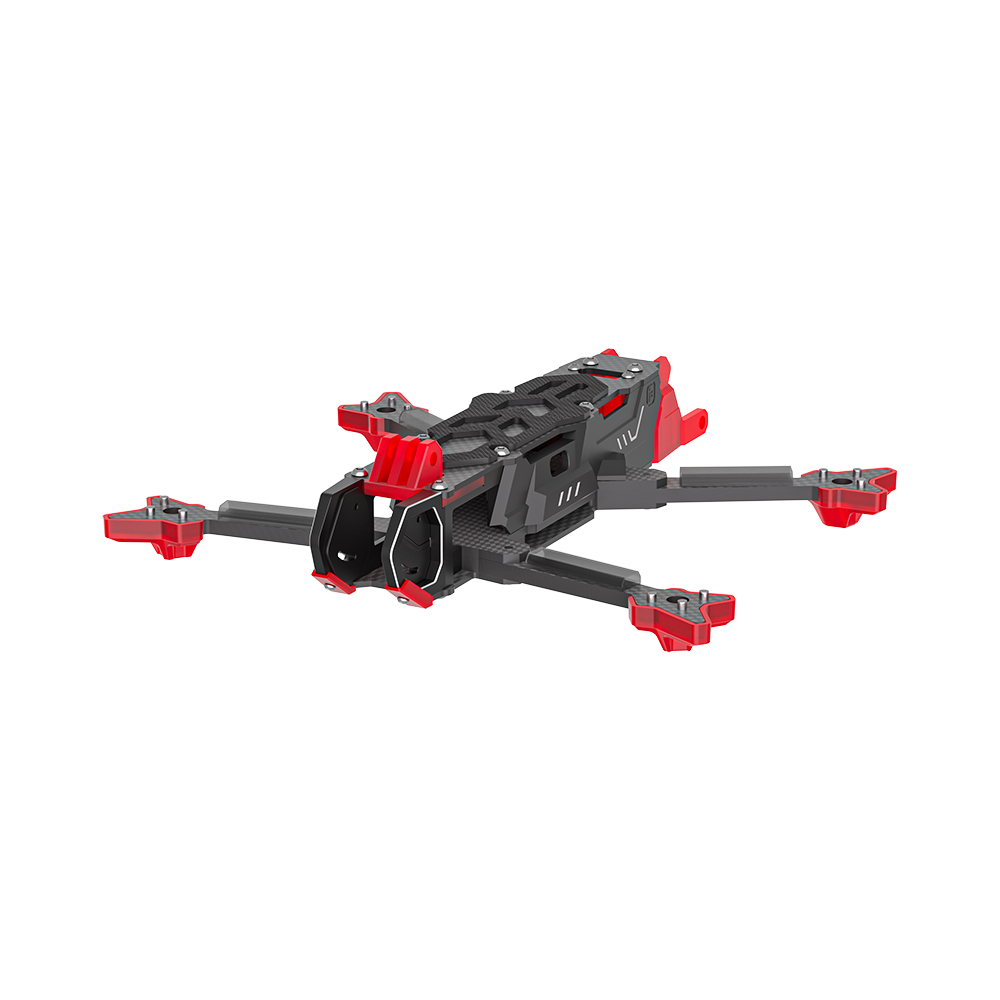

SH CineFlow 5 O4 Frame Kit

Description

The SH CineFlow 5 Frame Kit offers limitless possibilities. unleashing lightning-fast speed and unparalleled performance. When combined with the advanced DJI O4 Air Unit for video transmission. it delivers ultra-high-definition resolution. allowing you to explore vast landscapes and waterways. The SH Series features an innovative frame design that eliminates propeller visibility. enhancing your aerial experience.

Changelog

Mar.11. 2025 : The material of some TPU Parts in Frame is changed to injection molded parts.

Features

Quick-release side panels

Provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.

Integrated Action Camera Base Mount

Sleek and integrated design. redefine aesthetics.

Rear-mounted Power Connector

Optimized weight distribution for improved flight stability and precision.

Reinforced Arm Base

Strengthened the connection between the arm base and the drone to improve durability.

Specificaitons

Product Name：SH CineFlow 5 O4 Frame Kit

Wheelbase: 222mm

Frame Dimension: L182*W133*H42 mm

Arm Thickness: 5mm

Bottom Plate Thickness: 2mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Mid-Lower Plate Thickness: 5mm

Max Flight Stack Height: 20mm

Max VTX Height: 22mm

Flight Stack Mounting: 20*20/Φ3mm

Motor Mounting: 16*16/Φ3mm

VTX Mounting: 25.5*25.5/Φ2mm

Weight: 220g±5g

Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit

Packing List

1 x SH CineFlow 5 Frame Kit

2x IPEX to RP-SMA Antenna Pigtails

1 x TPU Set

1 x GoPro TPU Base Mount

1 x Screw Bag

2 x Anti-slip Battery Pad

2 x Battery Strap

Tolerance Note

Due to manufacturing processes. the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
