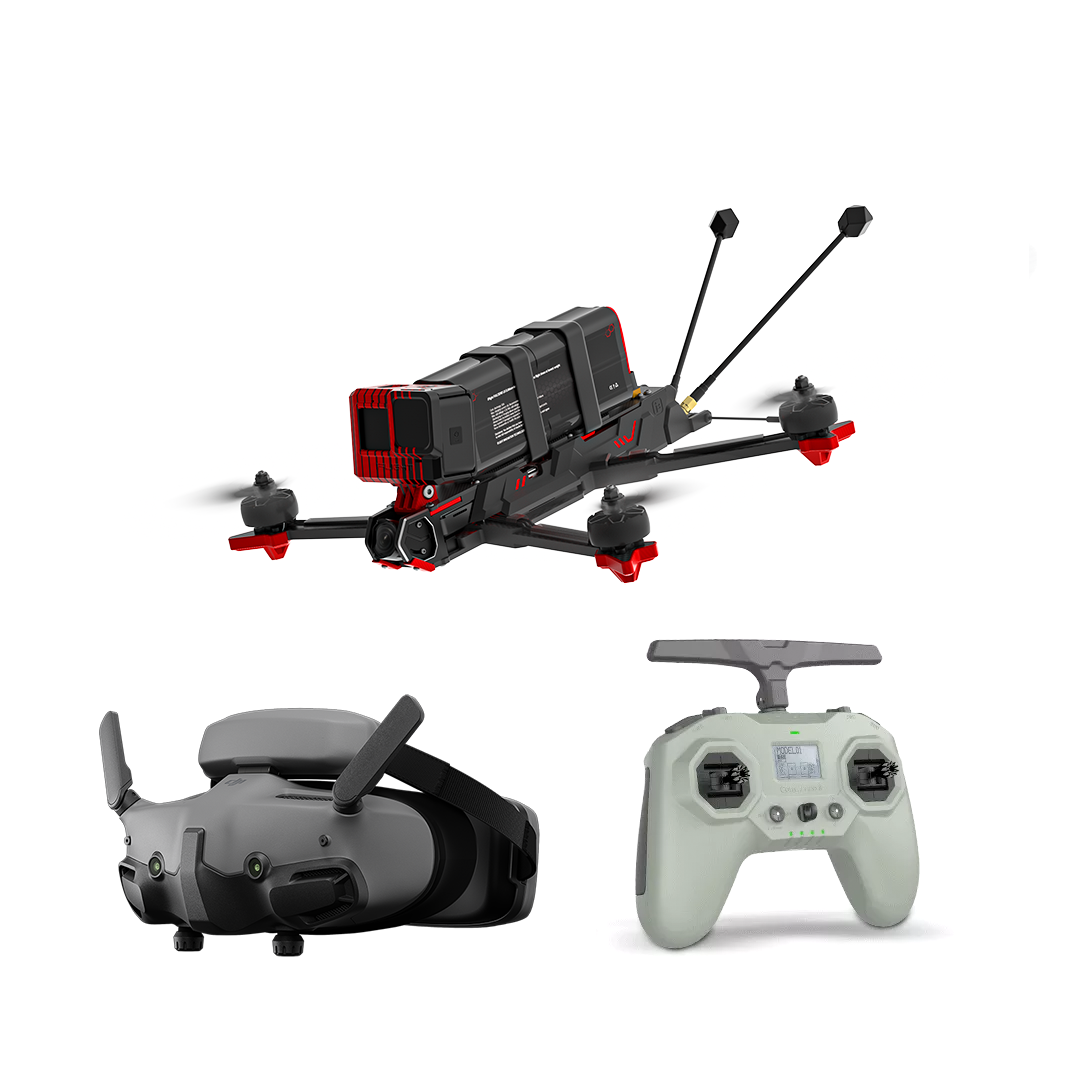

SH CineLR 7 O4 6S HD – RTF(G3)

In the Box

• SH CineLR 7

  x 1

• DJI Goggles 3

  x 1

• Commando 8 ELRS Radio

  x 1

• Battery Strap

  x 2

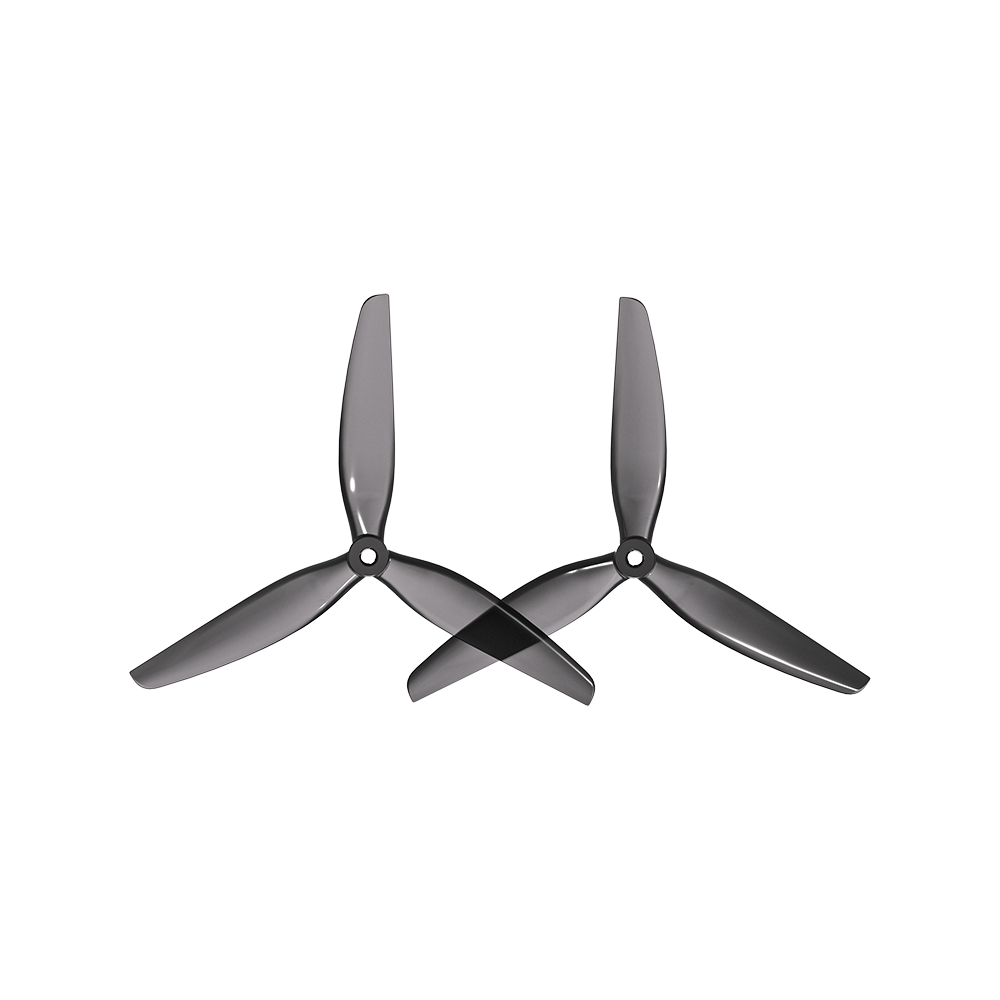

• HQ 7.5X3X3 Propeller(Pairs)

  x 2

• Antennas

  x 2

Description

iFlight’s new generation FPV drone. the 7-inch long-range CineLR 7. combines sleek design. easy maintenance. and a high-performance electronics system. Designed for immersive FPV experiences and professional video recording. CineLR 7 delivers exceptional flight performance and cinematic-quality footage. Whether you’re tackling freestyle tricks. high-speed pursuits. or long-range filming. CineLR 7 is engineered to meet diverse flying needs with precision and reliability.

Changelog

Mar.11. 2025: The material of some TPU Parts in BNF is changed to injection molded parts.

Highlights

Innovative Frame Design. No Props in View

SH Series adopted innovative frame design with no props in view while allowing flexibility for freestyle tricks. With balanced motor output. provide enhanced overall flight performance.

Quick-release Side Panels

Quick-release side panels provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.

4K Stabilized Video

SH Series equipped with the latest DJI O4 Pro Air Unit. upgraded with 1.1/1.3-inch image sensor. it captures delicate details in low-light environments. With a 155° ultra-wide angle. capturing breathtaking visuals. Enjoy real-time video transmission with up to 1080p/100fps for an immersive flying experience. (Source DJI)

Up to 25mins Long-range Flight Time

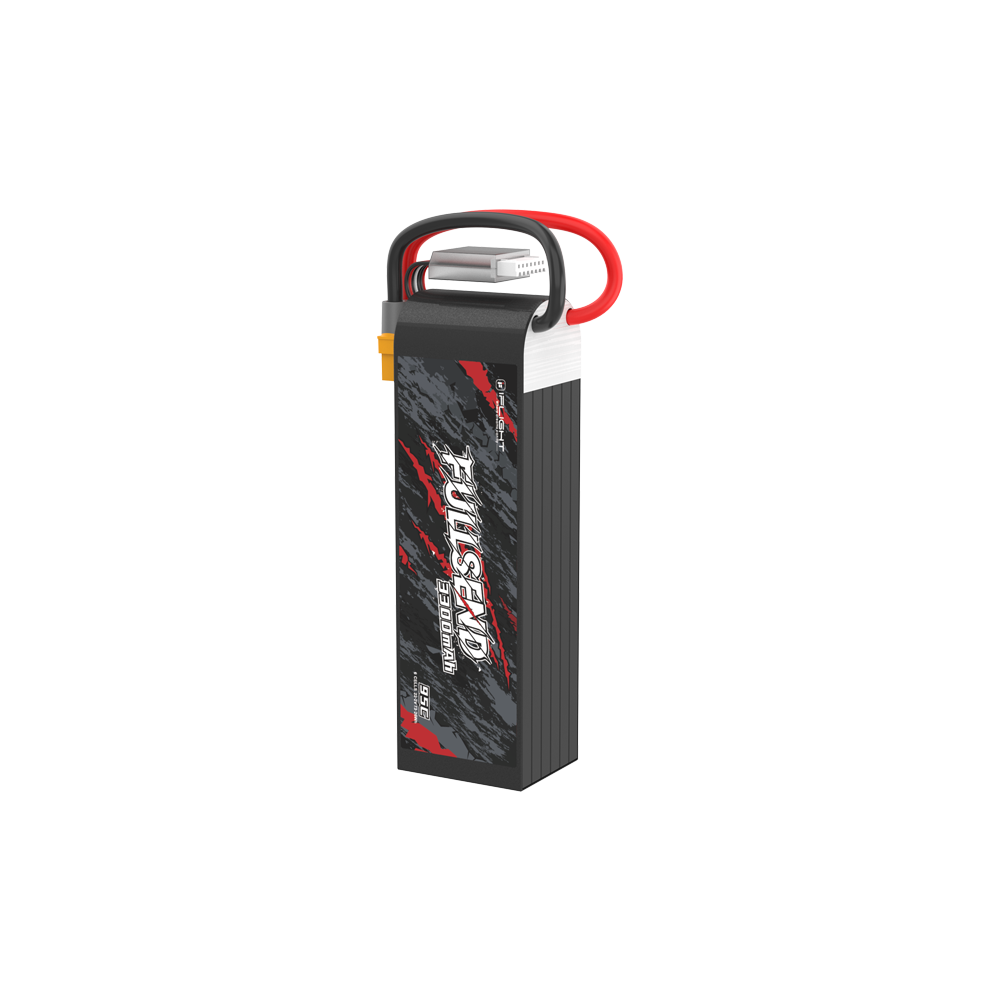

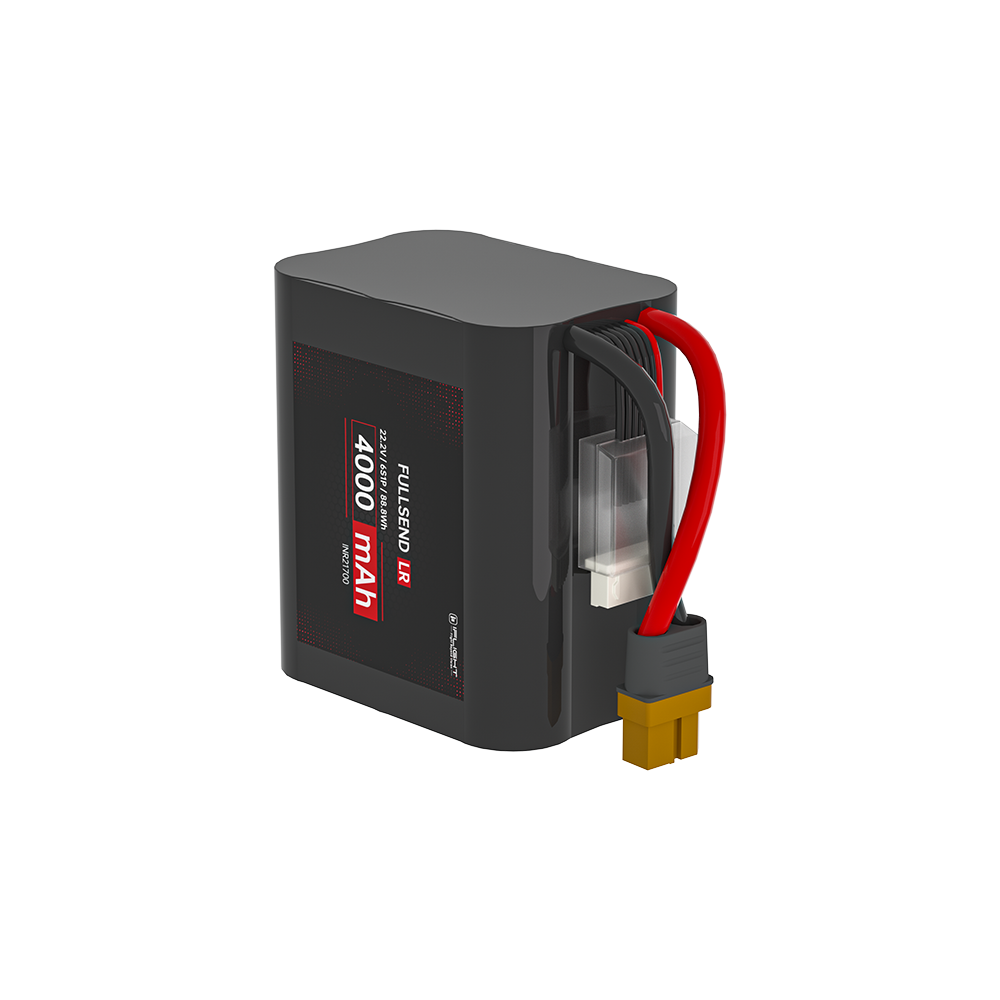

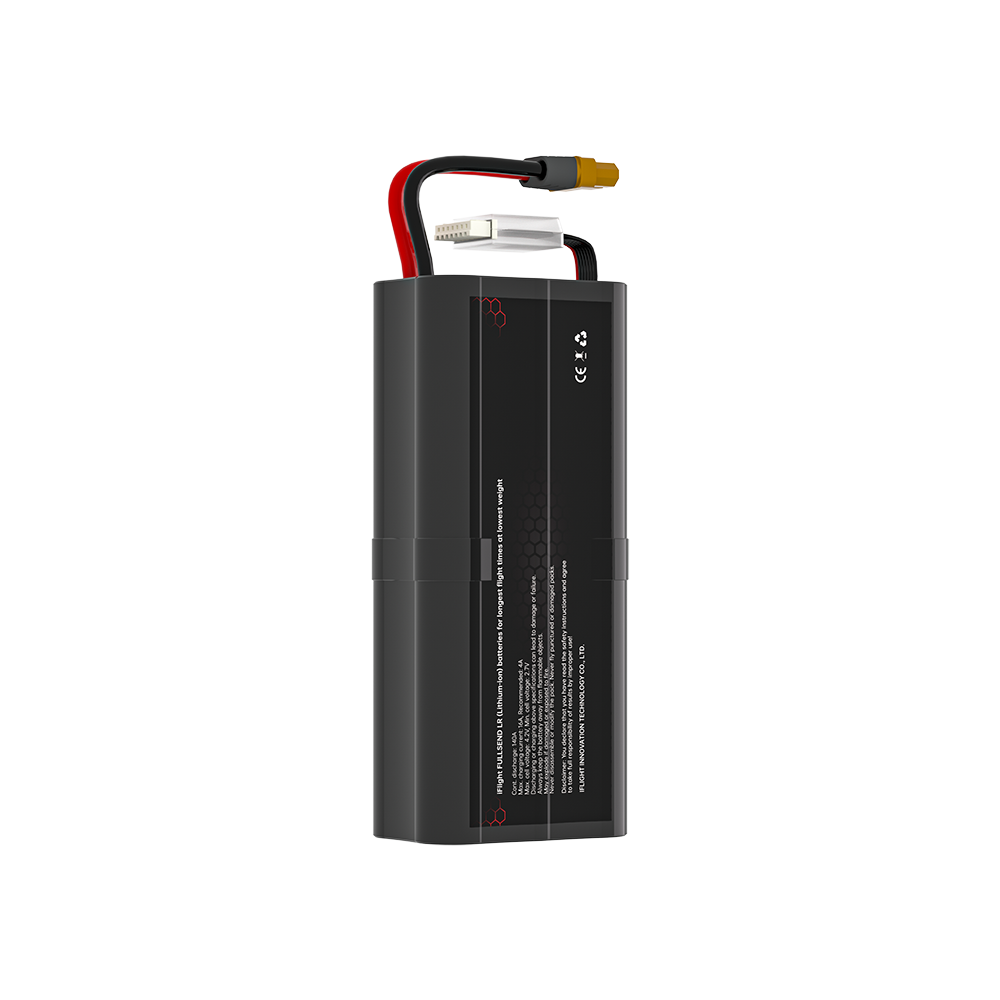

Capable of carrying efficient high capacity battery. explore the skies like never before with extended flight time. Recommended 6S 4000mAh Li-Ion above (slow cruising) or 6S 3300mAh lipo battery.

High-performance Core Electronics System

Equipped with racing-grade BLITZ Mini F7 FC and BLITZ E55R 4-IN-1 ESC for high-intensity flight maneuvers. It features larger MOS. offers a 65A max burst current. which enhances stability and improves heat dissipation.

Built-in high-precision GPS Module

The integrated high-precision GPS module with tpu cover prevents signal loss from external damage. reducing flyaway risks and enhancing device safety.

Specificaitons

Product Name: SH CineLR 7 6S O4 HD

Geometry: H-shaped

FC: BLITZ F722 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: DJI O4 Air Unit Pro

Frame: 334mm wheelbase

Motor: XING2 2809 1250KV motors

Prop: HQ 7.5X3X3 propellers

Weight: 770±5g(Without Battery)

Takeoff Weight: Approx. 1628±5g (incl. 21700 6S 8000mAH)

Dimensions (L×W×H): 285*196*45mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 18mins with 6S 3300mAh battery

Approx. 25mins with 6S 8000mAh battery

Recommended load: 800g

Max Wind Speed Resistance: Level 7

Operating Temperature Range: -20° to 40° C

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4. Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled. the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC). 8 km (CE). 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

FPV Radio

Product Name: Commando 8 ELRS V2 Radio

Weight: 310g (±10g)

Dimentions(LxWxH): L 190 x W 150 x H 51mm

Communication Frequency: 5.725-5.850 GHz

Transmission Power(EIRP):

2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

900MHz:FCC: 30 dBm; CE: <14 dBm; SRRC: <19 dBm

Operating Current/Volts: 0.6 A @ 7.6 V

Charging Time: 1 hour and 30 mini

Operating Time: Approx. 8 hours

Operating Temperature Range: 0°C to 40°C（32°F to 104°F）

Charging Temperature Range: 5°C to 40°C（41°F to 104°F）

FPV Goggles

Product Name: DJI Goggles 3

Weight: Approx. 470 g (battery included)

Dimensions (L×W×H): With antennas folded: 170×109×112 mm (L×W×H)

With antennas unfolded: 205×109×112 mm (L×W×H)

Screen Size (single screen): 0.49 inch

Resolution (single screen): 1920×1080

Refresh Rate: Up to 100 Hz

Interpupillary Distance Range: 56-72 mm

Diopter Adjustment Range: -6.0 D to +2.0 D

FOV (single screen): 44°

Communication Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmission Power (EIRP):

2.4 GHz:< 33 dBm (FCC)< 20 dBm (CE/SRRC/MIC)

5.1 GHz:< 23 dBm (CE)

5.8 GHz:< 33 dBm (FCC)< 30 dBm (SRRC)< 14 dBm (CE)

Max Video Transmission Bitrate: 60 Mbps

Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

Battery Voltage: 5.6-8.4 V

Supported SD Cards: microSD (up to 512 GB)

Packing List

1 x SH CineLR 7 6S O4 HD

1 x Commando 8 ELRS Radio

1 x DJI Goggles 3

1 x Battery pad

2 x 7.5 inch Prop(Pairs)

2 x Battery strap

1 x Screw bag

Important

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
