Taurus X8 Pro Max 8S HD Cinelifter

Take a Closer Look

•


  Max Power. Max Thrill

  Defining a new standard for flagship FPV cinelifter

•


  Powerful Performance

  Equipped with 11-inch Propellers + 8 3616 Cinelifter Motors

•


  All-scenario Efficient Operating System

  Up to15 minutes of hover time without payload with dual 8S 5600mAh batteries

•


  Outstanding Electronic Systems

  Equipped with the BLITZ H7 Pro flagship flight controller. featuring powerful computing capabilities

•


  High Redundancy Power System

  A minimum takeoff throttle of 29%

  Up to 170 km/h flight speed with 3kg payload

•


  High Payload Capacity

  Up to 4.5kg payload capacity. support carrying Cinema Cameras and Stabilizer for dual operator

Overview

In the Box

• Taurus X8 Pro Max

  x 1

• HQ 11X7.5X3 Propeller

  x 4 pairs

• Fullsend X 8S 5600mAh Battery

  x 2

• 5.8G SMA Antenna

  x 2

• Battery Strap

  x 8

• XT90 Male to XT60 Female Adapter Wire

  x 1

• Manual Instruction

  x 1

• Aluminum Case

  x 1

• Tools

  x 1

• Lading Pad

  x 1

Description

Introducing the Taurus X8 Pro Max. a revolutionary cinelifter FPV that takes professional filmmaking to new heights. Taurus X8 Pro Max adopts an integrated design and aerodynamic low-drag structure. with a powerful flight system and extended flight time. providing a professional and stable flying platform for filmmakers.

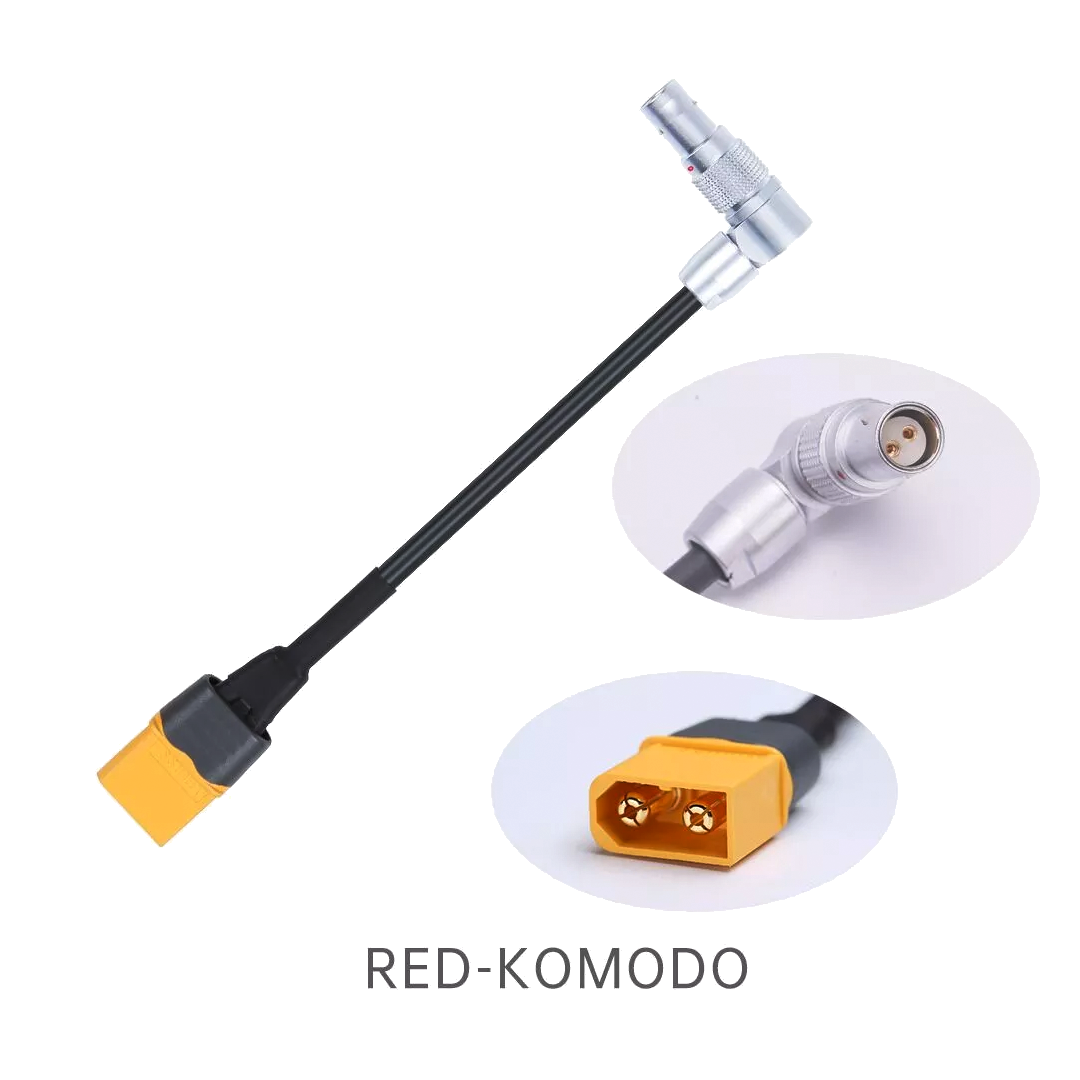

4.5kg maximum payload for a variety of top-mounted cameras and the ability to fine-adjust the stable mount for a perfectly balanced COG. The Taurus X8 Pro Max can effortlessly support carrying Heavy Cameras such as the RED KOMODO 6K. or even with DJI RS series gimbals for dual operator. ensuring strong compatibility and flexibility options for high-quality film shooting.

Unleash your creativity with the Taurus X8 Pro Max. Imagine soaring over breathtaking landscapes. chasing high-speed subjects. and achieving shots that were once unattainable. With its stability. reliability. and professional-grade features. the Taurus X8 Pro Max is designed to meet all the needs of professional filmmakers.

Changelog

April 9. 2025 : Video Transmission updated from DJI O3 Air Unit to DJI O4 Air Unit Pro.

Highlights

Integrated Design. Aerodynamic Low-drag Structure

The molded carbon tube curved arms feature a more integrated design and aerodynamic low-drag structure. Moreover. the up-swept arms bring the COG (Center of Gravity) inline with the props for better flight performance and stability. CNC connections to eliminate arm slack and avoid flight issues caused by resonance while keeping the rigidity and stiffness;

The motor wires and indicator lights are hidden inside the arm to make it compact and safe.

Strategic airflow side panels to keep your components cool and clean . Additionally. the O4 Air Unit features an aluminum heatsink and fan assembly installed atop it to prevent overheating. even in the most extreme desert conditions. instilling confidence in operation.

High Redundancy Power System

Equipped with 8 3616 cinelifter motors and 11-inch propellers power combo delivers extreme lift and flight performance. with a minimum hovering throttle of 29%. bringing you the ultimate flying experience.

With its high redundancy power system. the Taurus X8 Pro Max can reach up to 170 km/h flight speed with 3kg payload. perfect for high-speed car chase scenes and other shooting needs. enhancing the thrill and immersion of every scene it captures.

High Integration Electronic Systems

Powerful integrated circuit design. featuring 8 BLITZ 80A single X-Class grade ESCs in one Commander PCB with high capacitance. filtering and heat dissipation. and a high performance BLITZ H7 PRO flight controller for maximum reliability and power.

High Payload Capacity

4.5kg maximum payload for a variety of top-mounted cameras and the ability to fine-adjust the stable mount for a perfectly balanced COG. The Taurus X8 Pro Max can effortlessly support carrying Heavy Cameras such as the RED KOMODO 6K. or even with DJI RS series gimbals for dual operator. ensuring strong compatibility and flexibility options for high-quality film shooting.

Up To 15min Flight Time. Quick Release Battery System

Dual 8S 5600mAh batteries provide a total of 8S 11200mAh to achieve up to 15min flight time without payload. and 7min flight time with 3kg payload. significantly increase your creative time.

Featuring a seamlessly integrated quick-release battery system. the Taurus X8 Pro Max optimizes efficiency in demanding filming environments. This swift battery swap capability enables users to return to flight in seconds. enhancing productivity.

Upgraded Power BEC with Built-in Dual Switch Buttons

This industrial-grade fully isolated BEC module supports up to 15V voltage input. and also achieves 100% isolated short-circuit protection. providing safe and stable power to the camera and gimbal.

The dual switch buttons can power on the drone or camera individually. Pressing the button of the drone allows you to check the power supply or power the drone. Pressing the camera button to enable or disable the camera power.

Adjustable Camera Mount

The adjustable CNC aluminum camera mount offers angles from 0 to 45 degrees and can be safely secured for reproducible outcomes.

The silicon-ball dampened carbon camera base is decoupled from the rest of the frame to reduce the amount of vibration generated by motors and propellers. resulting in a clean log and low noise floor.

More Details

The landing light lights up at the bottom during takeoff. improving visibility and safety during flight with an on/off button.

GPS Pre-Installed helps you find your way back. and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). New foldable GPS mount design for faster satellite acquisition and more reliable stability.

The bottom has reserved openings for flight controller and receiver maintenance. allowing quick access for maintenance in just a few simple steps. saving time and effort.

It comes with an aluminum carrying case and custom eva interior to keep your equipment organised and protected when transporting.

Specificaiton

Product Name: Taurus X8 Pro Max O4 8S

FC: BLITZ H7 Pro Flight Controller

ESC: BLITZ E80 Single ESC(with CNC Alum Cover)

Video Transmission: DJI O4 AIR Unit Pro

Frame: 610mm wheelbase

Motor: XING2 3616 760KV motors

Prop: HQ 11*7.5*3 propellers

Weight: 3855±20g (Without cinema camera)

Takeoff Weight: Approx. 6160±20g (With 2*8S 5600mAh Battery)

Dimensions (L×W×H): 587×411×65 mm

Max Speed: 170 km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 14 mins with No Load and 2*8S 5600mAh battery

Approx. 9.3 mins with 2KG load and 2*8S 5600mAh battery

Approx. 9.1 mins with 3KG Load and 2*8S 5600mAh battery

Max Flight Distance: 5 km

Max Wind Speed Resistance: Level 8

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4. Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled. the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC). 8 km (CE). 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Packing List

1 x Taurus X8 Pro Max O4 BNF

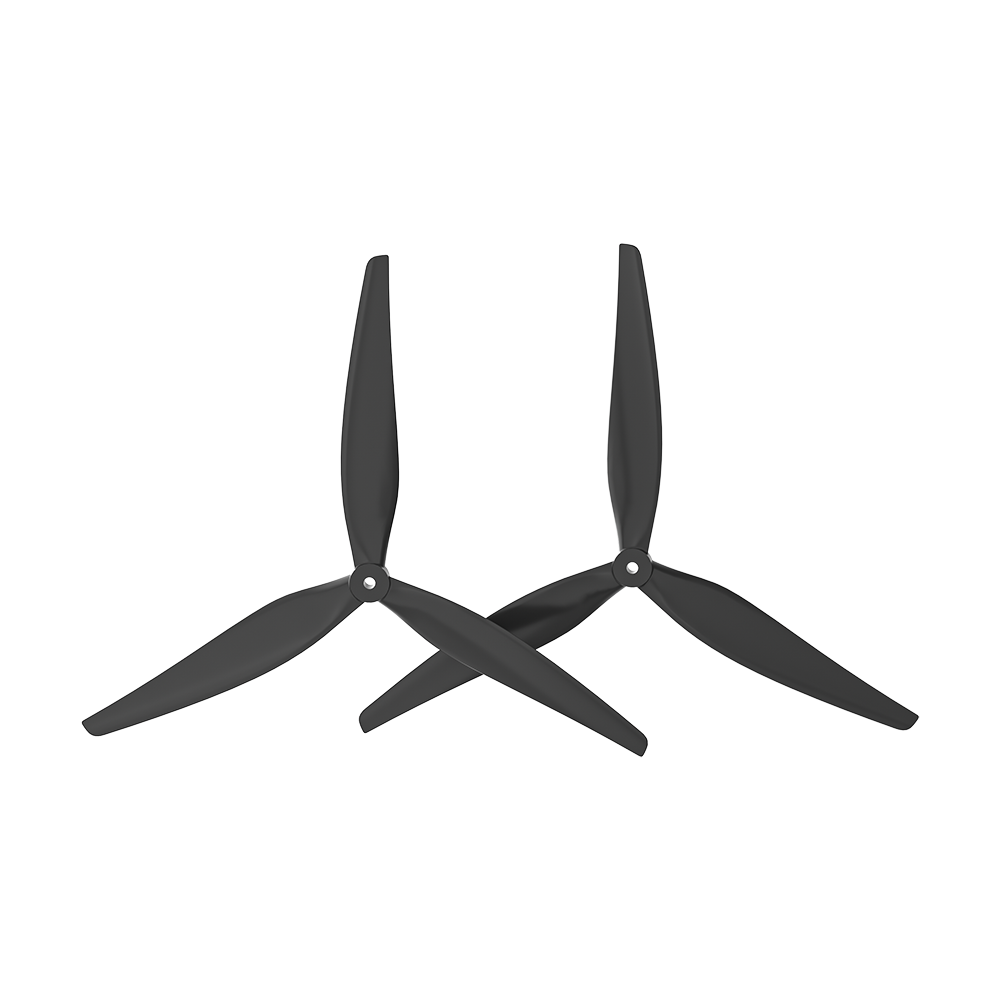

4 x HQ 11X7.5X3 CW propeller

4 x HQ 11X7.5X3 CCW propeller

2 x Albatross LHCP 5.8GHz SMA FPV Antenna V2

1 x XT90 Male to XT60 Female Adapter Wire

2 x 20*400mm Battery Strap

4 x 20*500mm Battery Strap

1 x Aluminum Case

1 x Lading Pad

2 x Fullsend X 8S 5600mAh Battery

1 x Prop Wrench
