Taurus X8 Pro O3 8S HD Cinelifter

In the Box

• Taurus X8 Pro O3 Cinelifter

  x 1

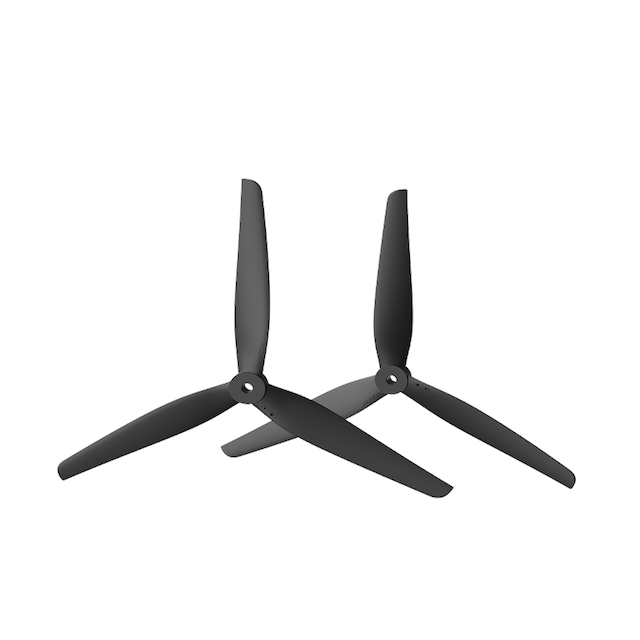

• HQ 8X4X3 Propeller

  x 8

• Reinforcement arm

  x 2

• 5.8G SMA Antenna

  x 2

• Battery Strap

  x 2

• XT90 Male to XT60 Female Adapter Wire

  x 1

• XT60 Male to XT90 Female Series Cable

  x 1

• Tools

  x 1

• Manual Instruction

  x 1

Description

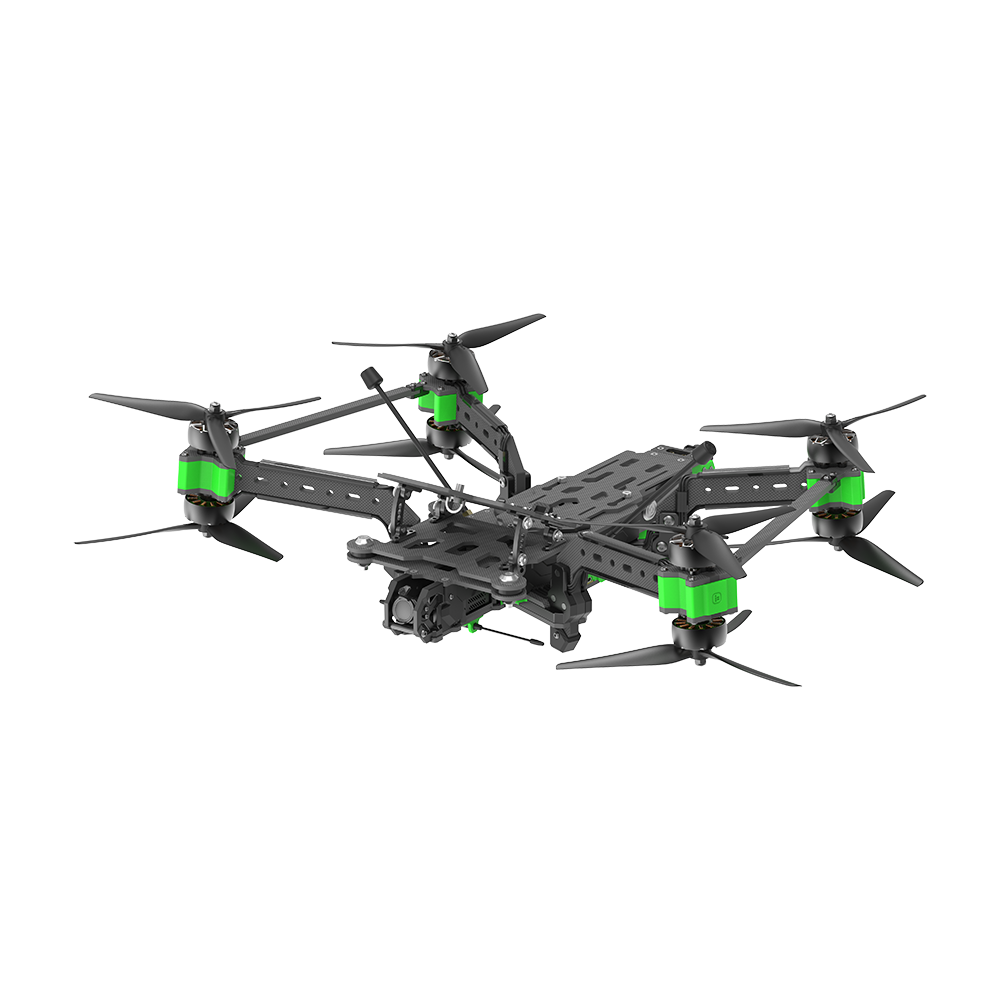

Let’s introduce our new iFlight Taurus X8 Pro O3 BNF！

Engineered with professionals for professionals. a BNF that’s aimed for carrying big payloads offering a soft-damped universal platform for DSLR or cinema cameras (Red Komodo. Zcam. BMPCC. etc) featuring DJI’s FPV HD transmission system. 8-single X-Class grade ESCs for maximum reliability and power. Redundancy is a big safety factor when carrying expensive cinema gear. Even in case of an overload or failure. the remaining ESCs and motors will be able to carry your gear back to you. In case you get troubles with signal interference or radio signal loss the GPS rescue feature will automatically take over control. climb to max flight altitude. fly back in a straight line. and descend towards your liftoff location until the signal transmission is regained (no automated landing). The integrated TPU landing gear provides sufficient height for most terrain and offers some protection on harder landings.

2kg maximum payload for a variety of top-mounted cameras and the ability to fine-adjust the stable mount for a perfectly balanced CG (Center of Gravity). The top mount 8S battery acts as a power source as well as a counterweight for most common cinema camera weights which can be easily exchanged with our iFlight battery quick-release mounting system. The adjustable CNC aluminum camera mount offers angles from 5 to 35 degrees and can be safely secured for reproducible outcomes. No jello. no jitter. no problem; Our silicon-ball dampened carbon camera base is decoupled from the rest of the frame to reduce the amount of vibration generated by motors and propellers. For the perfect cinematic shot. we recommend additional software stabilization in the post (Reelsteady. Gyroflow. etc.) or a hardware module (for example SteadXP).

Highlights

Big size XING2 3314 // The power motors with extreme lift and flight performance

8S power system // More power and speed

8x single X-Class grade ESC motor drivers for more reliability

Redundant iFlight ESC Commander PCB // Power distribution board with high capacitance. filtering and heat dissipation

GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)

DJI O3 HD Air Unit Low-Latency Digital Transmission// 4K Stabilized Video with 155° Ultra-Wide Angle

Secured Battery Plug with Anti-Spark Filter

Universal camera mount and accessories for a wide range of cameras to install

Changelog

June 12. 2023 : XING2 3110 900KV motor color changed to black.

February 17. 2024 : The motor was changed from XING2 3110 900KV motor to XING2 3314 900KV motor.

May 8. 2024 : The Albatross antenna is available in two versions. and will be shipped randomly.

Specification

Product Name: Taurus X8 Pro O3

FC: BLITZ F7 Pro Flight Controller

ESC: BLITZ E80 Single ESC (with CNC Alum Cover)

Video Transmission: DJI O3 AIR Unit

Diagonal Distance: 464±2 mm(wheelbase)

Motor: XING2 3314 900KV motors

Prop: HQ 8*4*3 propellers

Weight: 2356±10g

Takeoff Weight: Approx. 3494±20g (With 8S 5000mAh Battery)

Dimensions (L×W×H): 428×249×74 mm

Max Speed: 150 km/h

Maximum Takeoff Altitude: 3200 m

Max Hover Time: Approx. 5 mins with 8S 5000mAh battery and 1.5KG load.

Max Wind Speed Resistance: Level 8

Operating Temperature Range：-10° to 40° C (14° to 104° F)

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: DJI O3 Air Unit

Weight: Approx. 36.4 g（headband included）

Dimensions (L×W×H): L32.5 * W20.5 * H 14.5mm

Refresh Rate: Up to 40 MHz

FOV (single screen): 155°

Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC). 2 km (CE). 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Packing List

1 x Pre-built and Tested Taurus X8 Pro O3 BNF

8 x HQ 8X4X3 CW propeller + 8 x HQ 8X4X3 CCW propeller (Color may vary)

2 x Albatross LHCP 5.8GHz SMA FPV Antenna

1 x XT90 Male to XT60 Female Adapter Wire

2 x iFlight Lipo Strap 20*400mm (Black)

2 x iFlight Lipo Strap 20*500mm (Black)

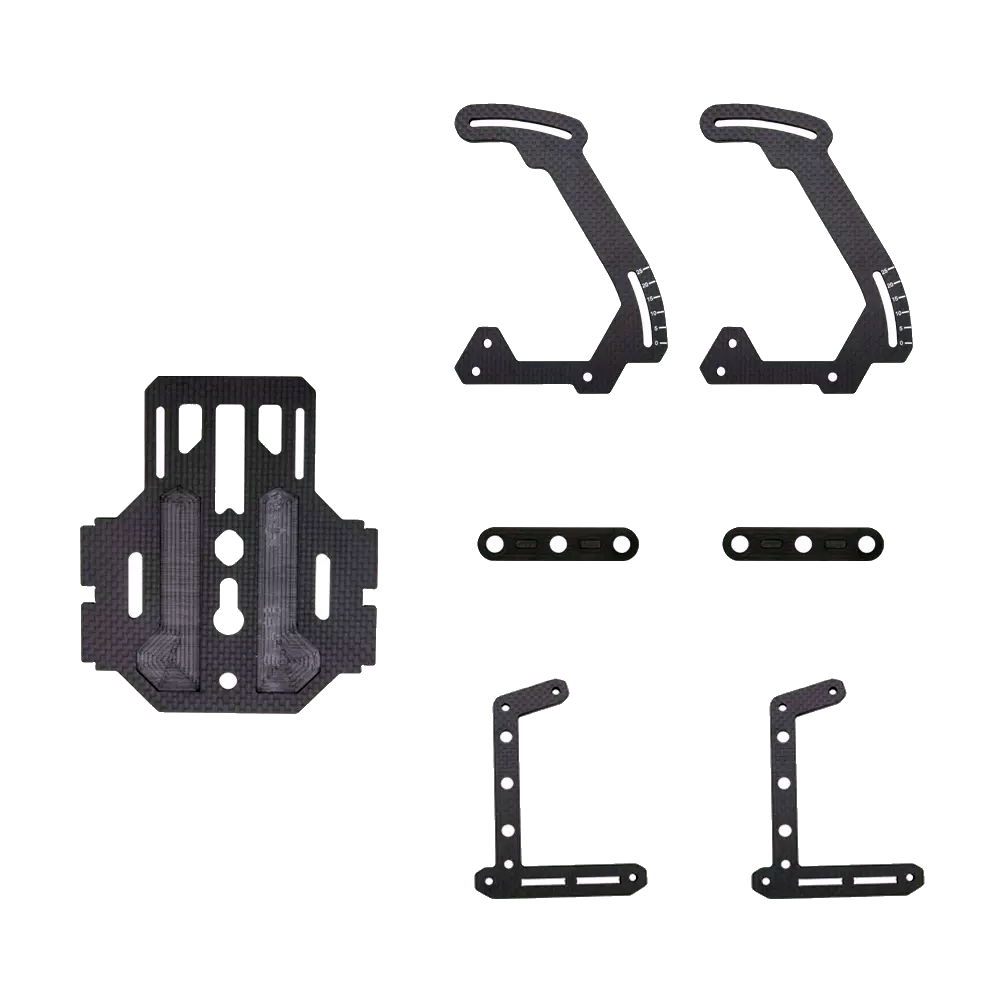

1 x CNC Aluminum alloy cam mount

1 x XT90 Smart Smoke Stopper

1 x Prop Wrench

Important

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
