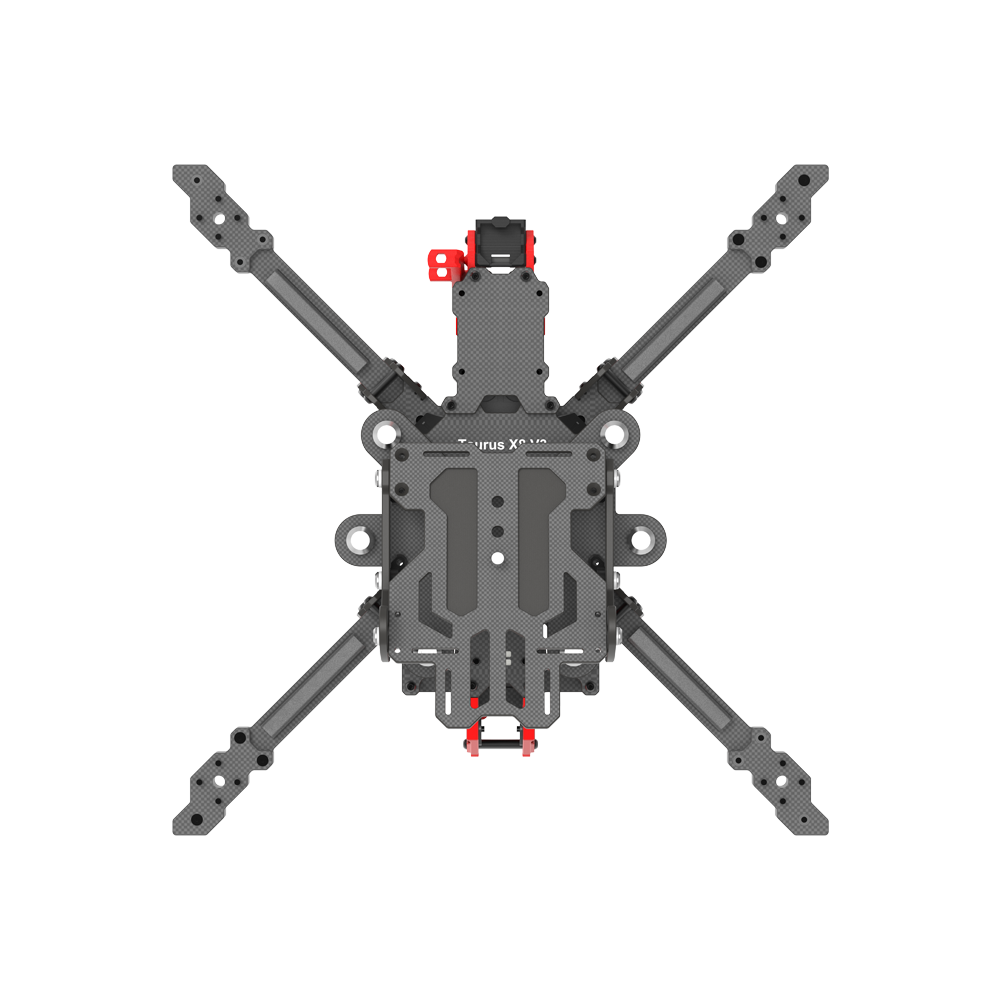

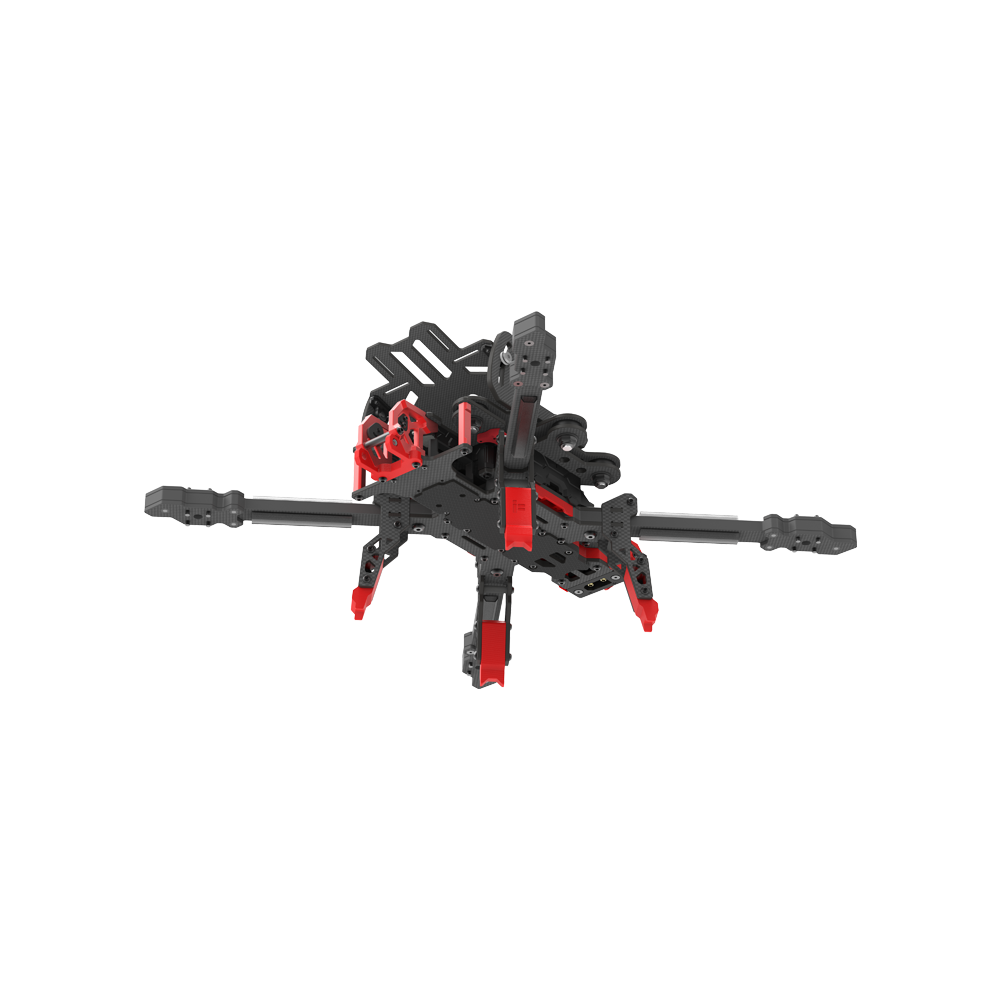

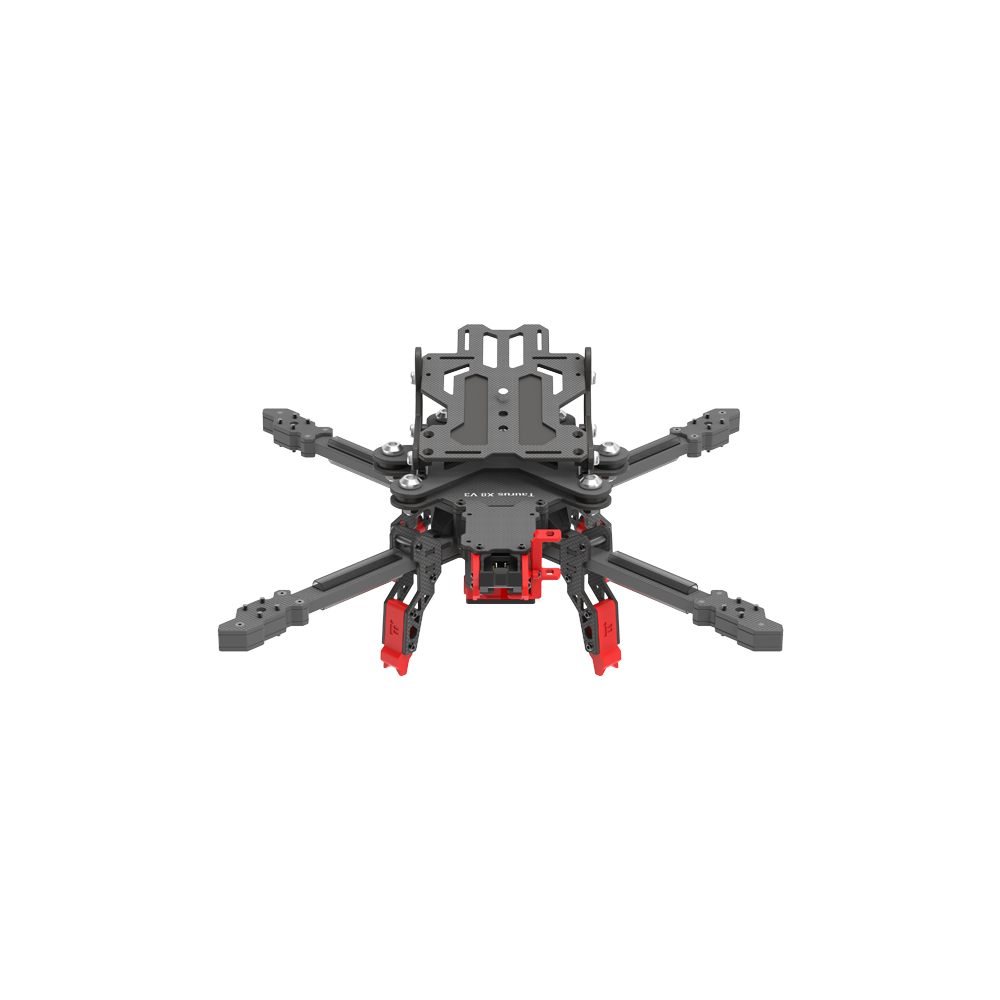

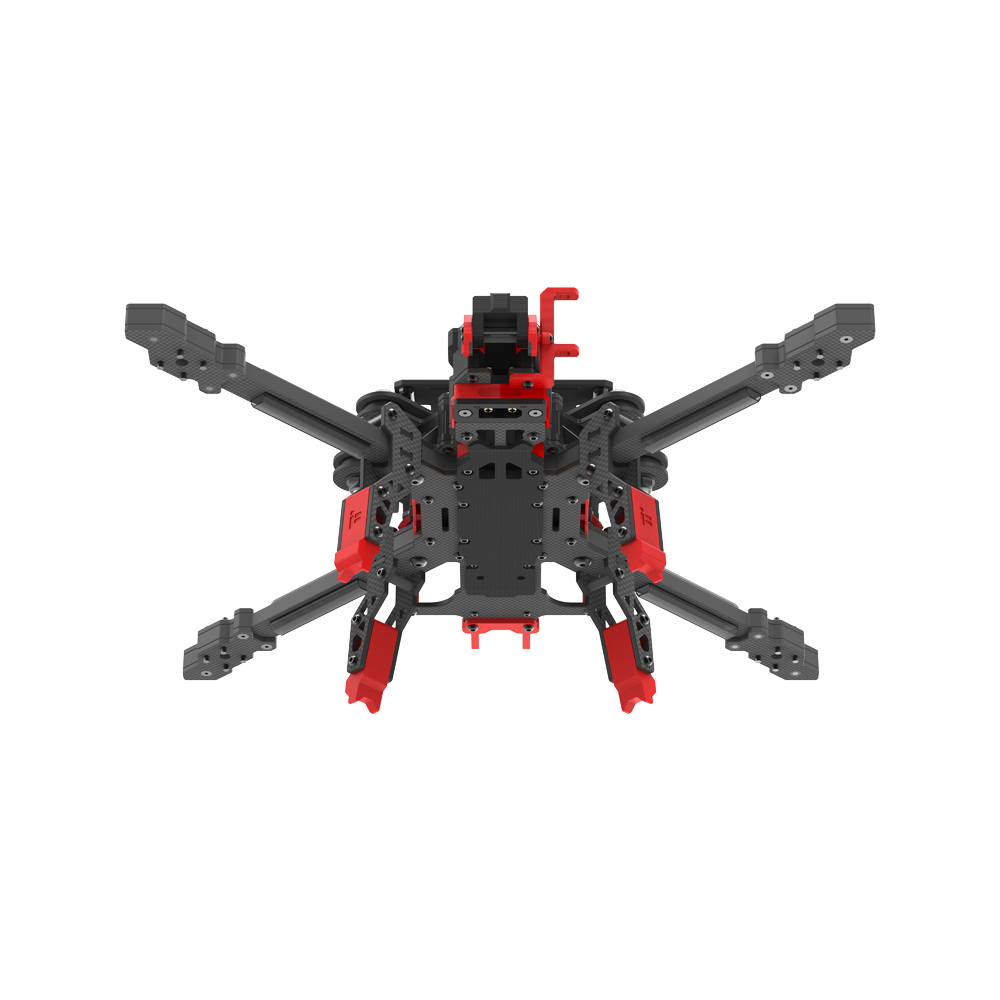

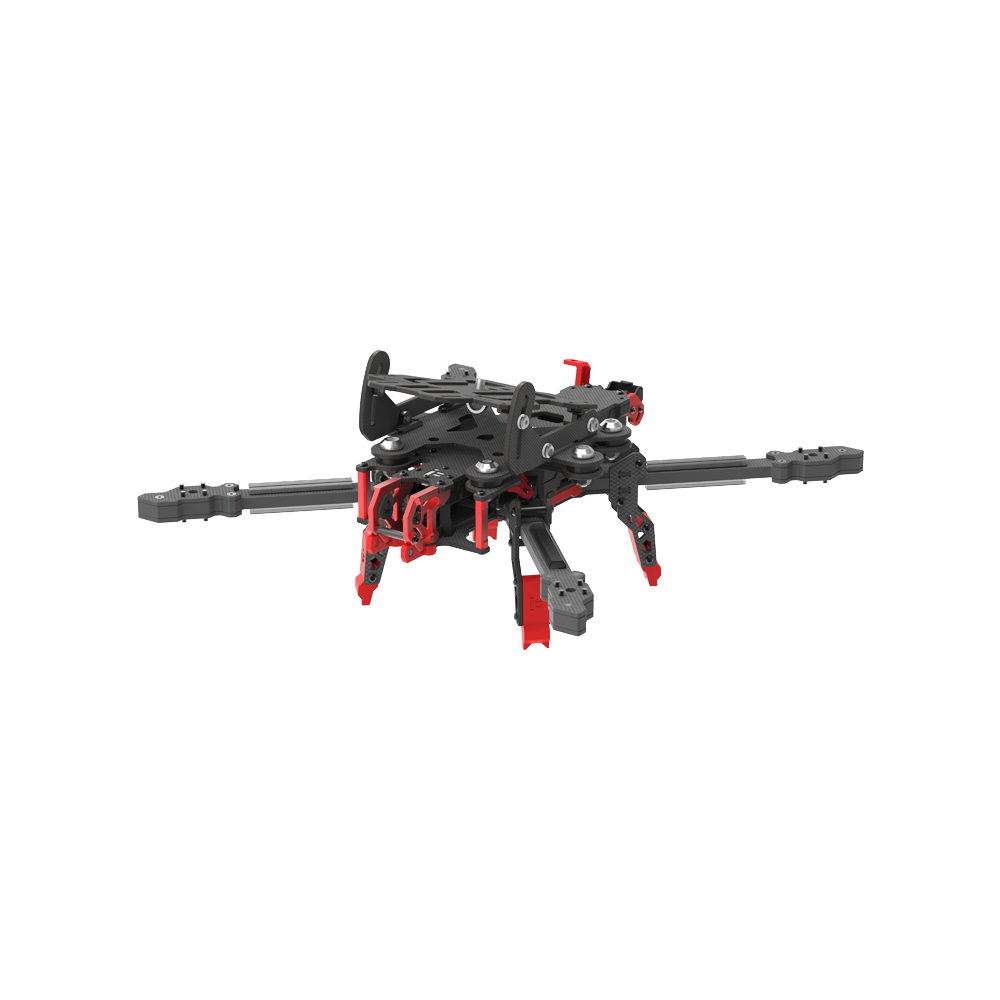

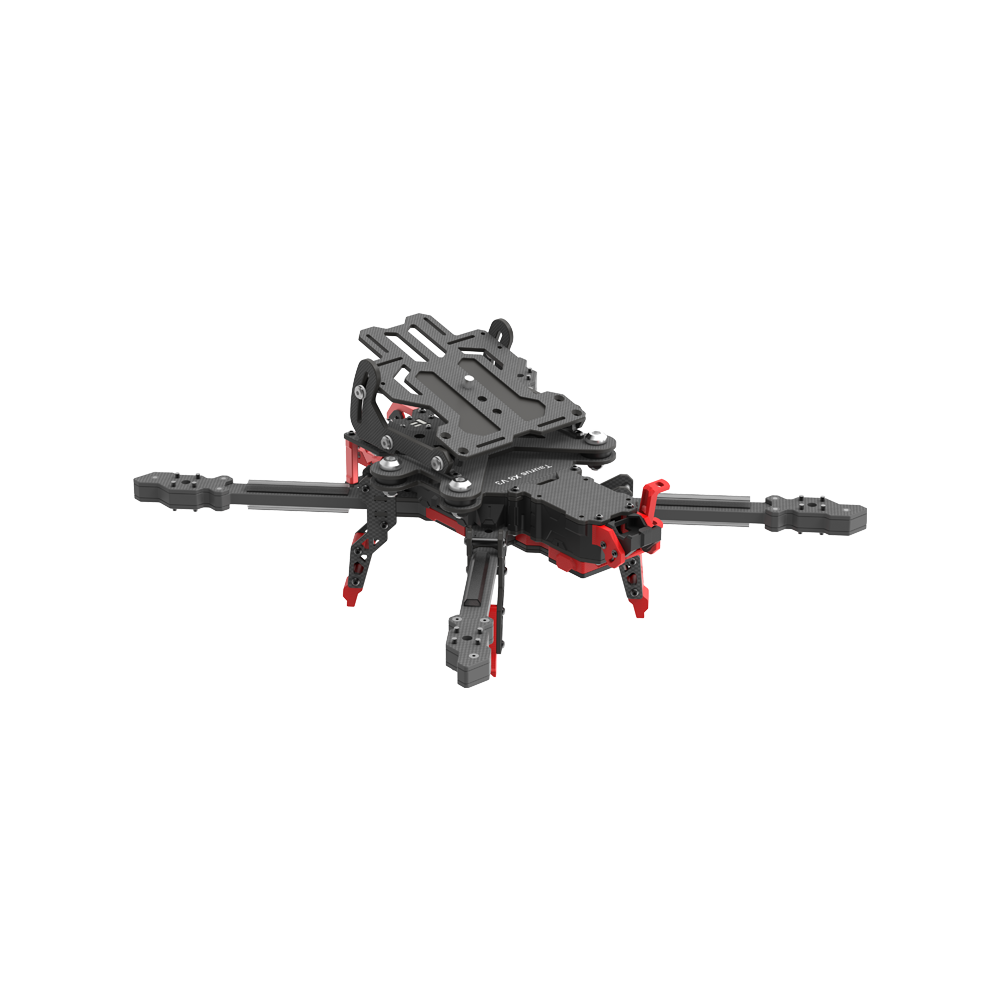

Taurus X8 V3 Frame Kit

In the Box

• Taurus X8 V3 Frame

  x 1

• 20x300mm Battery strap

  x 4

• 20x400mm Battery strap

  x 2

• 20x500mm Battery strap

  x 2

• Camera Lens Sponge

  x 1

• Battery pads

  x 2

• Camera mount side plates

  x 2

• Camera base plate

  x 1

• Tools(Set)

  x 1

Description

The Taurus X8 V3 BNF Cinelifter Frame Kit is aimed towards carrying big payloads. offering a soft-damped

universal platform for DSLR or cinema cameras (Red Komodo. Zcam. BMPCC. etc).

Features

Optimized CG through the adjustable camera and battery mount

Stable silicon-ball decoupled camera CNC mount

Redundant ESC and motor configuration

2kg max payload for various cinema and DSLR cameras

Lightweight Side Panels – Keep Your Rig Clean

Changelog

March 25. 2023: This Frame kit is compatible with the DJI O3 air unit.

Specifications

Product Name：Taurus V3 X8 HD Cinelifter Frame

Wheelbase: 320mm

Diagonal Distance：120 mm

Frame Dimension: L283*W393*H30 mm

Arm Thickness: 8mm

Bottom Plate Thickness: 3mm

Top Plate Thickness:3mm

Upper Plate Thickness: 3mm

Camera Plate Thickness: 3mm

Motor Mounting：19x19mm

VTX Mounting：30.5*30.5mm

Weight: 940grams (Included no TPU Parts)

Packing included

1 x Taurus V3 X8 HD Cinelifter Frame

2 x 20x300mm battery strap (Color May Vary)

2 x 20x400mm battery strap (Color May Vary)

2 x 20x500mm battery strap (Color May Vary)

1 x Aluminum Quick Release Camera Clamp

1 x Taurus X8 Hardware Accessories Kit

1 x CNC Aluminum Alloy Cam Mount

1 x DJI Air unit mount TPU

1 x 3d Printed Parts Kit

2 x Battery Pad

1 x LED mount

10 x Dampers

2 x Battery Anti-slip pads

Note

Due to manufacturing processes. the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
