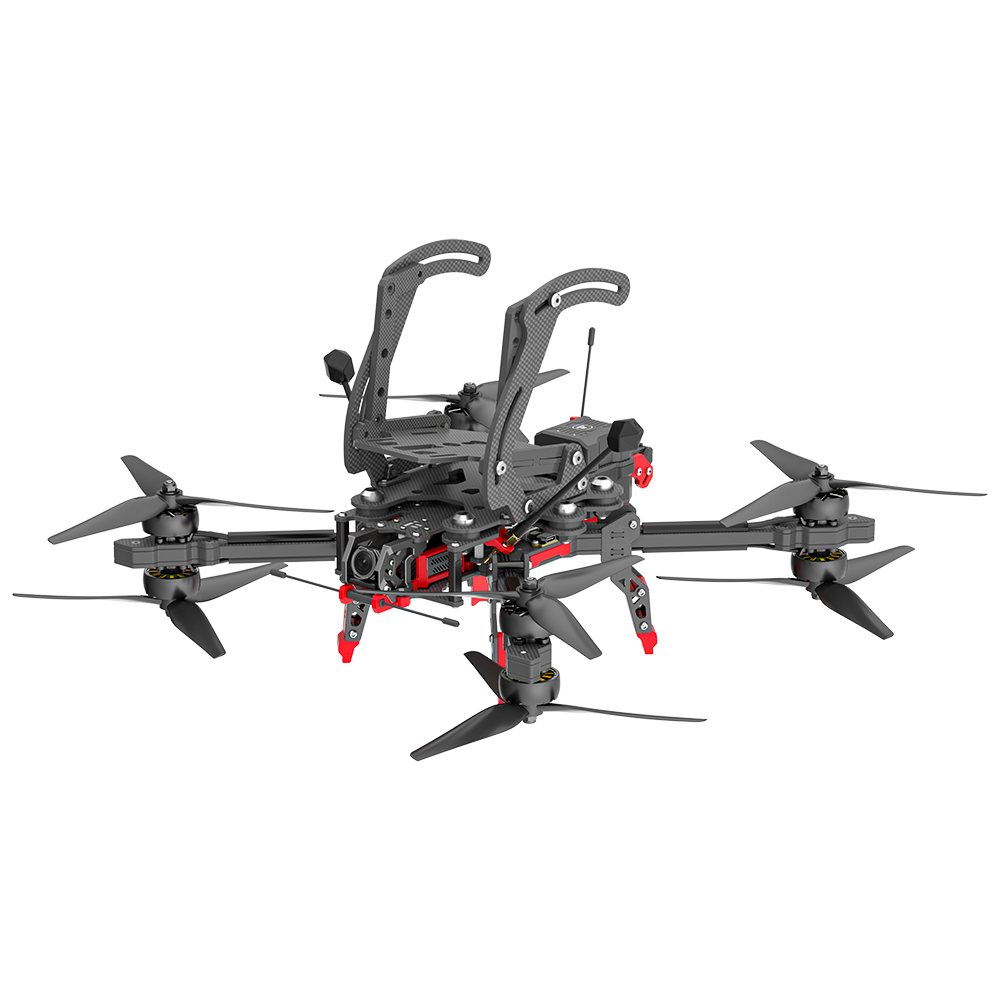

Taurus X8 V3 O4 6S HD Cinelifter

In the Box

• Taurus X8 V3 O3

  x 1

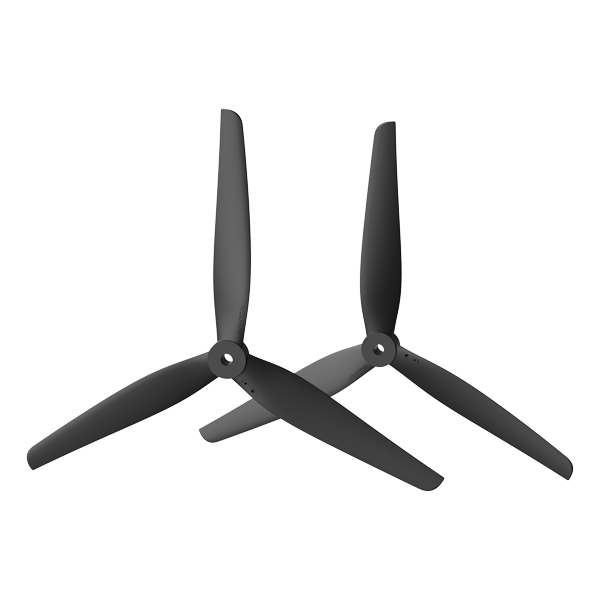

• HQ 8X4X3 Propeller

  x 8 pairs

• Camera Mount – Base

  x 1

• Battery Strap

  x 2

• XT90 Male to XT60 Female Adapter Wire

  x 1

• XT90-Smart-Smoke-Stopper

  x 1

• XT60 Female to XT30 Male Adapter Wire

  x 1

• Camera Lens Sponge

  x 1

• Antenna

  x 2

• Anti-slip Battery Pads

  x 1

• Tools

  x 1

• Manusal Instruction

  x 1

Description

Let’s introduce our new iFlight Taurus X8 V3 BNF. our heavy-duty gear designed to lift those big cameras!

Engineered by professionals for professionals. this BNF is aimed at carrying big payloads and offers a soft-damped universal platform for DSLR or cinema cameras (such as Red Komodo. Zcam. BMPCC. etc.) featuring DJI’s FPV HD transmission system. It has a redundant ESC and motor setup for maximum performance and safety. Even in the case of an overload or failure. one remaining ESC and four motors will be able to carry your expensive camera back to you. In case you experience signal interference. radio signal loss. or complete FPV transmission failure. the GPS rescue feature will automatically take over control. climb to the maximum flight altitude. and descend towards your liftoff location until the signal transmission is regained (no automated landing). The integrated TPU landing gear provides sufficient height for most terrains and offers some protection during harder landings.

It has a maximum payload of 2kg for a variety of top-mounted cameras and the ability to fine-adjust the stable mount for a perfectly balanced CG (Center of Gravity). The underslung battery acts as a power source as well as a counterweight to strategically slide the weight more front or back to counter camera lenses of different weights or lengths. The adjustable CNC aluminum mount offers angles from 5 to 35 degrees and can be safely secured for reproducible outcomes. No jello. no jitter. no problem; Our silicon-ball dampened carbon camera base is decoupled from the rest of the frame to reduce the amount of vibration generated by motors and propellers. For the perfect cinematic shot. we recommend additional software stabilization in post-production or a hardware module (such as SteadXP).

Highlights

Big size XING2 3110 // The power motors with extreme lift and flight performance

Redundant ESC and motor configuration

GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)

DJI O4 HD Air Unit Low-Latency Digital Transmission// 4K Stabilized Video with 155° Ultra-Wide Angle

Universal camera mount and accessories for a wide range of cameras to install

Changelog

June 12. 2023 : The standard battery is changed to Fullsend 5600mAh 95C battery.

May 8. 2024 : The Albatross antenna is available in two versions. and will be shipped randomly.

April 9. 2025 : Video Transmission updated from DJI O3 Air Unit to DJI O4 Air Unit Pro.

Specification

Product Name: Taurus X8 V3 O4

FC: BLITZ F7 Pro Flight Controller

ESC: BLITZ E80 2-8S 80A 4-IN-1 ESC(without CNC Alum Cover)

Video Transmission: DJI O4 AIR Unit Pro

Frame: 400mm wheelbase

Motor: XING2 3110 1250KV motors

Prop: HQ 8043 propellers

Weight: 1634±10g

Takeoff Weight: Approx. 2492±20g (With 6S 5600mAh Battery)

Dimensions (L×W×H): 283×283×112 mm

Diagonal Distance: 400 mm

Max Speed: 150 km/h (Manual Mode)

Maximum Takeoff Altitude: 3200 m

Max Hover Time: Approx. 5.5 mins with 2KG load and 6S 5600mAh battery

Max Flight Distance: 5 km

Max Wind Speed Resistance: Level 8

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4. Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled. the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC). 8 km (CE). 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Packing List

1 x Taurus X8 V3 BNF

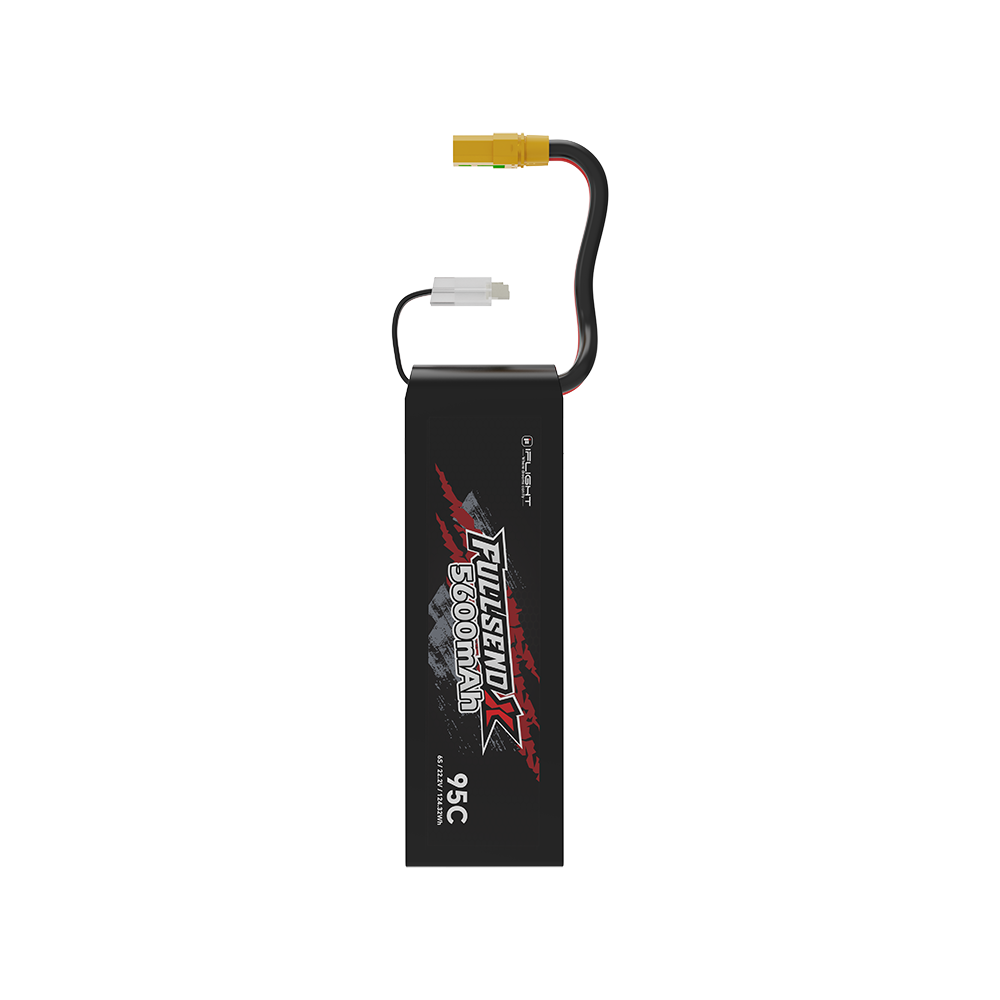

1 x Fullsend 5600mAh Battery

8 x HQ 8X4X3 CW propeller + 8 x HQ 8X4X3 CCW propeller (Color may vary)

2 x Albatross LHCP 5.8GHz SMA FPV Antenna

1 x XT90 Male to XT60 Female Adapter Wire

2 x iFlight Lipo Strap 20*400mm (Black)

2 x iFlight Lipo Strap 20*500mm (Black)

1 x CNC Aluminum alloy cam mount

1 x XT90 Smart Smoke Stopper

1 x Prop Wrench

Important

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment. please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

Tips: If you choose an aluminum case. we will pack the Taurus X8 Pro in the aluminum case for delivery.
